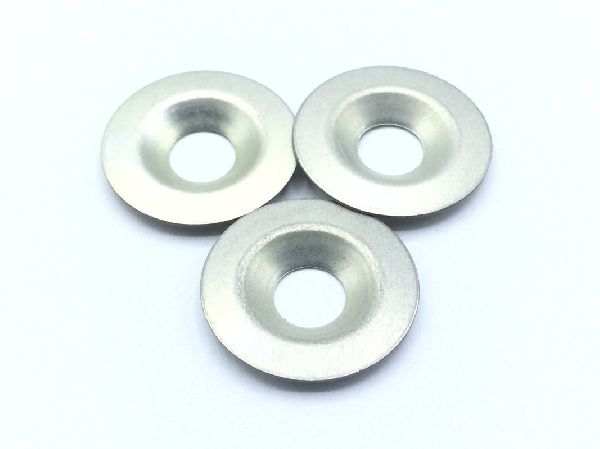

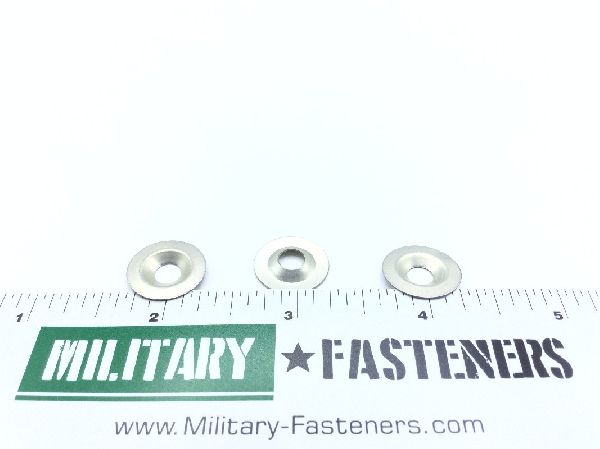

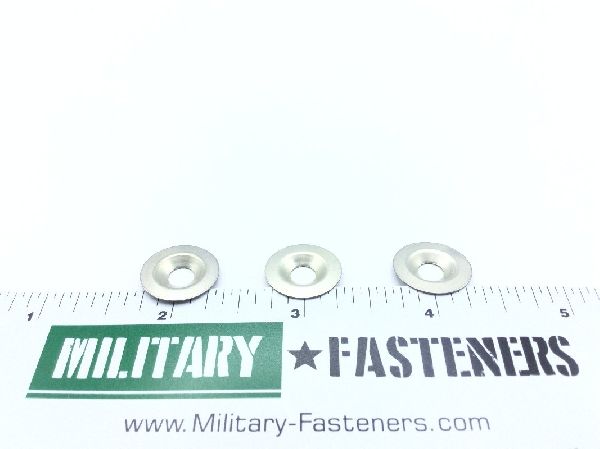

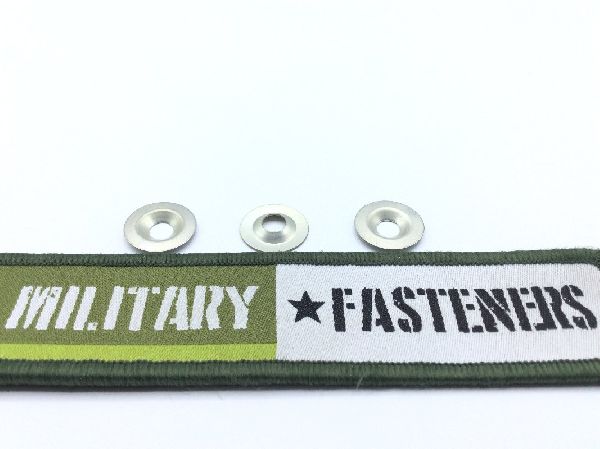

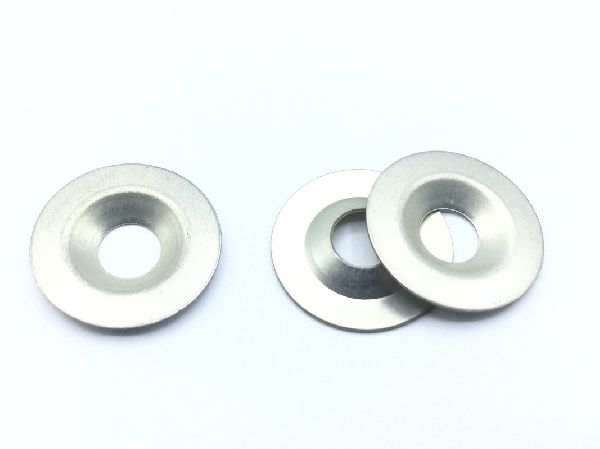

NAS1169DD10L Finishing Washer

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 2024

Surface Treatment

Mil-a-8625 military specification single treatment response

Heat Treatment: Natural aged cold worked or t-4 solution heat treated t-3 solution heat treated
Material Specification: Qq-a-250/5 federal specification single material response
Material Thickness: 0.016 inches
Outside Diameter: Between 0.620 inches and 0.645 inches
Overall Height: 0.099 inches
Recess Angle: Between 99.0 degrees and 103.0 degrees
Recess Diameter: Between 0.385 inches and 0.395 inches
Specification Data: 80205-nas1169 manufacturers specification
Style Designator: Finishing
Hole Diameter: Between 0.192 inches and 0.222 inches
