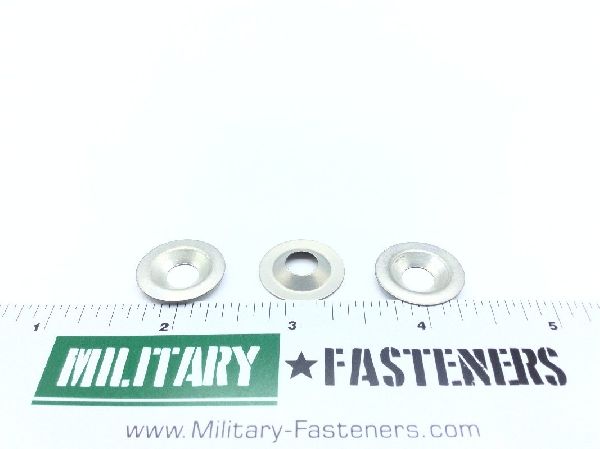

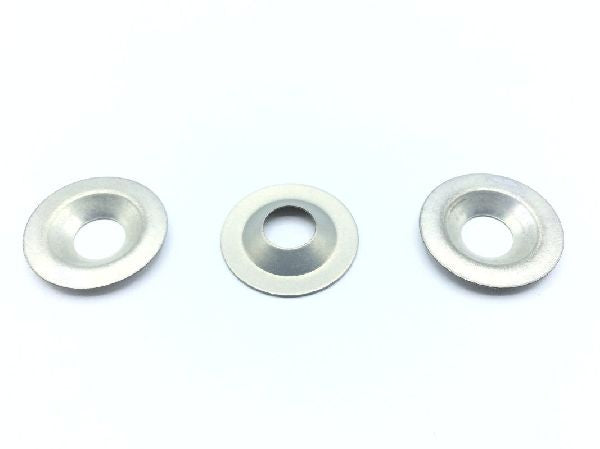

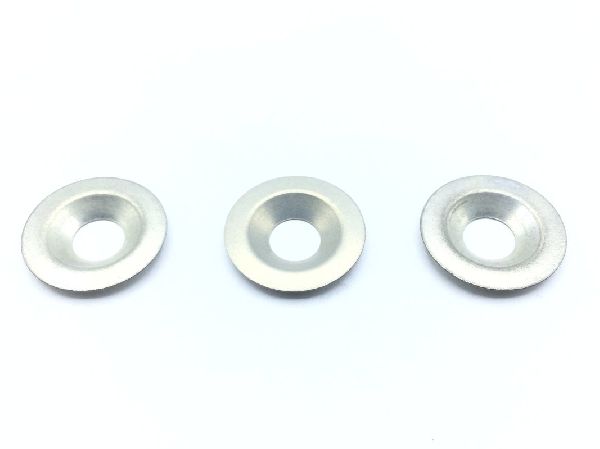

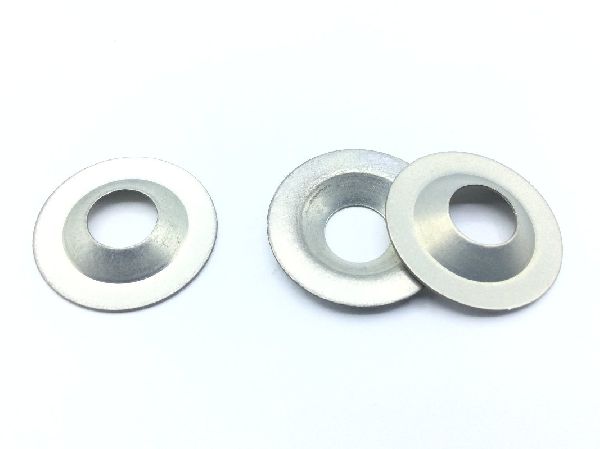

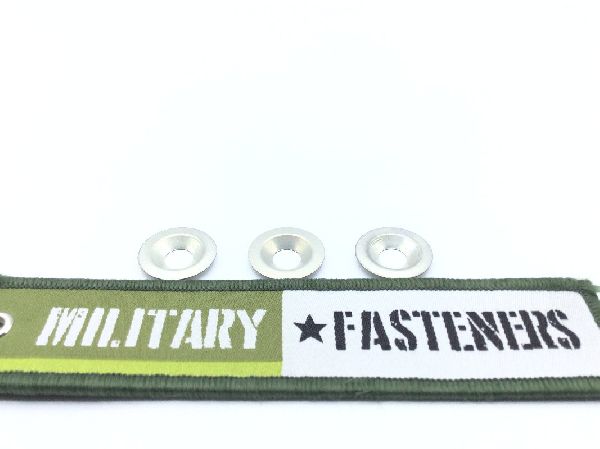

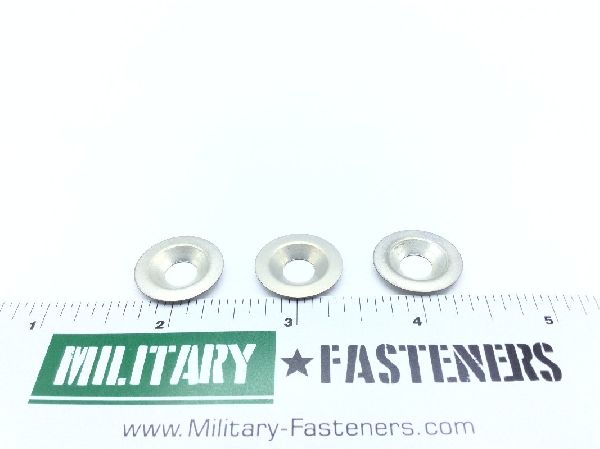

NAS1169DD416L Finishing Washer

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $0.48

Units per Pack 100

Price per Pack $48.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $48.00

Add item to quote

Material

Aluminum alloy 2024 or aluminum alloy 5052

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Material Specification: 0 federal specification 2nd material response t4 federal specification 1st material response and qq-a-250/8 t3 federal specification 1st material response or qq-a-250/5 qq-a-250/5
Material Thickness: 0.016 inches
Outside Diameter: Between 0.745 inches and 0.770 inches
Overall Height: 0.125 inches
Recess Angle: Between 99.0 degrees and 103.0 degrees
Recess Diameter: Between 0.507 inches and 0.517 inches
Special Features: Dyed orange color
Specification Data: 80205-nas1169 professional/industrial association standard
Style Designator: Finishing
Hole Diameter: Between 0.252 inches and 0.282 inches
