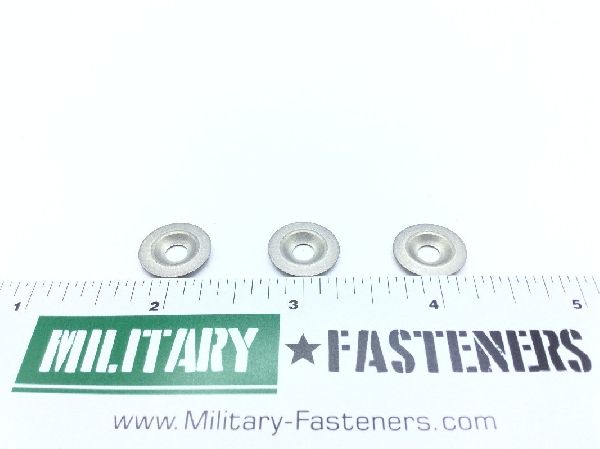

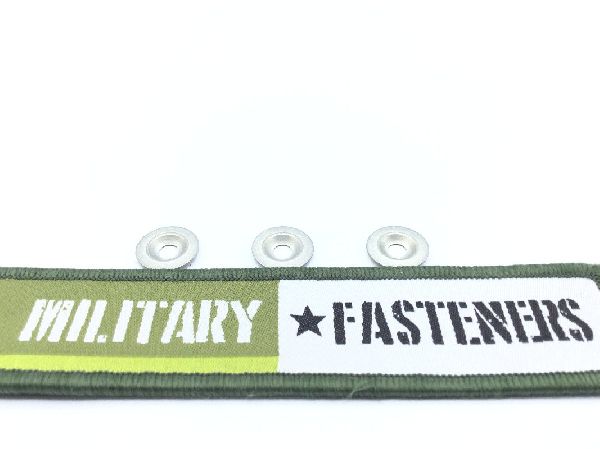

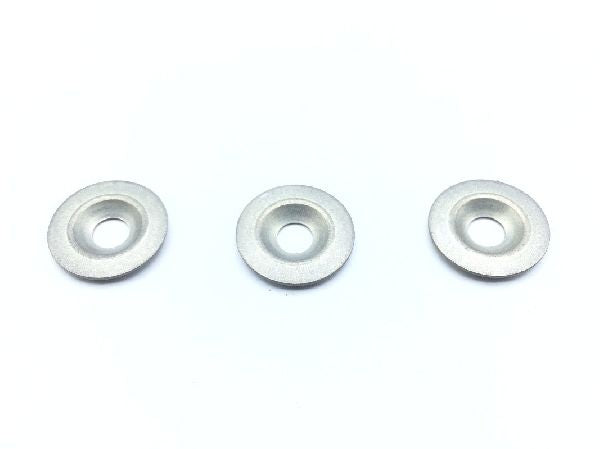

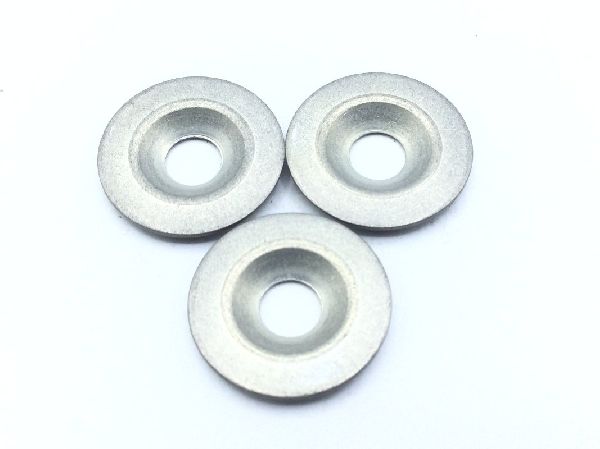

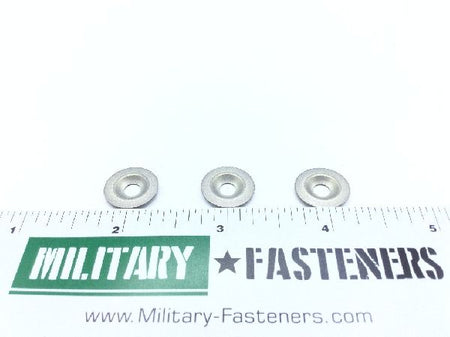

NAS1169DD8 Finishing Washer

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 2024

Surface Treatment

Mil-a-8625 military specification single treatment response

Material Specification: T4 federal specification single material response t3 federal specification single material response or qq-a-250/5 qq-a-250/5
Material Thickness: 0.025 inches
Outside Diameter: Between 0.557 inches and 0.582 inches
Overall Height: 0.094 inches
Recess Angle: Between 99.0 degrees and 103.0 degrees
Recess Diameter: Between 0.332 inches and 0.342 inches
Specification Data: 80205-nas1169 professional/industrial association standard
Style Designator: Finishing
Hole Diameter: Between 0.166 inches and 0.196 inches
