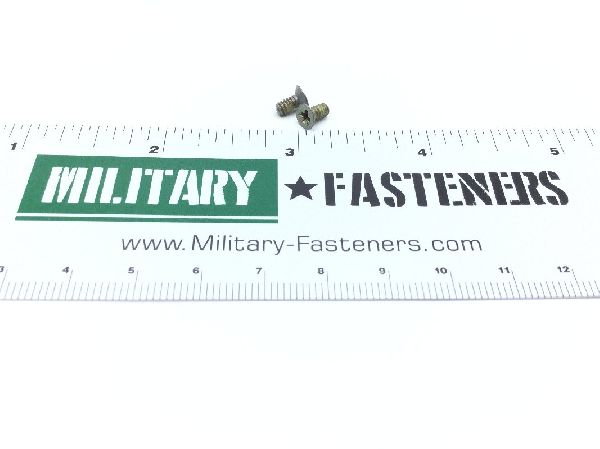

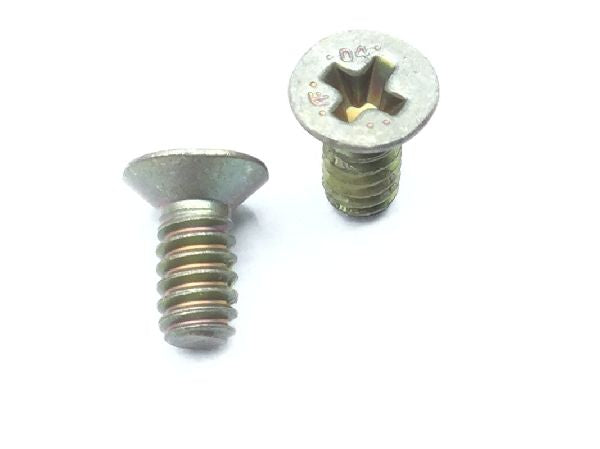

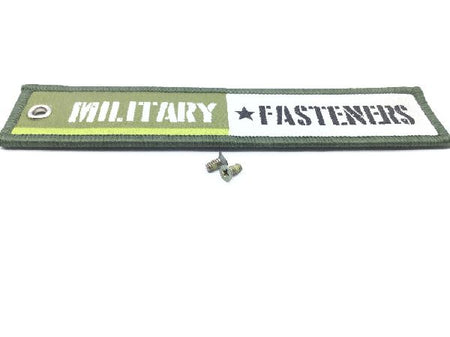

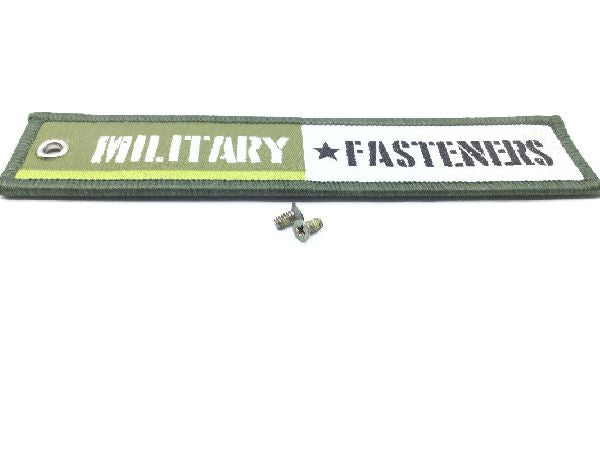

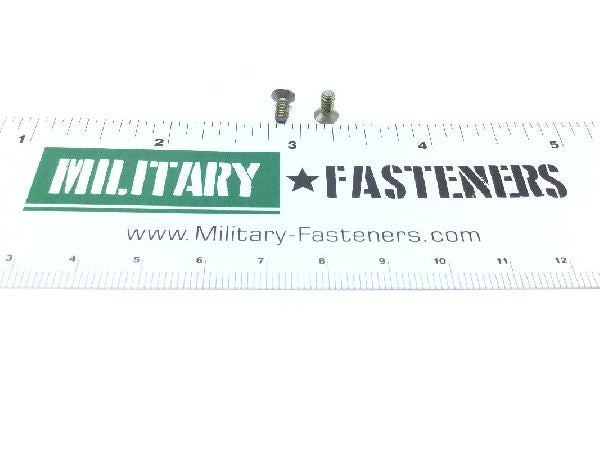

NAS1189-04P4 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.08

Units per Pack 25

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 4037

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.219 inches and 0.250 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Cross recess type 1
Material Specification: Ams 6300 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.124 inches and 0.205 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.177 inches and 0.225 inches
