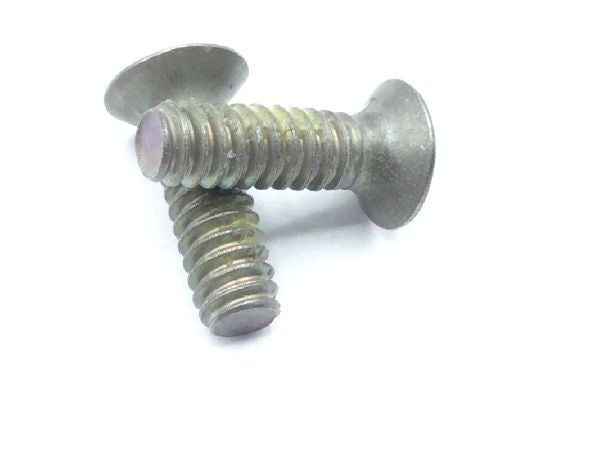

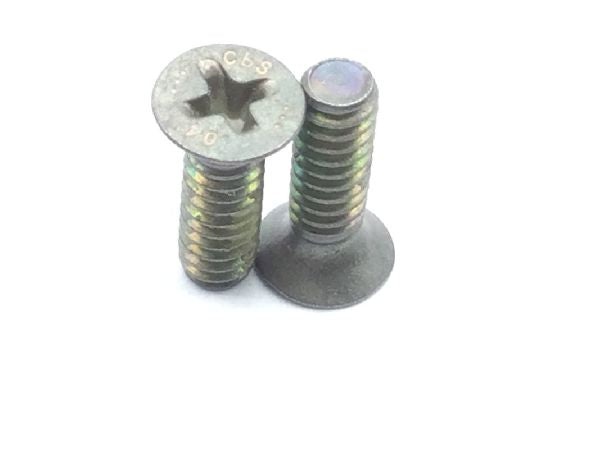

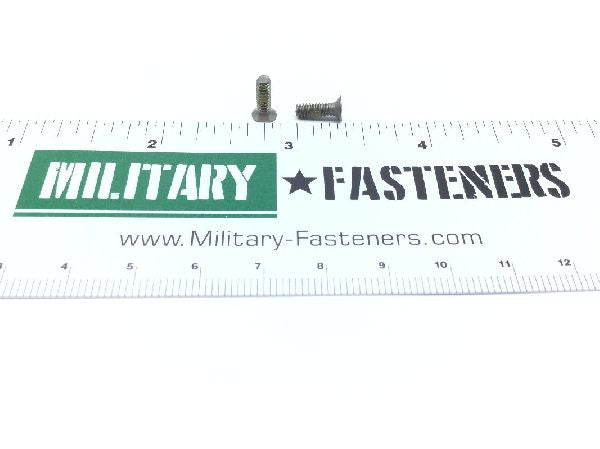

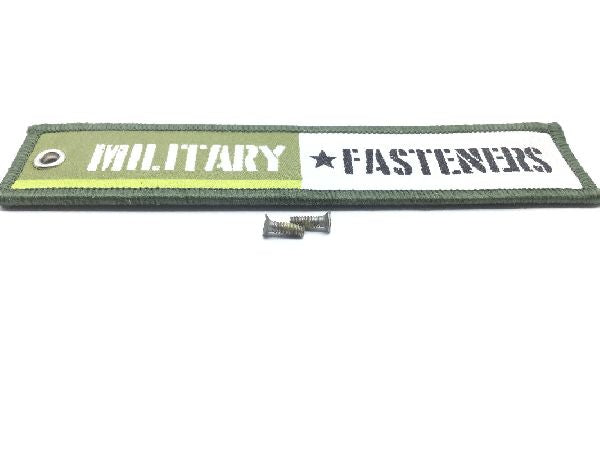

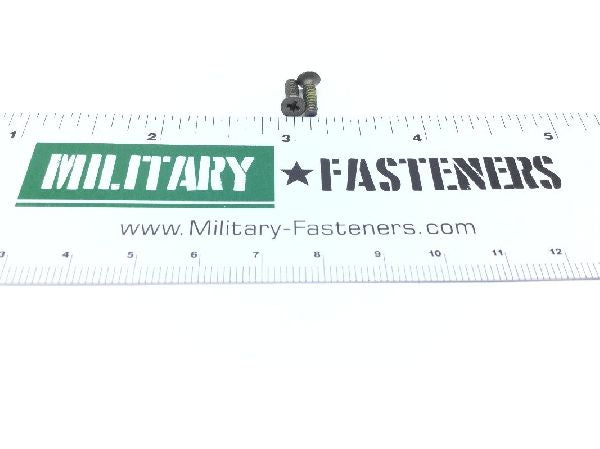

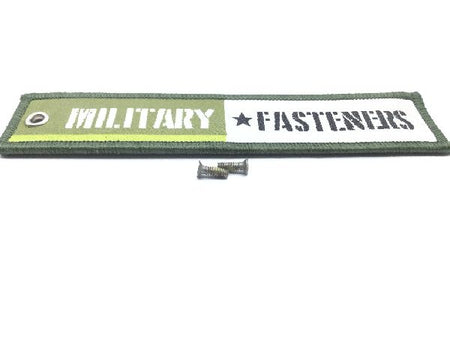

NAS1189-04P6 Machine Screw

Product Series: NAS
ECCN: 9A991
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Steel comp 4037

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.344 inches and 0.375 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Cross recess type 1
Material Specification: Ams 6300 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.249 inches and 0.330 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.177 inches and 0.225 inches
