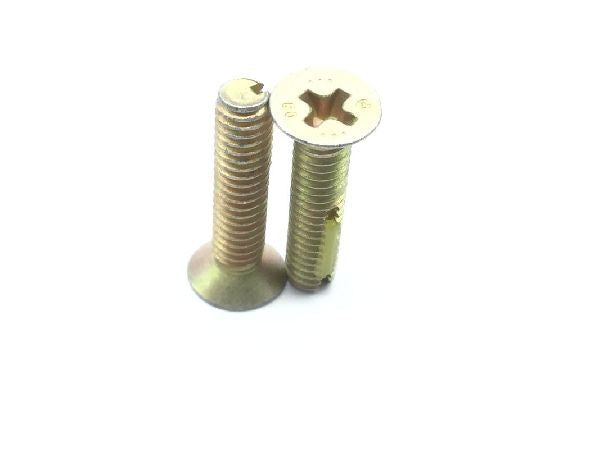

NAS1189-08P12L Socket Head Cap Screw

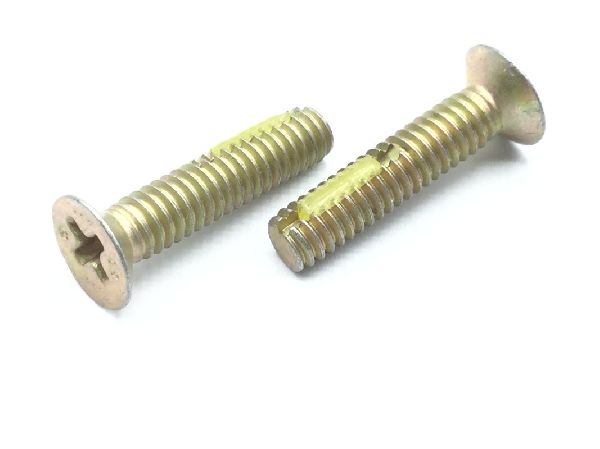

NAS1189-08P12L Socket Head Cap Screw (2)

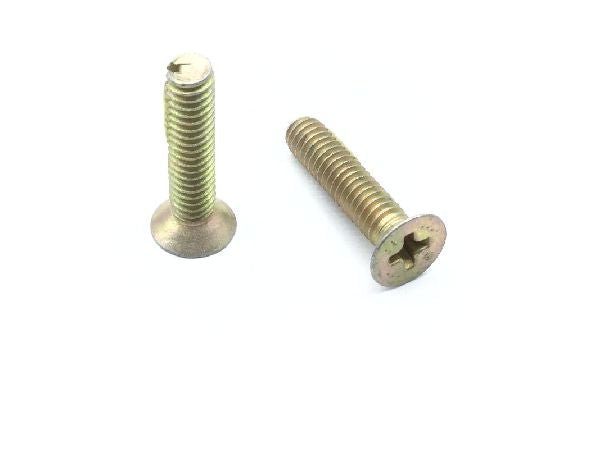

NAS1189-08P12L Socket Head Cap Screw (3)

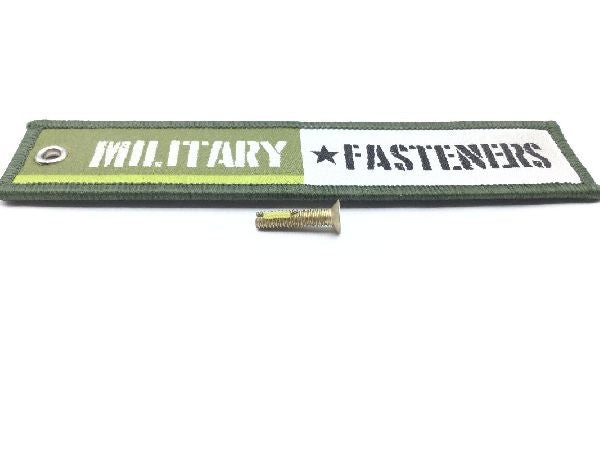

NAS1189-08P12L Socket Head Cap Screw (4)

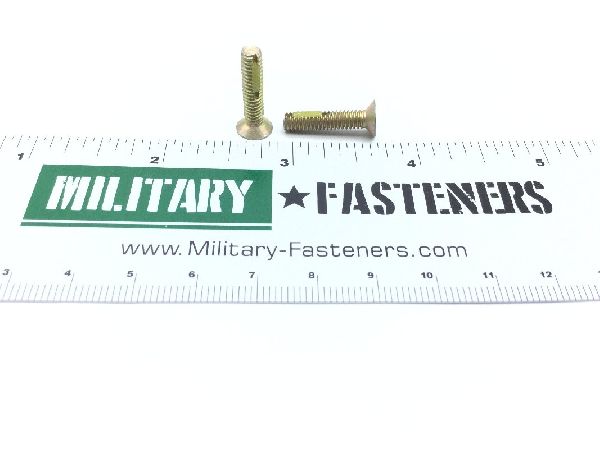

NAS1189-08P12L Socket Head Cap Screw (5)

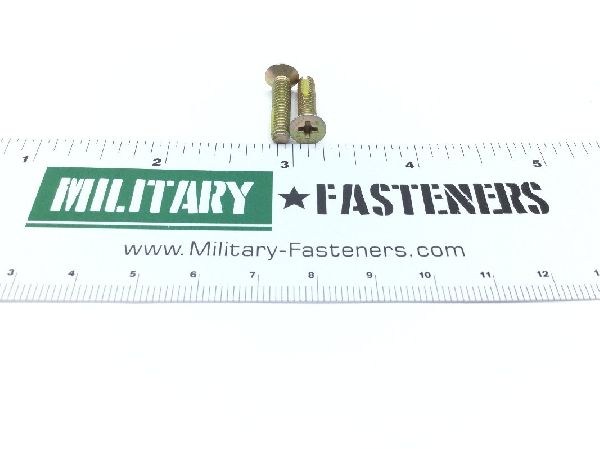

NAS1189-08P12L Socket Head Cap Screw (6)
NAS1189-08P12L Socket Head Cap Screw
NAS1189-08P12L Socket Head Cap Screw (2)
NAS1189-08P12L Socket Head Cap Screw (3)
NAS1189-08P12L Socket Head Cap Screw (4)
NAS1189-08P12L Socket Head Cap Screw (5)
NAS1189-08P12L Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1189-08P12L Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.9000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat countersunk
Material
Steel
Thread Class
3a
Countersink Angle
Between 99.0 degrees and 101.0 degrees
Fastener Length
0.750 inches
Hardness Rating
36.0 rockwell c and 40.0 rockwell c
Internal Drive Style
Cross recess type 1
Locking Feature
Patch threads or strip threads
Min. Tensile Strength (psi)
160000 pounds per square inch
Specification Data
80205-nas1189 professional/industrial association standard
Thread Diameter
0.164 inches
Thread Direction
Right-hand
Thread Length
0.682 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unjc
Head Diameter
Between 0.319 inches and 0.332 inches
