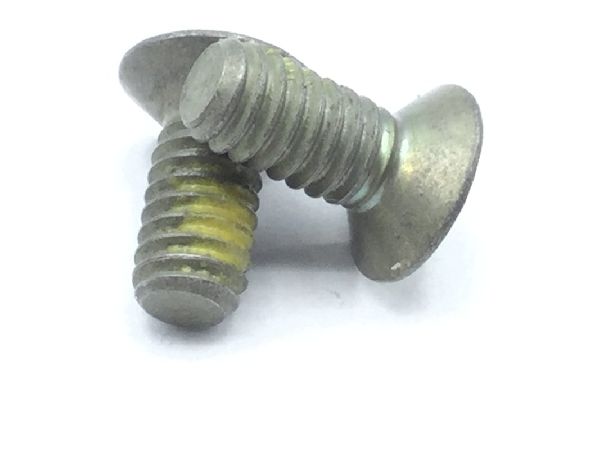

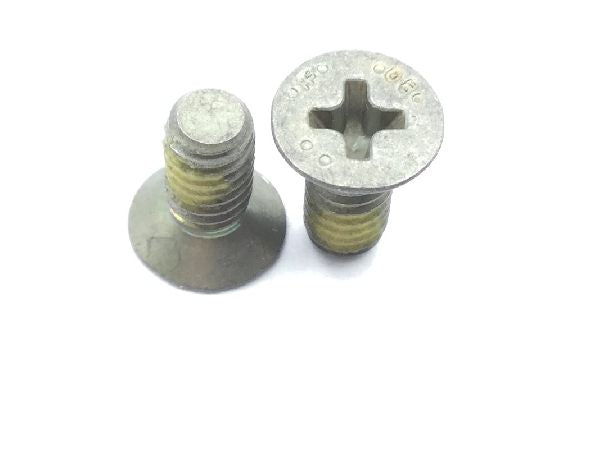

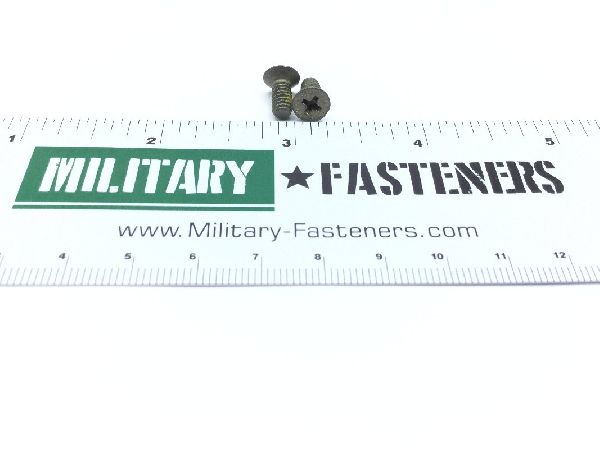

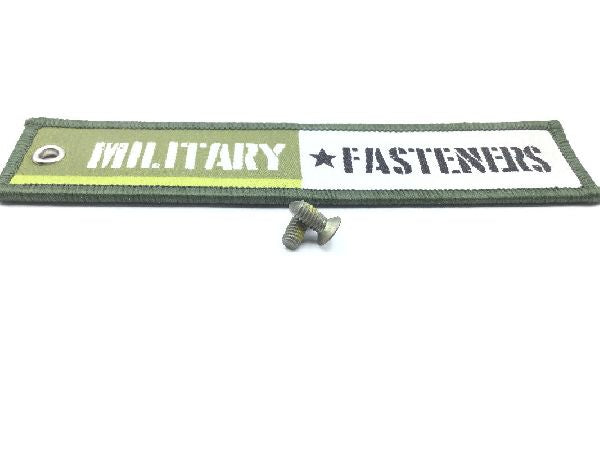

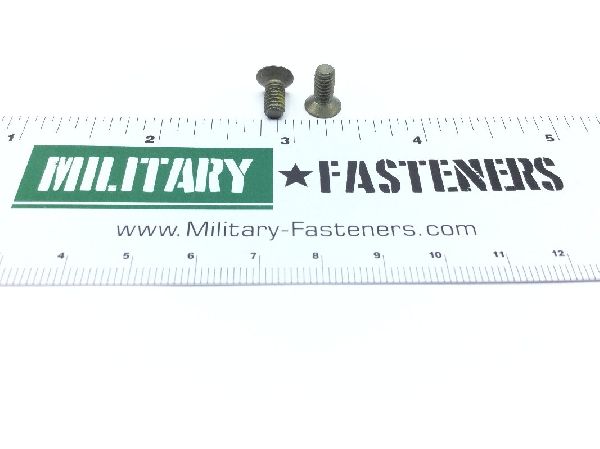

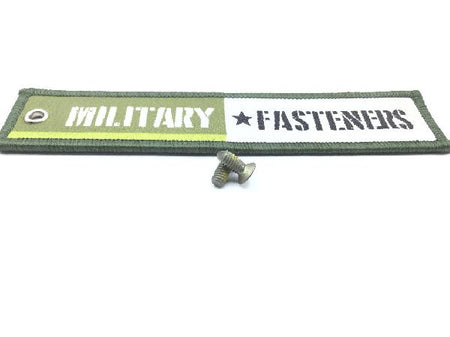

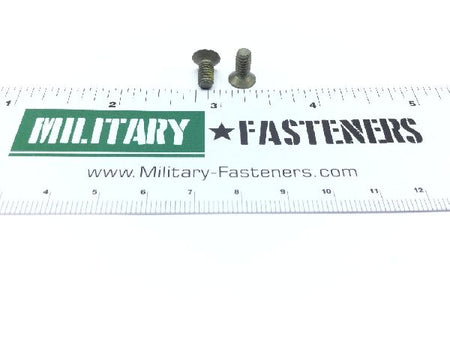

NAS1189-08P6 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.25

Units per Pack 25

Price per Pack $31.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $31.25

Add item to quote

Head Style

Flat countersunk

Material

Steel

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.344 inches and 0.375 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Cross recess type 1
Locking Feature: Pellet threads or strip threads
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1189 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.272 inches and 0.303 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.270 inches and 0.332 inches
