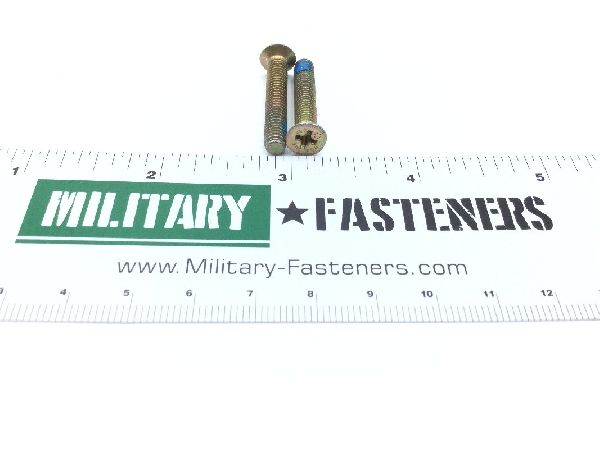

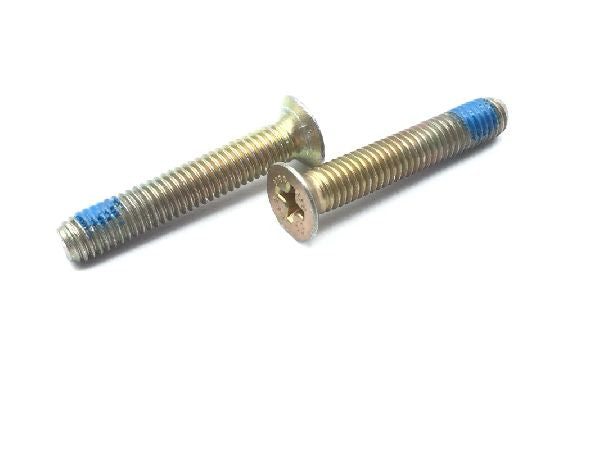

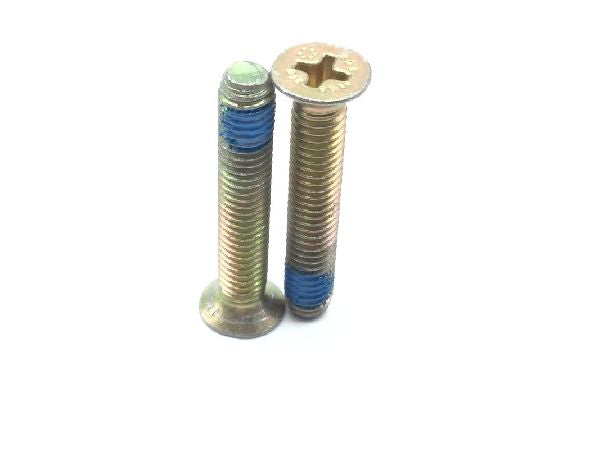

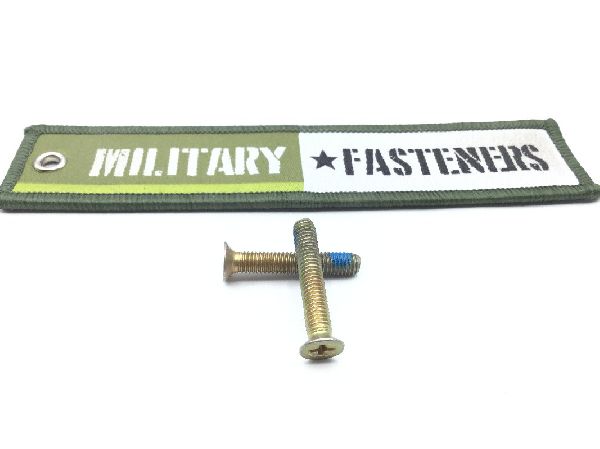

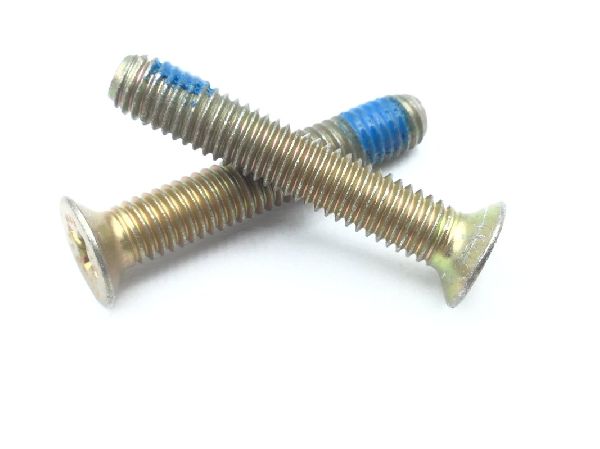

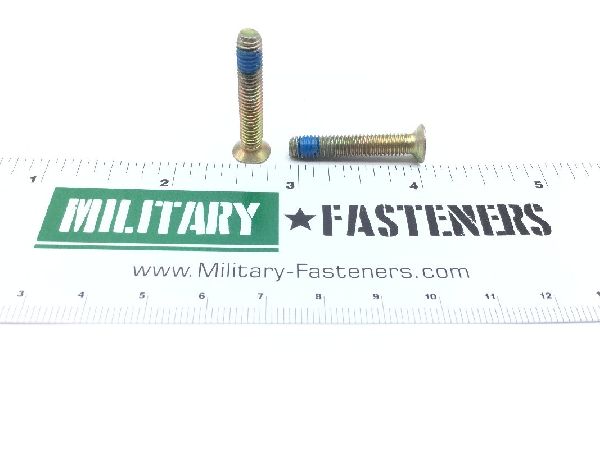

NAS1189-3P18 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $17.25

Units per Pack 5

Price per Pack $86.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $86.25

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740 or steel comp 4037

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 1.063 inches and 1.125 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Cross recess type 1
Locking Feature: Pellet threads or strip threads
Min. Tensile Strength (psi): 160000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.921 inches and 1.045 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.322 inches and 0.385 inches
