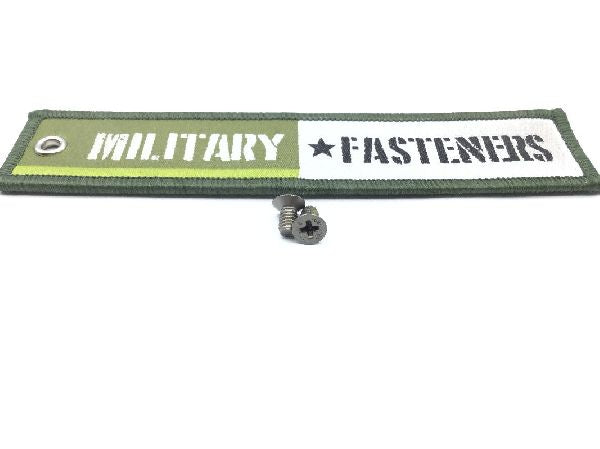

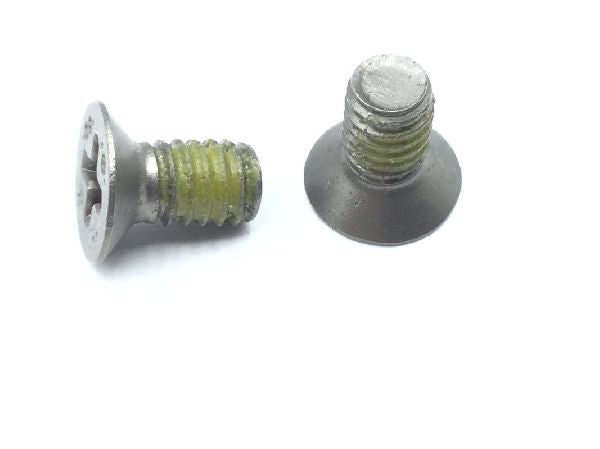

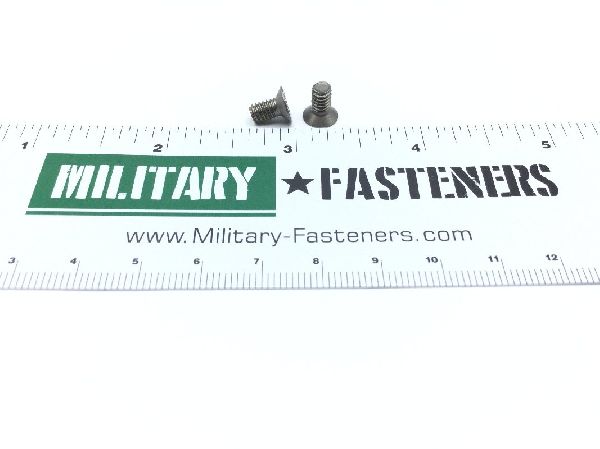

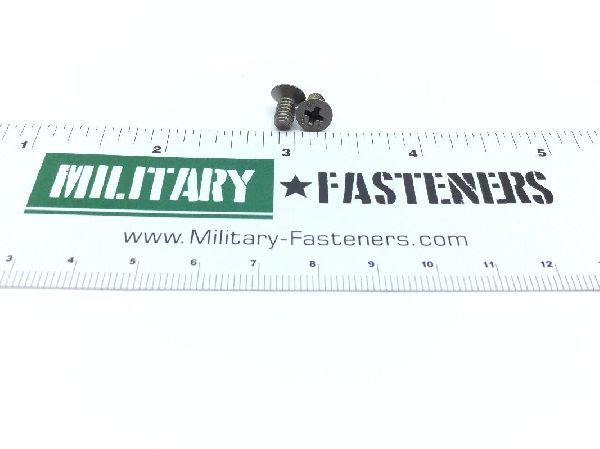

NAS1189E08P5B Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $10.50

Units per Pack 5

Price per Pack $52.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $52.50

Add item to quote

Head Style

Flat countersunk

Material

Plastic locking feature

Surface Treatment

Qq-p-35 federal specification single treatment response fastener

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.281 inches and 0.312 inches
Hardness Rating: 24.0 rockwell c fastener and 35.0 rockwell c fastener
Internal Drive Style: Cross recess type 1
Locking Feature: Patch threads
Material Specification: Mil-f-18240 military specification single material response locking feature
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Specification Data: 80205-nas1189 professional/industrial association standard
Surface Finish: 32.0 microinches surface of head
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.151 inches and 0.244 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.27 inches and 0.332 inches
