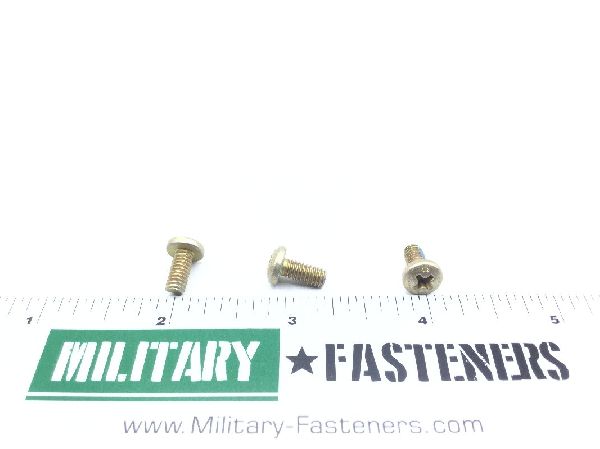

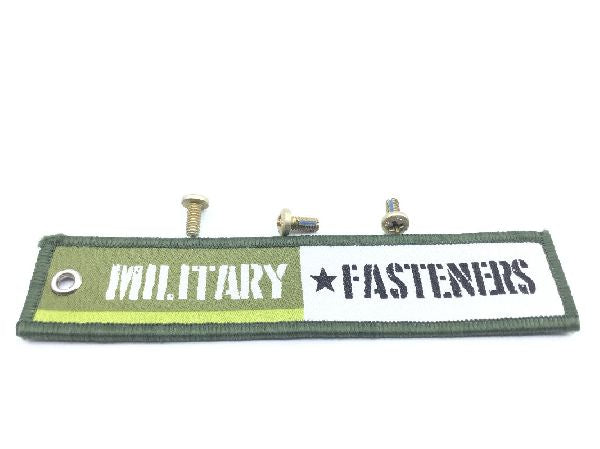

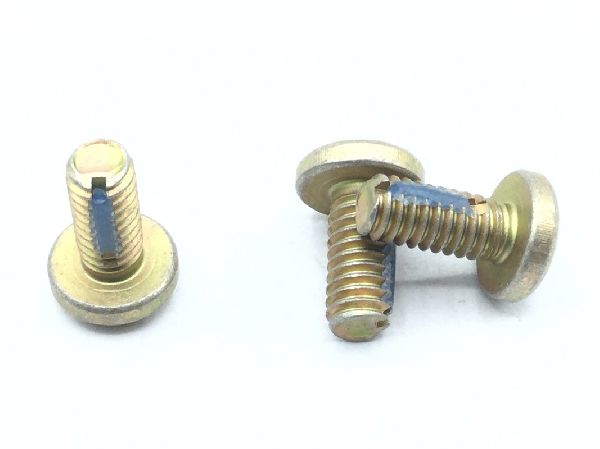

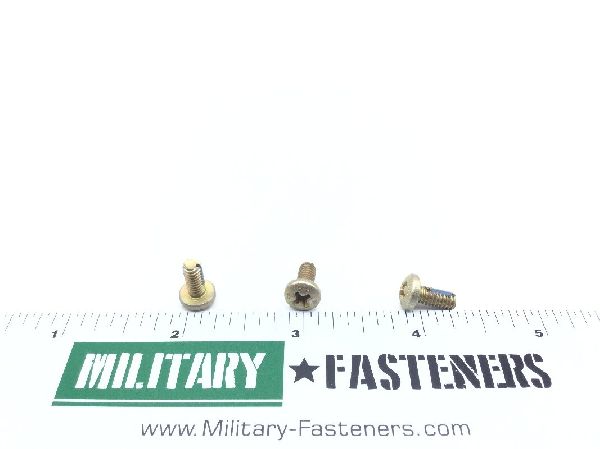

NAS1190-08P6L Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Head Style

Pan

Material

Steel

Thread Class

Fastener Length: Between 0.344 inches and 0.375 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Locking Feature: Strip threads
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1190 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.344 inches and 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.306 inches and 0.322 inches
