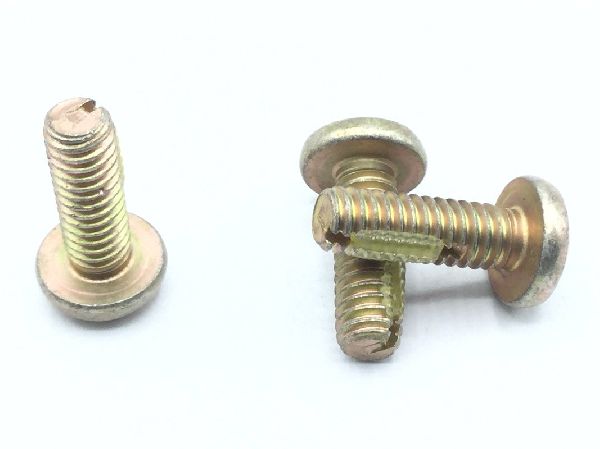

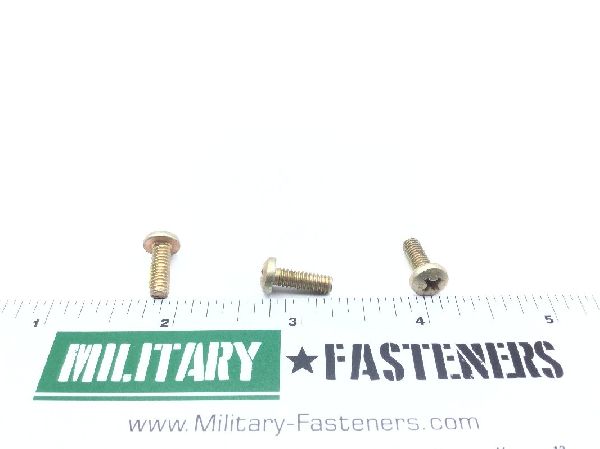

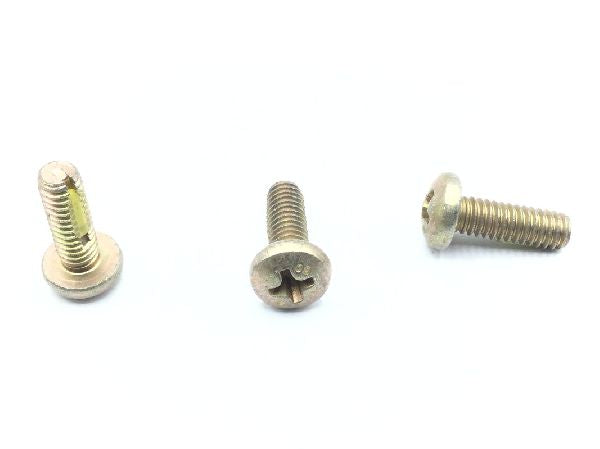

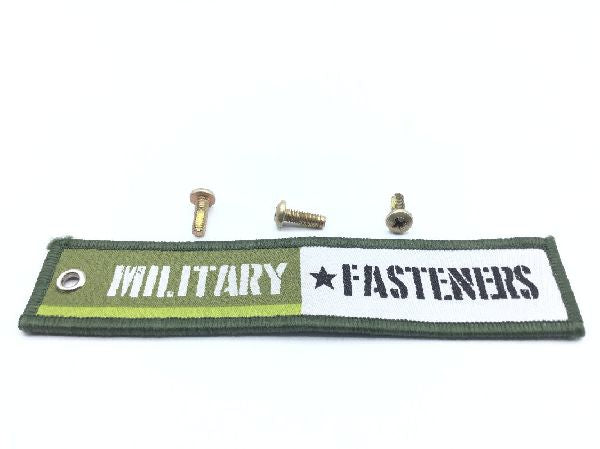

NAS1190-08P8L Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $4.56

Units per Pack 10

Price per Pack $45.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $45.60

Add item to quote

Head Style

Pan

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

Fastener Length: Between 0.469 inches and 0.500 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Locking Feature: Strip threads
Material Specification: Mil-s-5626 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1190 professional/industrial association standard
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.407 inches and 0.500 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.306 inches and 0.322 inches
