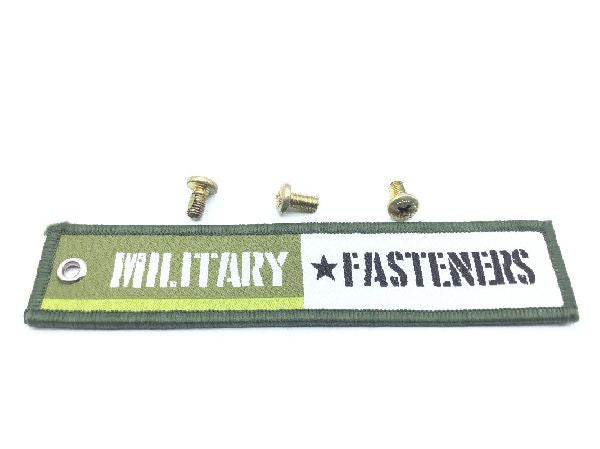

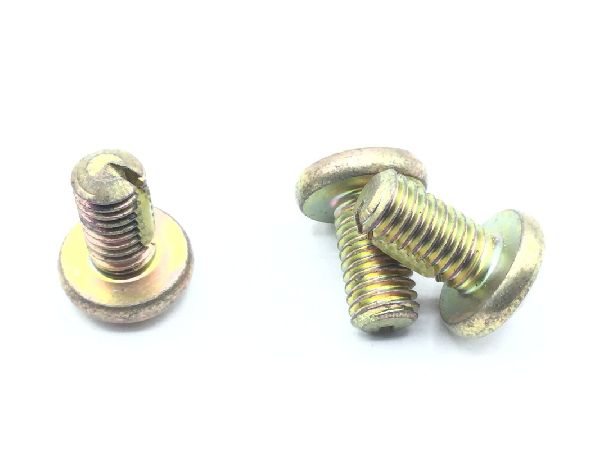

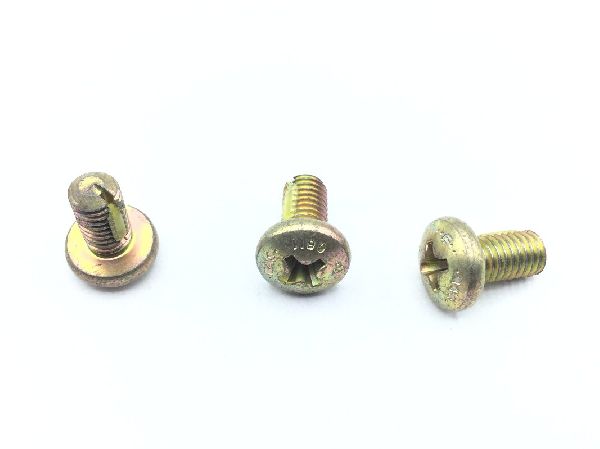

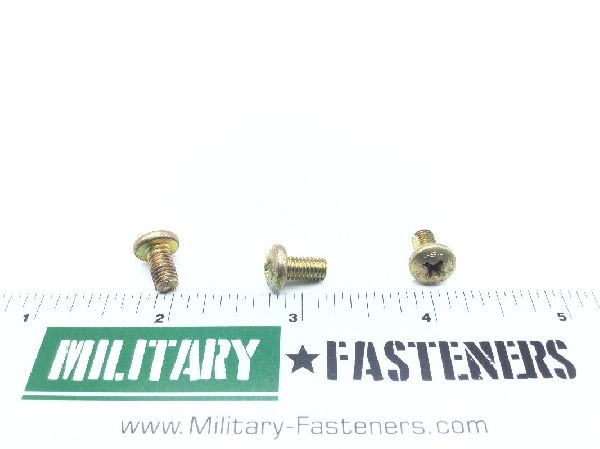

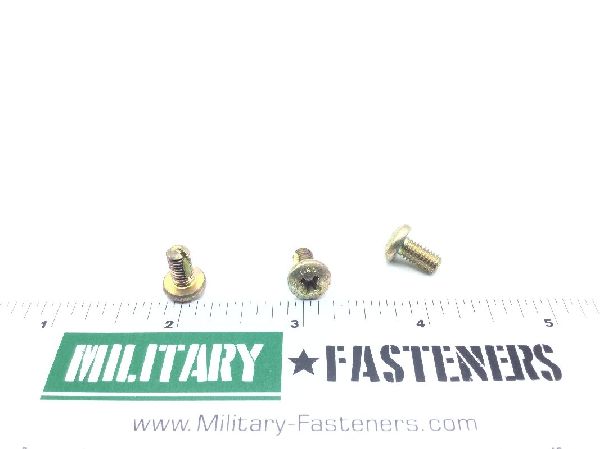

NAS1190-3P6L Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $4.88

Units per Pack 10

Price per Pack $48.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.80

Add item to quote

Head Style

Pan

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 0.344 inches and 0.375 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Locking Feature: Patch threads
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1190 professional/industrial association standard
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.282 inches and 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.357 inches and 0.373 inches
