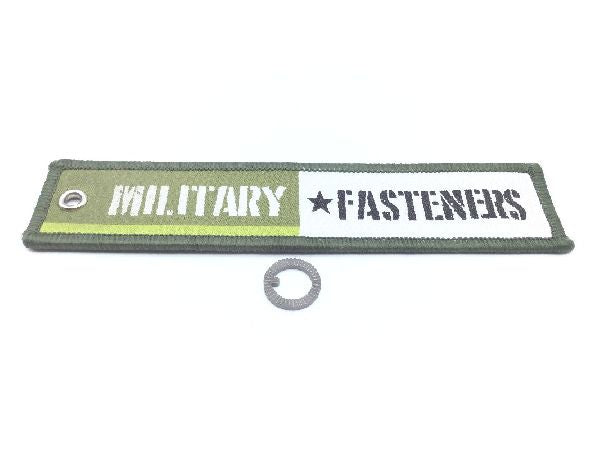

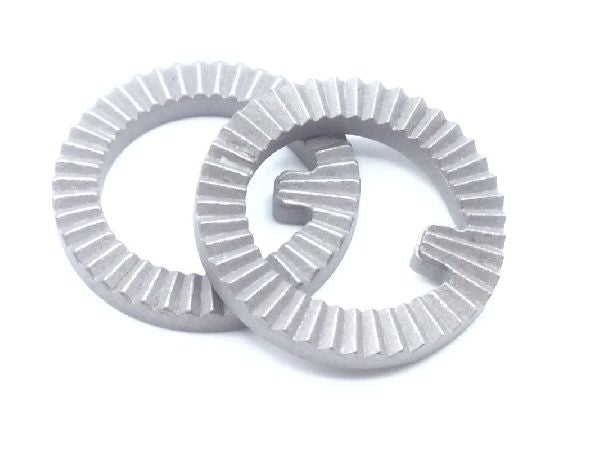

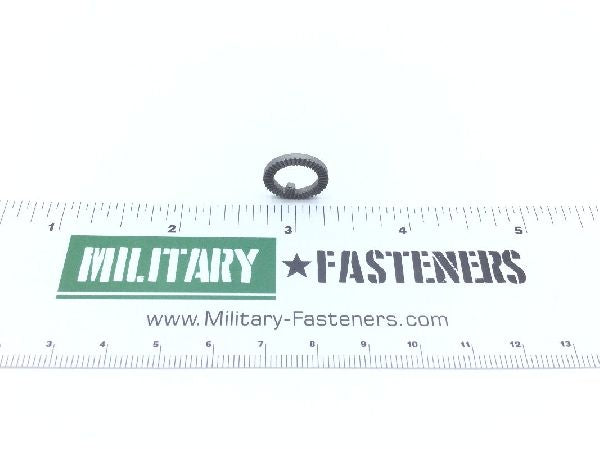

NAS1193K6C Locking Device

Product Series: NAS
ECCN: EAR99

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Ams 5355 steel

Distance From Centerline To Top Of Internal Key: 0.128 inches
First Key Width: Between 0.077 inches and 0.087 inches
Inside Diameter: Between 0.380 inches and 0.390 inches
Material Thickness: 0.043 inches
Outside Diameter: Between 0.560 inches and 0.580 inches
Overall Height: 0.092 inches
Special Features: Both halves in each set..
Specification Data: 80205-nas1193 professional/industrial association standard
Style Designator: Plate type
Wire Hole Diameter: 0.062 inches
