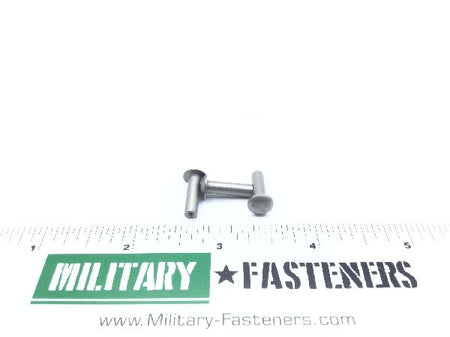

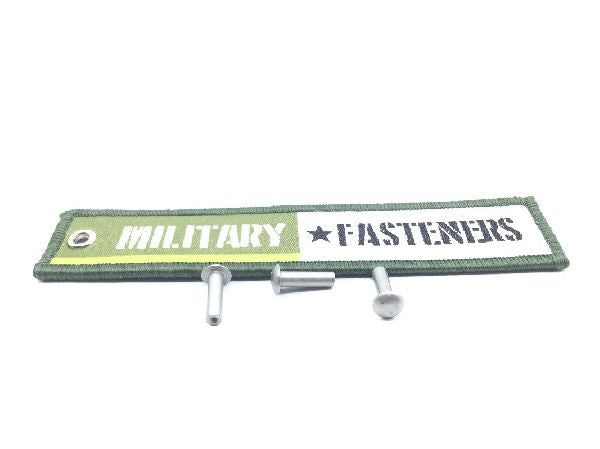

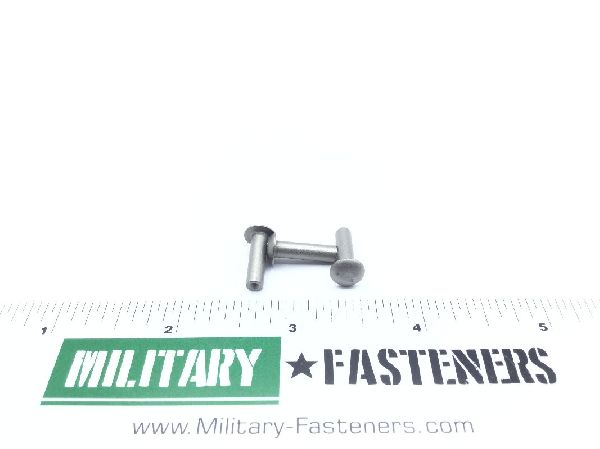

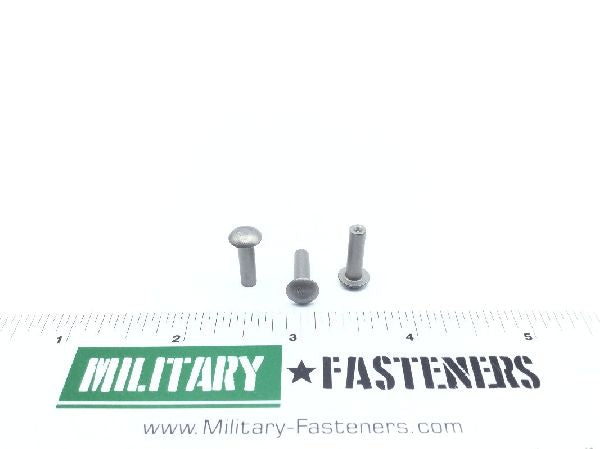

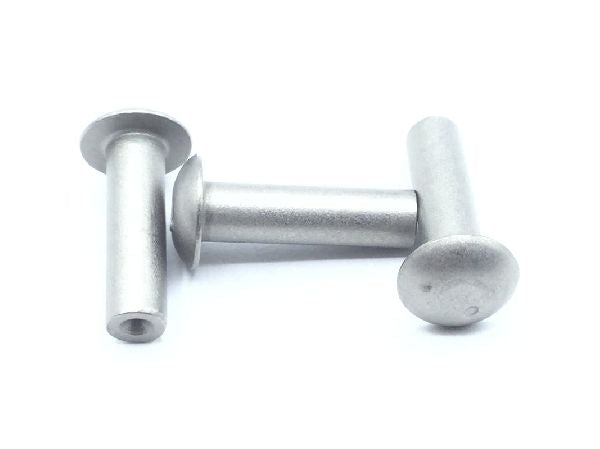

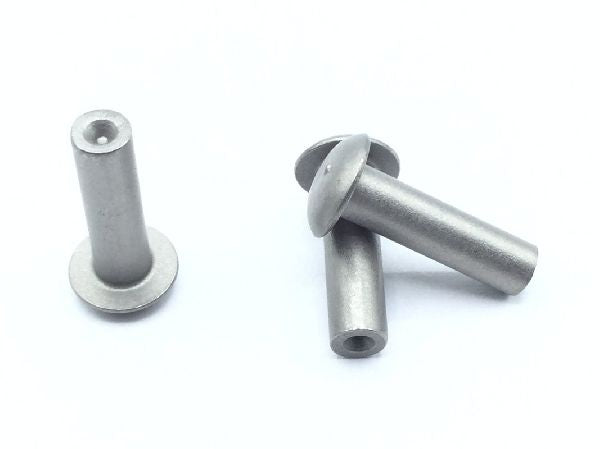

NAS1198-5-9 Solid Rivet
NAS1198-5-9 Solid Rivet (2)
NAS1198-5-9 Solid Rivet (3)
NAS1198-5-9 Solid Rivet (4)
NAS1198-5-9 Solid Rivet (5)
NAS1198-5-9 Solid Rivet (6)
NAS1198-5-9 Solid Rivet
NAS1198-5-9 Solid Rivet (2)
NAS1198-5-9 Solid Rivet (3)
NAS1198-5-9 Solid Rivet (4)
NAS1198-5-9 Solid Rivet (5)
NAS1198-5-9 Solid Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1198-5-9 Solid Rivet

Product Series
NAS
ECCN
EAR99
Schedule
7616.10.3000
Price per Unit $0.22
Units per Pack 100
Price per Pack $22.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:
Total Packs 1
Total Price $22.00
Add item to quote
Head Style
Universal
Material
Iron alloy 660
Surface Treatment
Qq-p-35 federal specification single treatment response
Fastener Length
Between 0.553 inches and 0.573 inches
Head Height
Between 0.067 inches and 0.077 inches
Head Major Diameter
Between 0.296 inches and 0.328 inches
Heat Treatment
As fabricated
Material Specification
Ams 5737 assn standard single material response
Shank Diameter
Between 0.155 inches and 0.160 inches
Shank Style
Straight
Shear Strength
90000 single pounds per square inch
