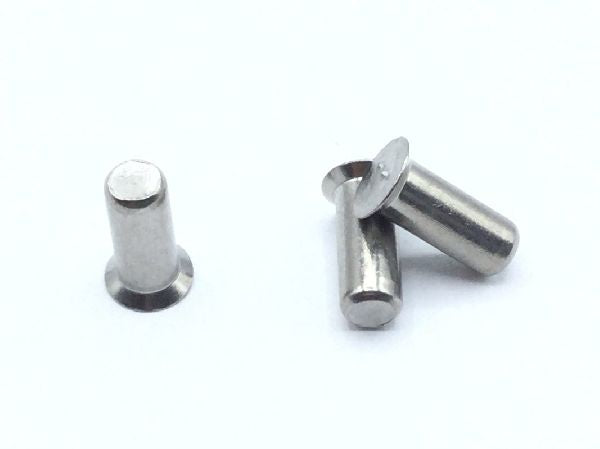

NAS1200M4-5 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Nickel alloy 400

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.302 inches and 0.322 inches
Head Major Diameter: 0.1957 inches
Heat Treatment: Annealed
Material Specification: Qq-n-281 federal specification single material response
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 49000 single pounds per square inch
Specification Data: 80205-nas1200 professional/industrial association standard
