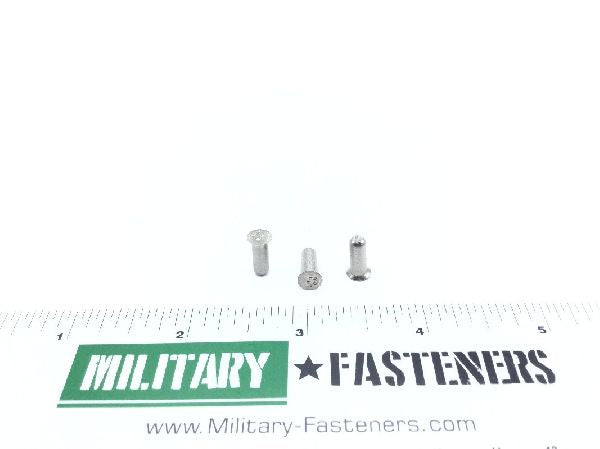

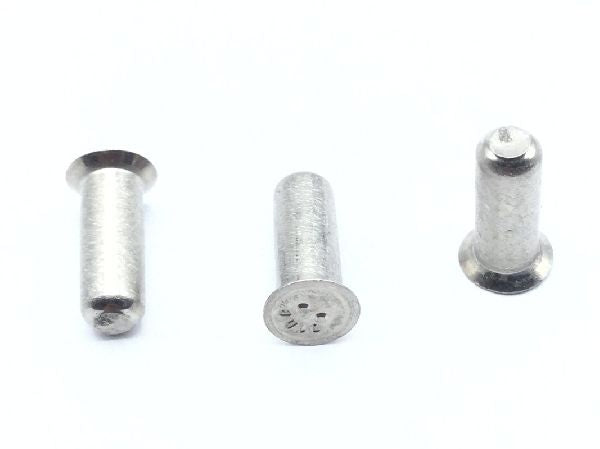

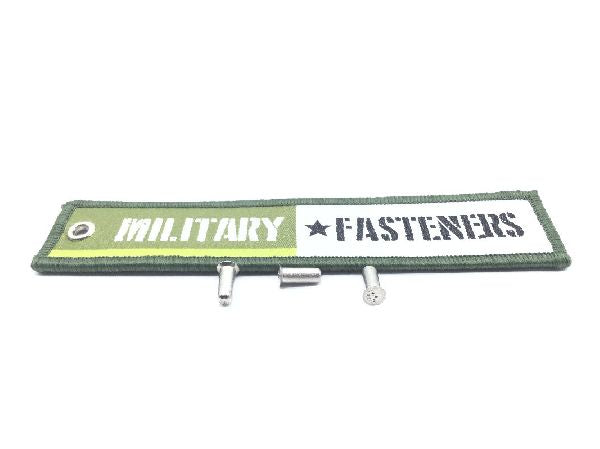

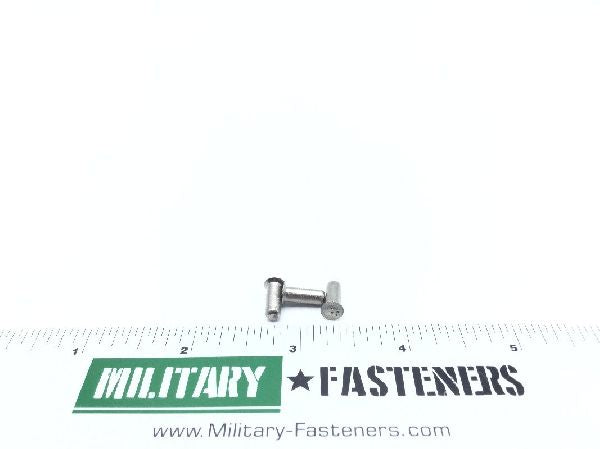

NAS1200M5-7 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Nickel alloy 400

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.428 inches and 0.448 inches
Head Major Diameter: Between 0.2251 inches and 0.2469 inches
Heat Treatment: Annealed
Material Specification: class a federal specification single material response qq-n-281
Shank Diameter: Between 0.155 inches and 0.160 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 49000 single pounds per square inch
Specification Data: 80205-nas1200 professional/industrial association standard
