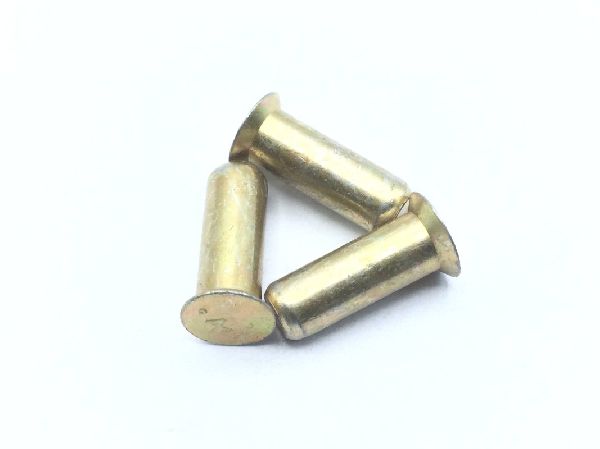

NAS1200M5-7P Solid Rivet

NAS1200M5-7P Solid Rivet (2)

NAS1200M5-7P Solid Rivet (3)

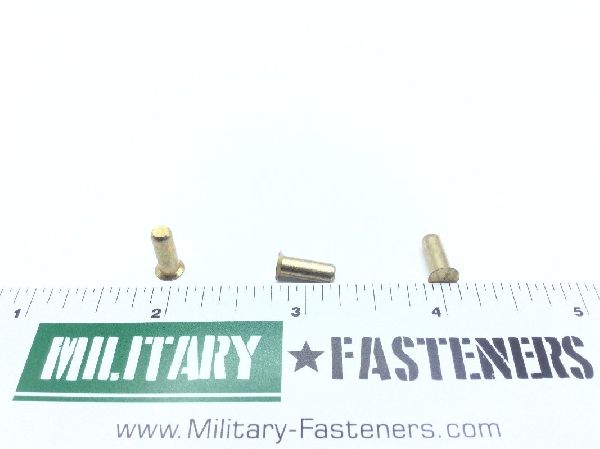

NAS1200M5-7P Solid Rivet (4)

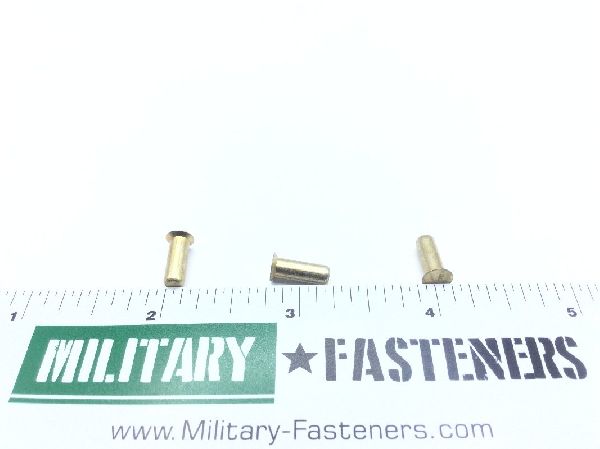

NAS1200M5-7P Solid Rivet (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1200M5-7P Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $0.43

Units per Pack 100

Price per Pack $43.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $43.00

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Nickel alloy 400

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.428 inches and 0.448 inches
Head Major Diameter: 0.2469 inches
Heat Treatment: Annealed
Material Specification: cl a federal specification single material response qq-n-281
Shank Diameter: Between 0.155 inches and 0.160 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 49000 single pounds per square inch
Specification Data: 80205-nas1200 professional/industrial association standard
