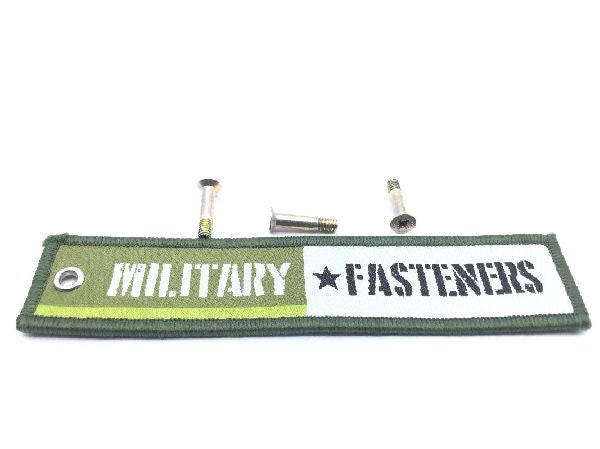

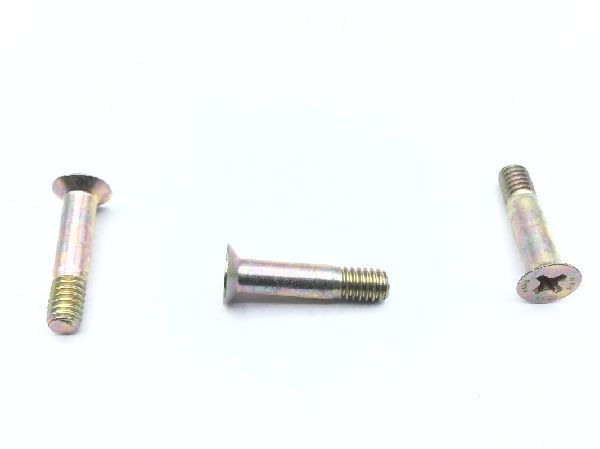

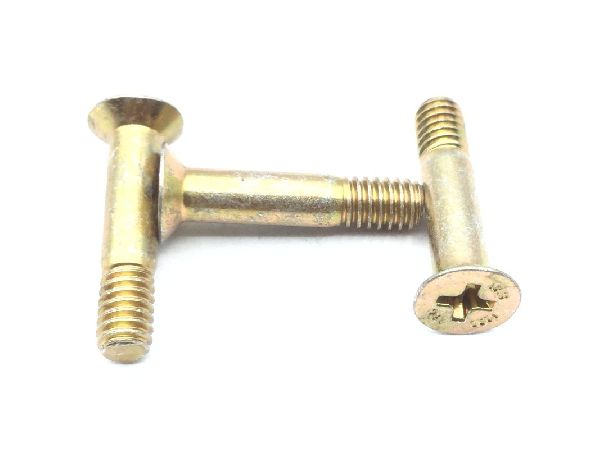

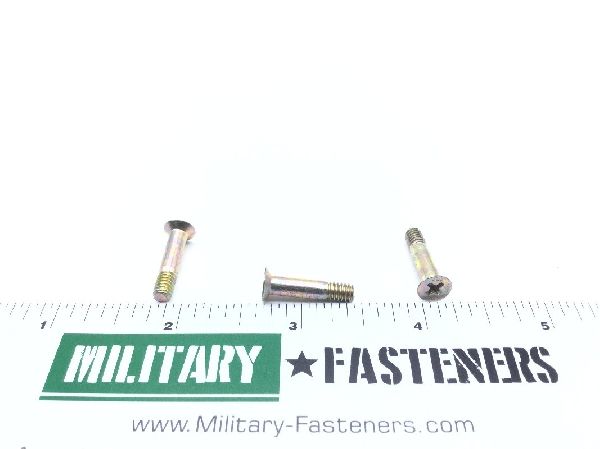

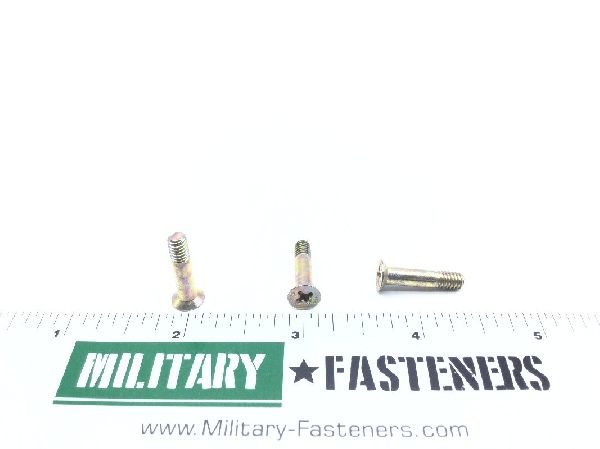

NAS1202-8 Close Tolerance Bolt

NSN: 5305-00-086-2455
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $0.39

Units per Pack 100

Price per Pack $39.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $39.00

Add item to quote

Head Style

Flat countersunk

Material

Steel comp

Surface Treatment

type 2 class 3 federal specification all treatment responses qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.761 inches and 0.791 inches
Grip Diameter: Between 0.1625 inches and 0.1635 inches
Grip Length: 0.500 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1202 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.276 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.280 inches and 0.337 inches
