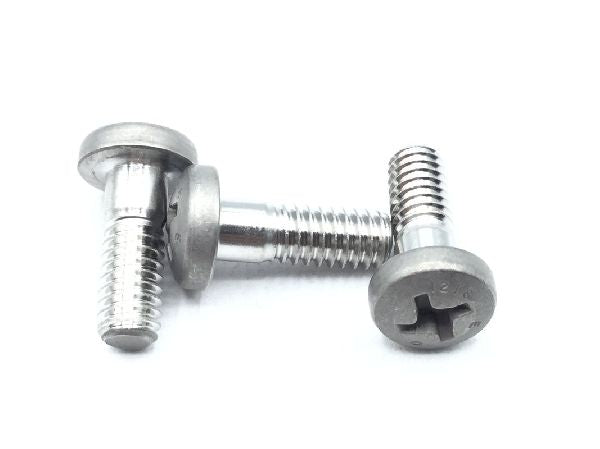

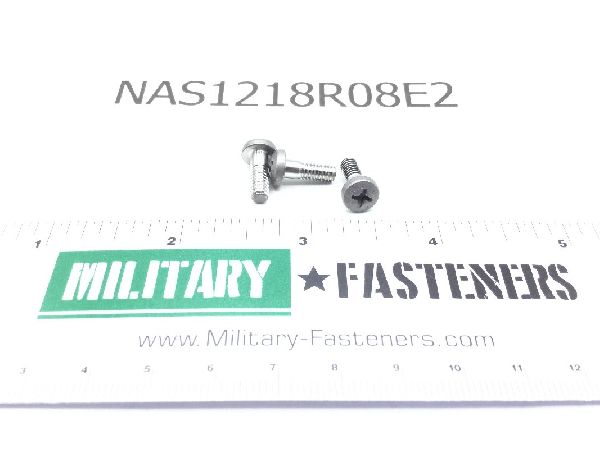

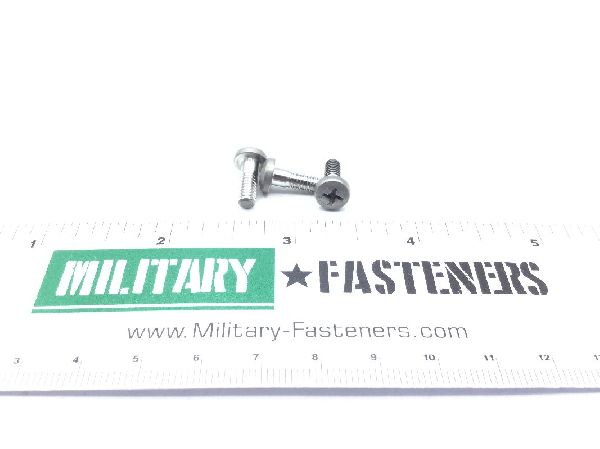

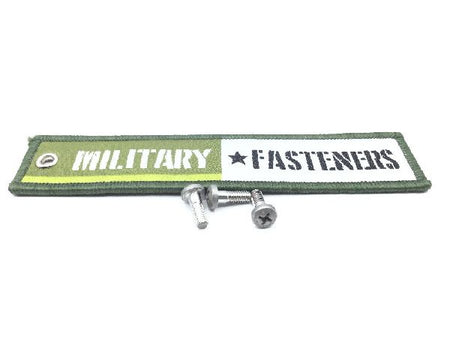

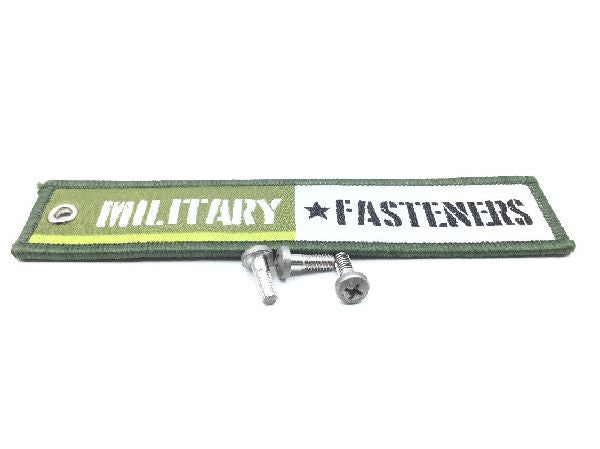

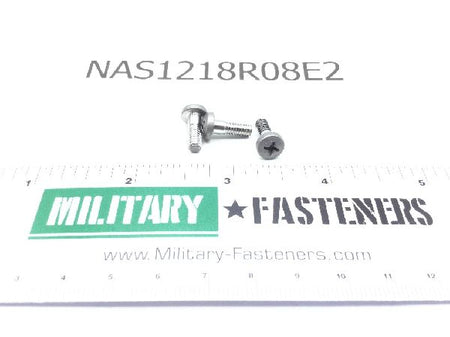

NAS1218R08E2 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.04

Units per Pack 50

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.449 inches and 0.479 inches
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Torque-set ribbed
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Iron alloy 660
Screw Material Specification: Ams 5737 assn standard single material response or ams 5732 assn standard single material response or ams 5731 assn standard single material response
Shank Surface Finish: 32.0 microinches
Specification Data: 80205-nas1218 professional/industrial association standard
Surface Of Head Surface Finish: 32.0 microinches
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.339 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Thread Surface Finish: 32.0 microinches
Head Diameter: Between 0.308 inches and 0.322 inches
