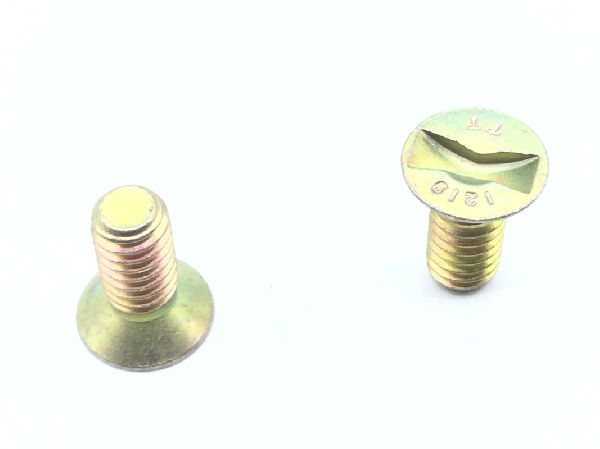

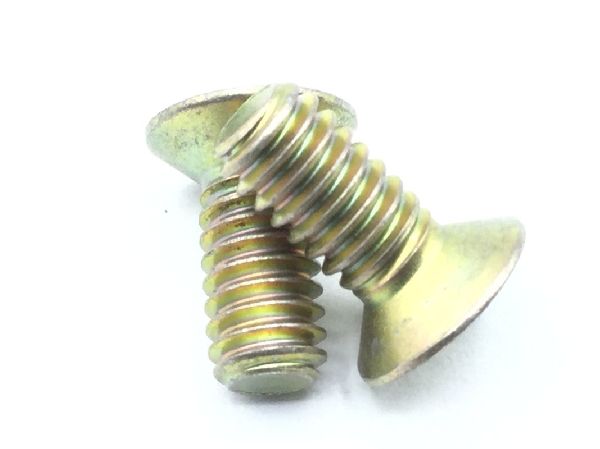

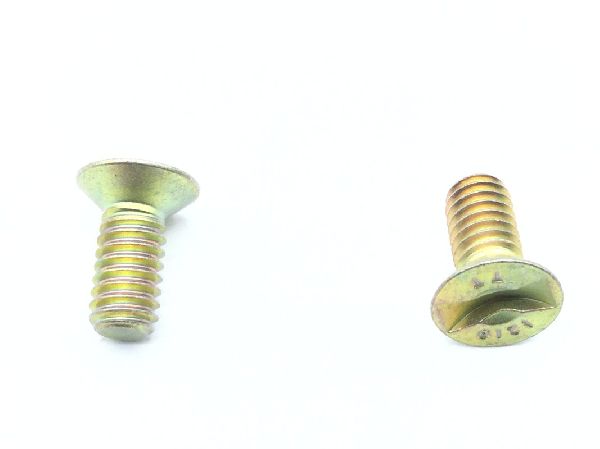

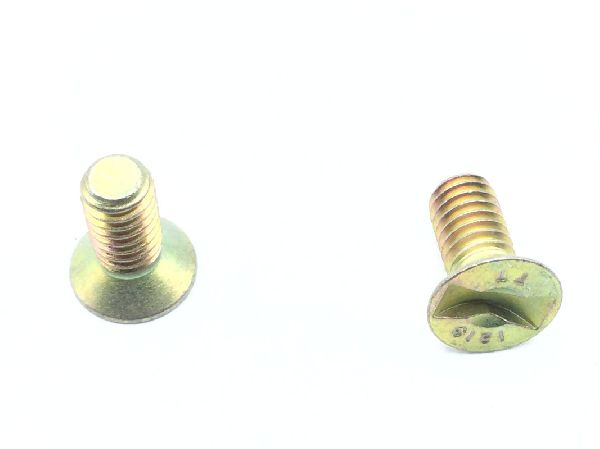

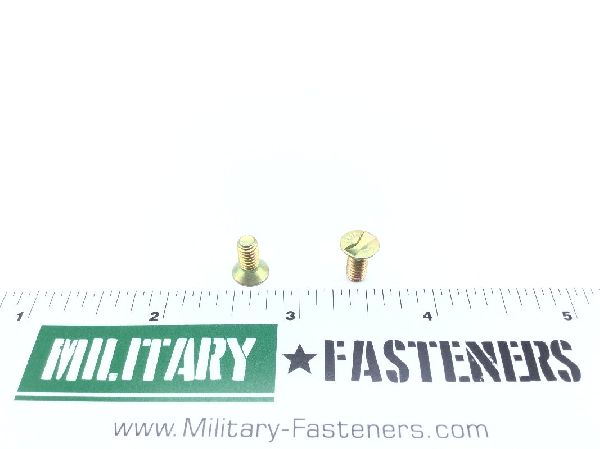

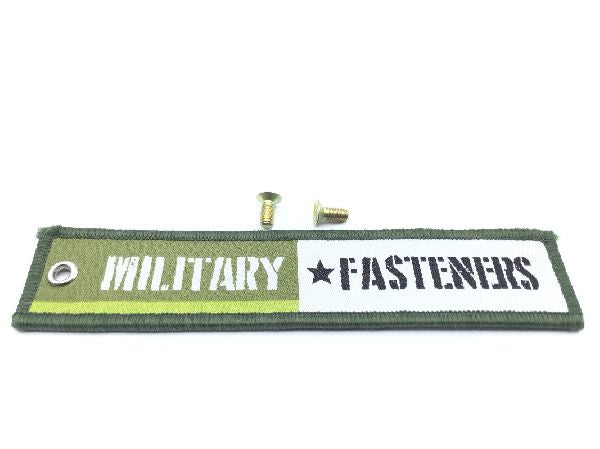

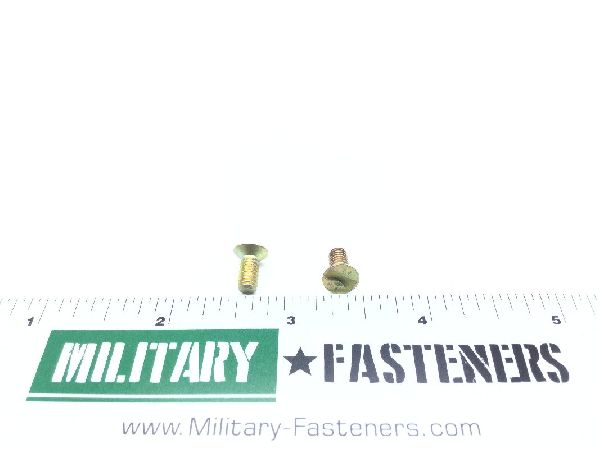

NAS1219-08-6 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $15.06

Units per Pack 5

Price per Pack $75.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $75.30

Add item to quote

Head Style

Flat countersunk

Material

Steel comp

Surface Treatment

Qq-p-416 type 1 cl 3 federal specification single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.360 inches and 0.390 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: High-torque
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1219 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.226 inches and 0.318 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.294 inches and 0.332 inches
