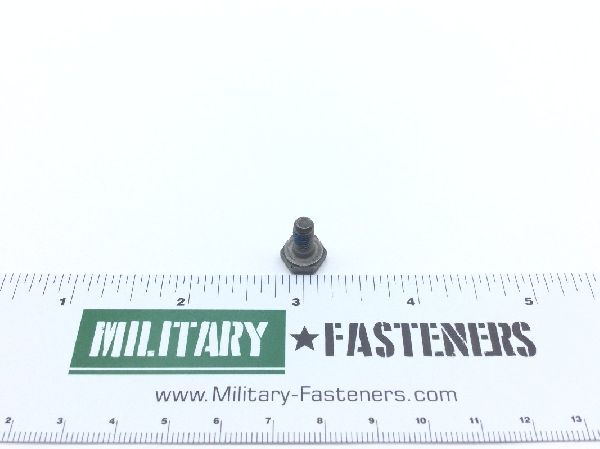

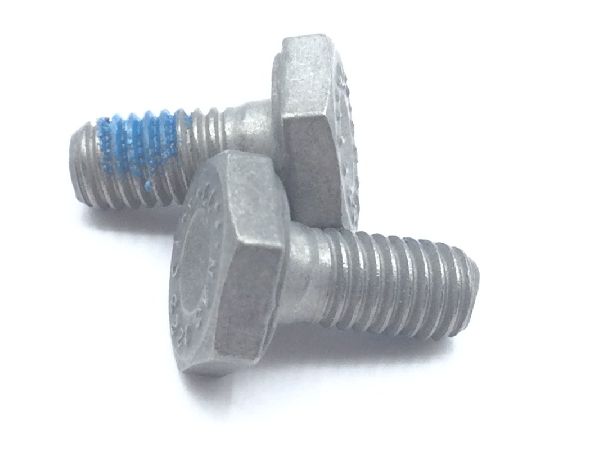

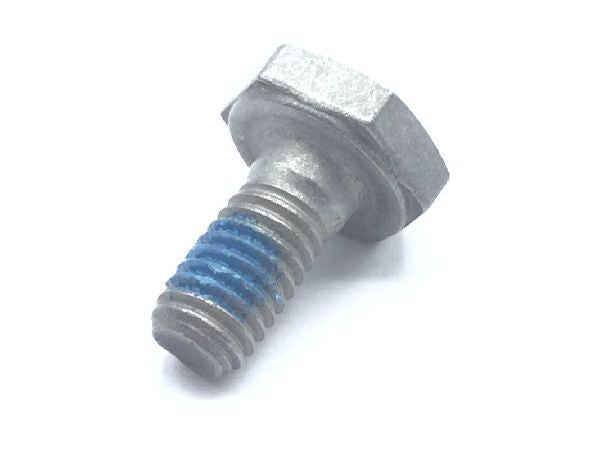

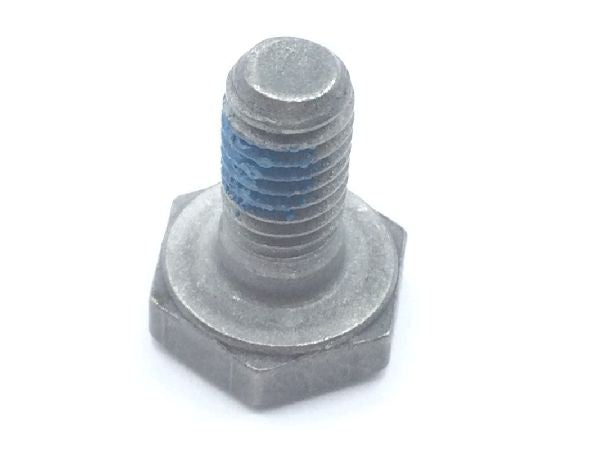

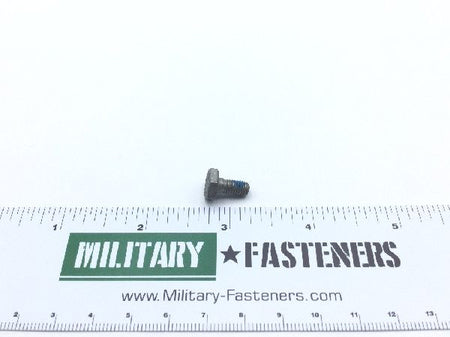

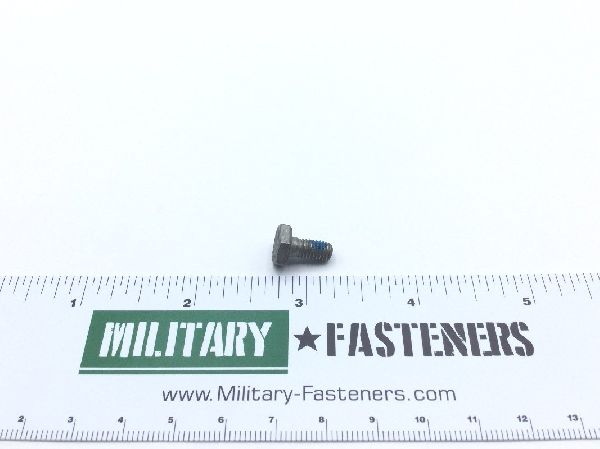

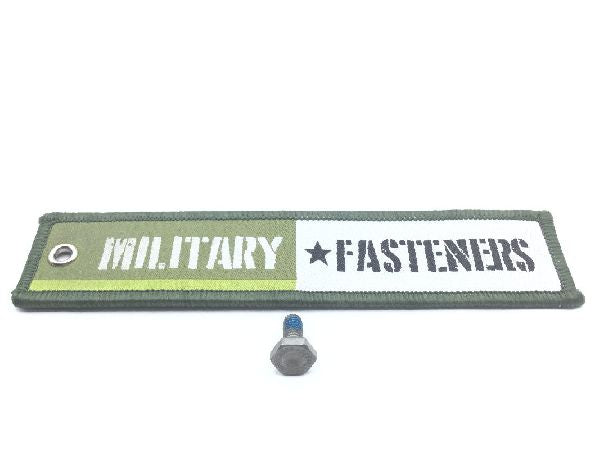

NAS1223C1 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $13.79

Units per Pack 5

Price per Pack $68.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $68.95

Add item to quote

Head Style

Dished hexagon

Material

Stainless Steel

Thread Class

Fastener Length: Between 0.385 inches and 0.415 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.052 inches and 0.072 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.110 inches and 0.125 inches
Material Specification: Ams5735 assn standard 1st material response
Min. Tensile Strength (psi): 140000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.338 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
