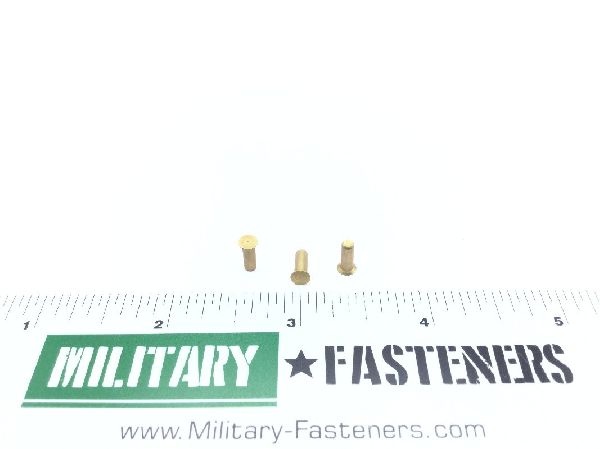

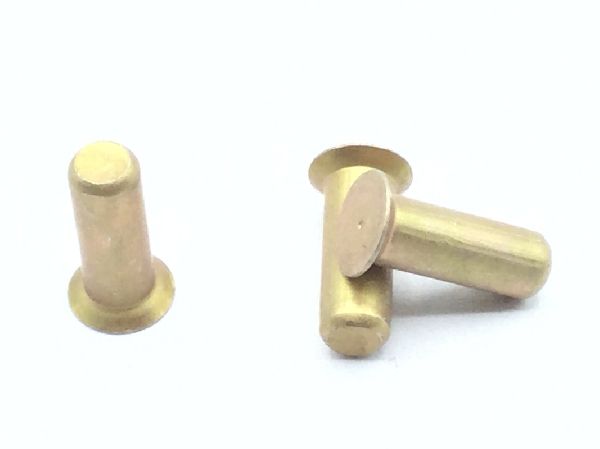

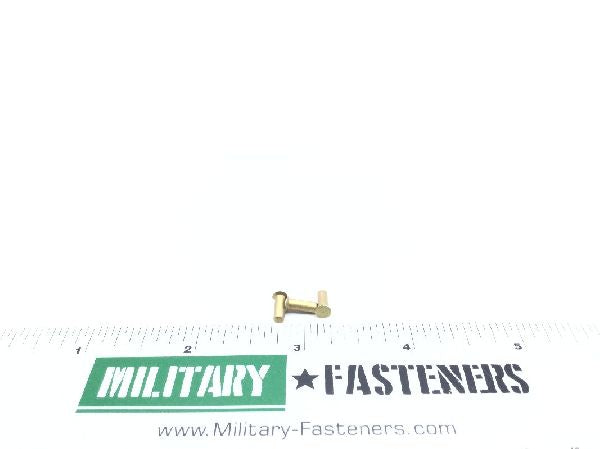

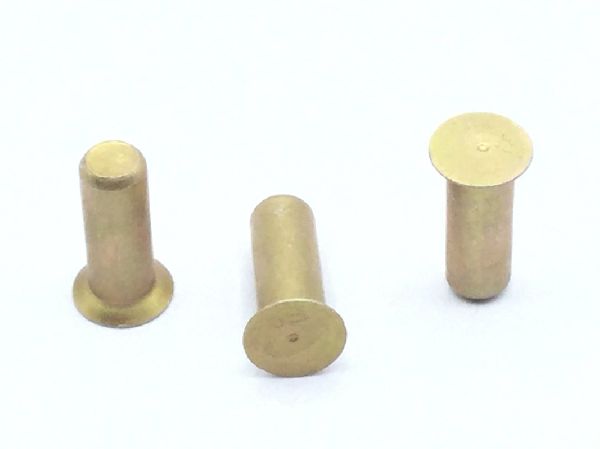

NAS1241AD3-5 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 2117

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.302 inches and 0.322 inches
Head Major Diameter: Between 0.175 inches and 0.183 inches
Part Name Assigned By Controlling Agency: alluminum alloy 100 degree flush head rivet-solid
Shank Diameter: Between 0.108 inches and 0.112 inches
Shank Style: Straight w/radius chamfered tip
Special Features: End item c-141 tcas/ta;conical surface of the head shall be concentric with the shank of the rivet within .005;head cocking angle relative to axis of rivet 1/2 degree max; head diameters are to theoretical sharp corners as measured by projection
