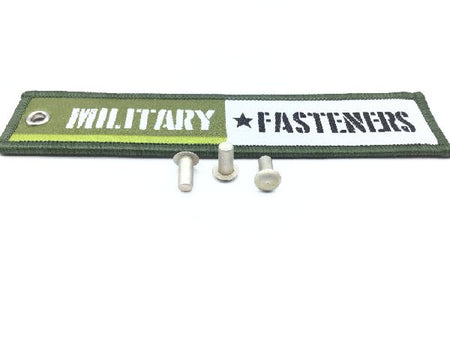

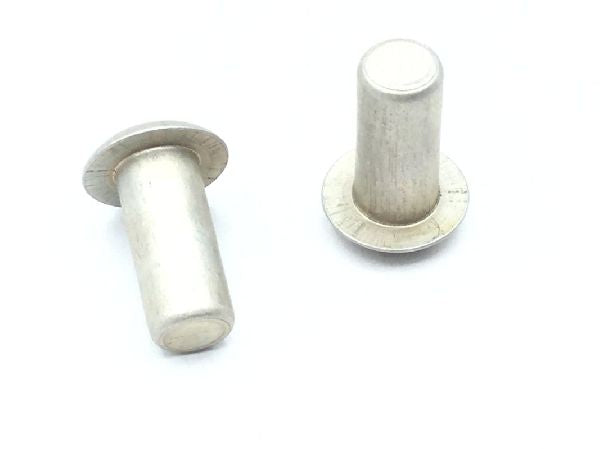

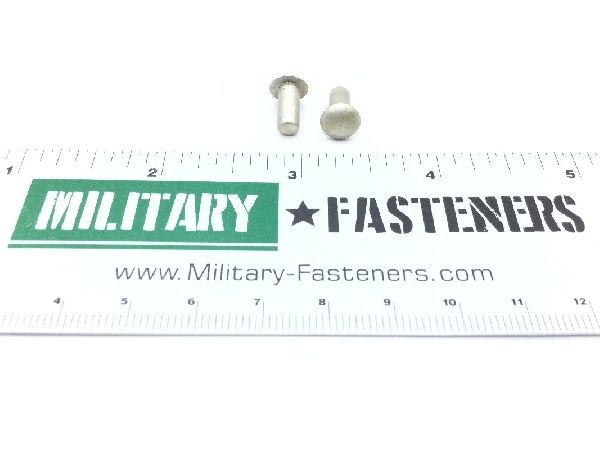

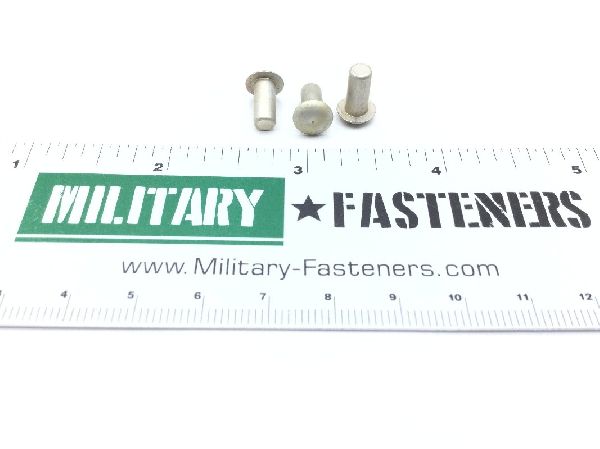

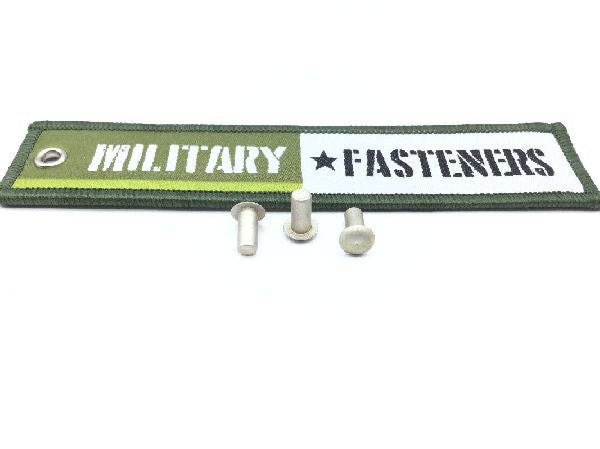

NAS1242AD5-6 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $68.74

Units per Pack 1

Price per Pack $68.74

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $68.74

Add item to quote

Head Style

Universal

Material

Aluminum alloy 2117

Surface Treatment

Mil-c-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Fastener Length: Between 0.365 inches and 0.385 inches
Head Height: Between 0.057 inches and 0.077 inches
Head Major Diameter: Between 0.296 inches and 0.328 inches
Heat Treatment: T-4 solution heat treated
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.171 inches and 0.176 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
Specification Data: 80205-nas1242 professional/industrial association standard
