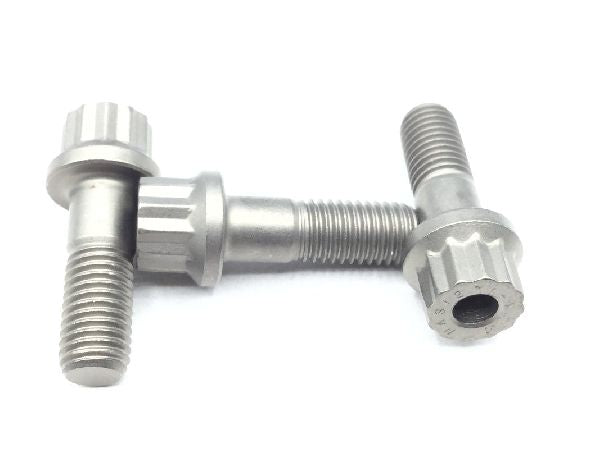

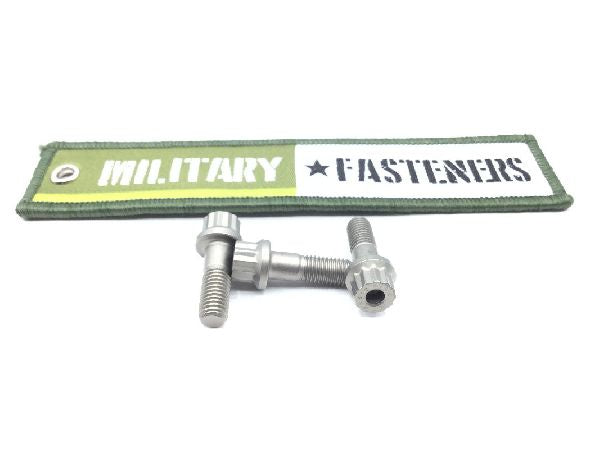

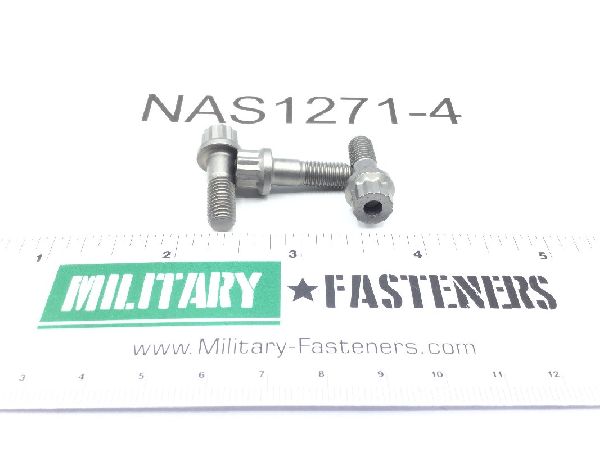

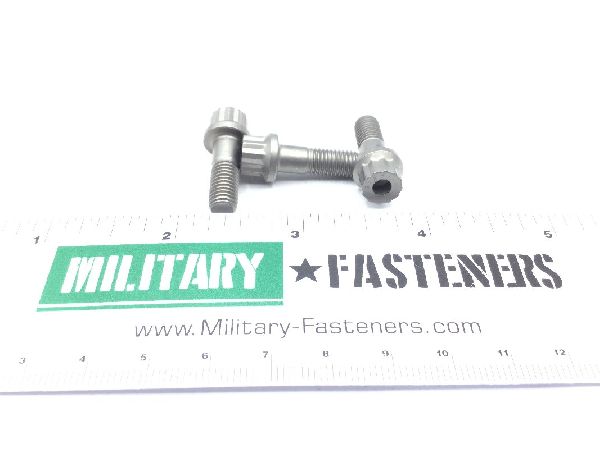

NAS1271-4 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $12.92

Units per Pack 5

Price per Pack $64.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $64.60

Add item to quote

Head Style

Double hexagon with hole

Material

Titanium alloy

Thread Class

Extended Washer Diameter: Between 0.428 inches and 0.438 inches
Extended Washer Thickness: Between 0.059 inches and 0.079 inches
Fastener Length: Between 0.720 inches and 0.750 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.240 inches and 0.260 inches
Head Height: Between 0.290 inches and 0.310 inches
Material Specification: Comp 6al-4v assn standard single material response nas621
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1271 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.460 inches and 0.510 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.306 inches and 0.315 inches
