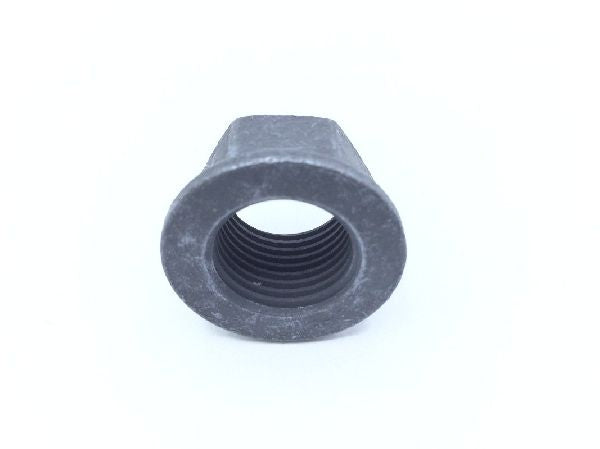

NAS1291-10 Self-Locking Extended Washer Nut

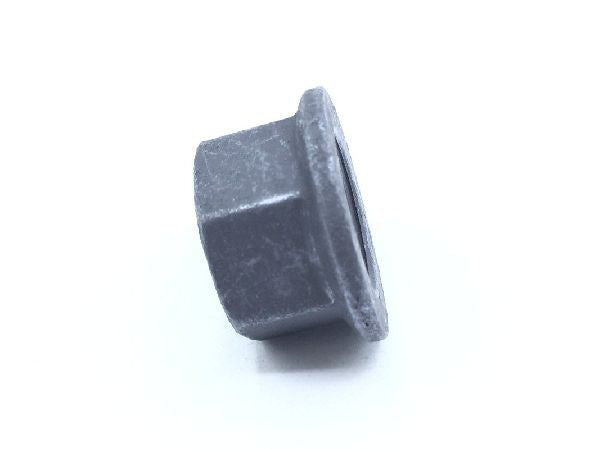

NAS1291-10 Self-Locking Extended Washer Nut (2)

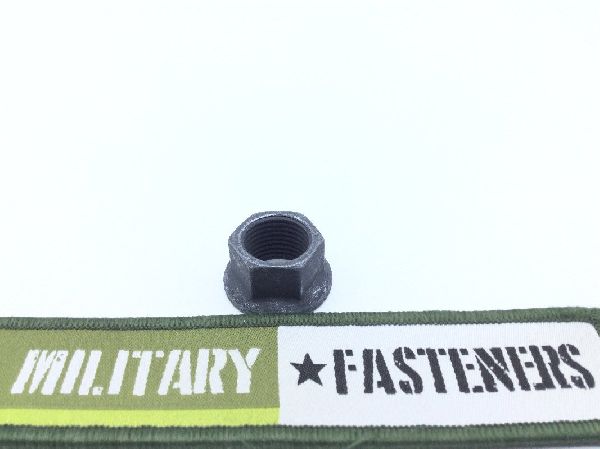

NAS1291-10 Self-Locking Extended Washer Nut (3)

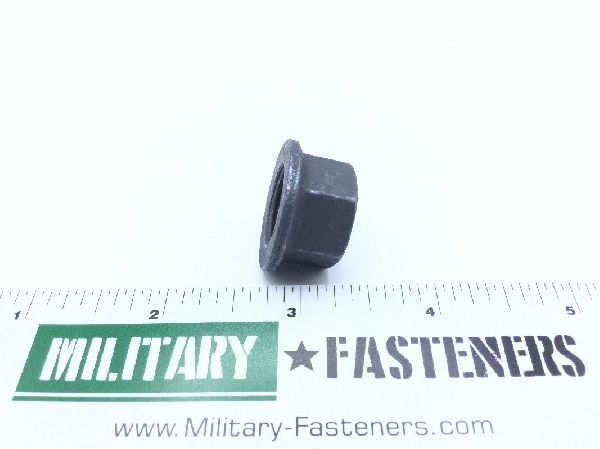

NAS1291-10 Self-Locking Extended Washer Nut (4)

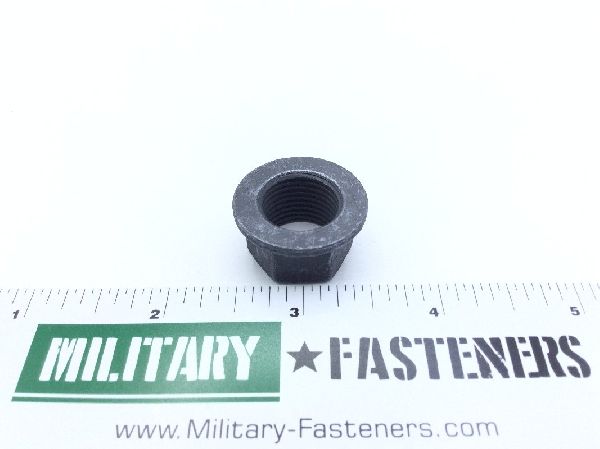

NAS1291-10 Self-Locking Extended Washer Nut (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1291-10 Self-Locking Extended Washer Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Class 2 or class 3 federal specification single treatment response qq-p-416

Thread Class

3b

Thread Quantity Per Inch (tpi)

18

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.625 inches

Countersink Angle: 120 degrees
Locking Feature: Prevailing torque all metal design
Nut Style: Hexagon
Overall Height: Between 0.49 inches and 0.55 inches
Specification Data: 80205-nas1291 professional/industrial association standard
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Washer Outside Diameter: 1.014 inches
Washer Thickness: 0.05 inches
Width Across Flats: Between 0.743 inches and 0.755 inches
Lubrication: Dry film lubricant
