NAS1291-8 Self-Locking Extended Washer Nut
NAS1291-8 Self-Locking Extended Washer Nut (2)
NAS1291-8 Self-Locking Extended Washer Nut (3)
NAS1291-8 Self-Locking Extended Washer Nut (4)

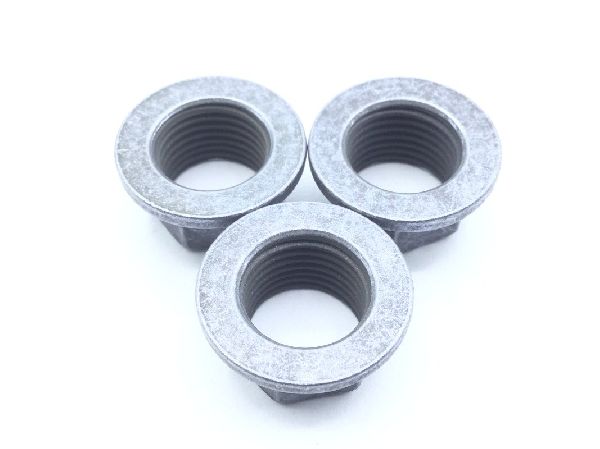

NAS1291-8 Self-Locking Extended Washer Nut

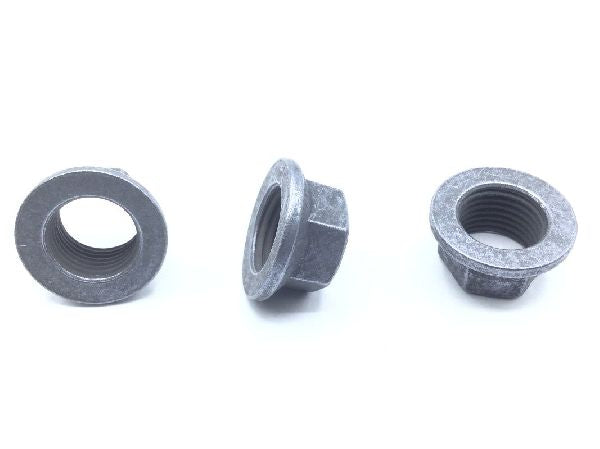

NAS1291-8 Self-Locking Extended Washer Nut (2)

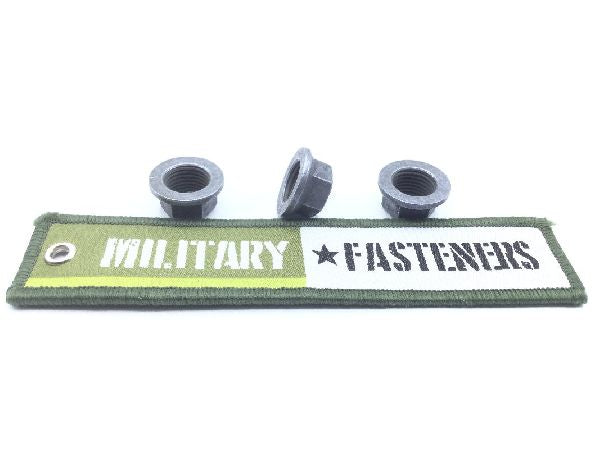

NAS1291-8 Self-Locking Extended Washer Nut (3)

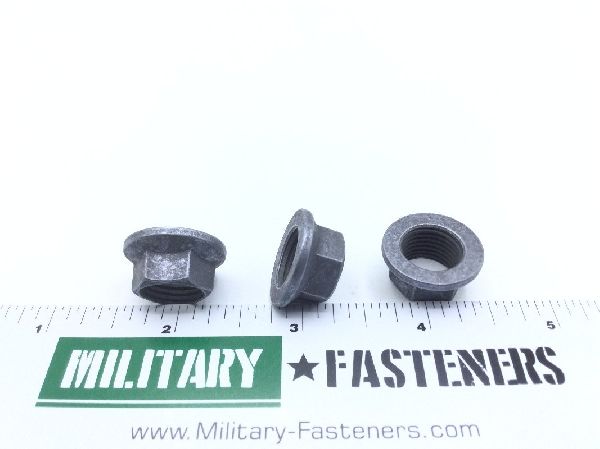

NAS1291-8 Self-Locking Extended Washer Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1291-8 Self-Locking Extended Washer Nut

Product Series
NAS
ECCN
EAR99
Schedule
8112.29.0000
Price per Unit $9.98
Units per Pack 5
Price per Pack $49.90
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:
Total Packs 1
Total Price $49.90
Add item to quote
Material
Steel
Surface Treatment
Qq-p-416 federal specification single treatment response
Thread Class
3b
Thread Series
Unjf (fine thread with external controlled root radius)
Thread Size
0.5 inches
Criticality Code Justification
Feat
Locking Feature
Prevailing torque all metal design
Nut Style
Hexagon
Overall Height
Between 0.35 inches and 0.41 inches
Special Features
Weapon system essential
Specification Data
80205-nas1291 professional/industrial association standard
Tempurature Rating
450 degrees fahrenheit
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
20
Washer Outside Diameter
0.814 inches
Washer Thickness
0.04 inches
Width Across Flats
Between 0.556 inches and 0.566 inches
Lubrication
Dry film lubricant
