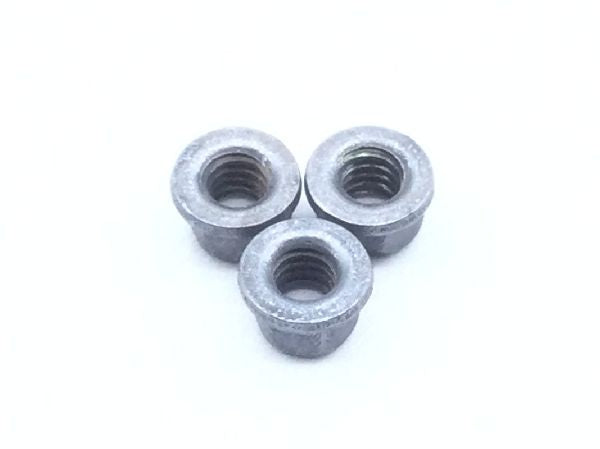

NAS1291C02M Self-Locking Extended Washer Nut

NAS1291C02M Self-Locking Extended Washer Nut (2)

NAS1291C02M Self-Locking Extended Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1291C02M Self-Locking Extended Washer Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Thread Class

3b

Thread Series

Unc (coarse thread)

Thread Size

0.086 inches

Locking Feature: Prevailing torque all metal design
Nut Style: Hexagon
Overall Height: Between 0.08 inches and 0.1 inches
Tempurature Rating: 550 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 56
Washer Outside Diameter: 0.169 inches
Washer Thickness: 0.035 inches
Width Across Flats: Between 0.122 inches and 0.127 inches
