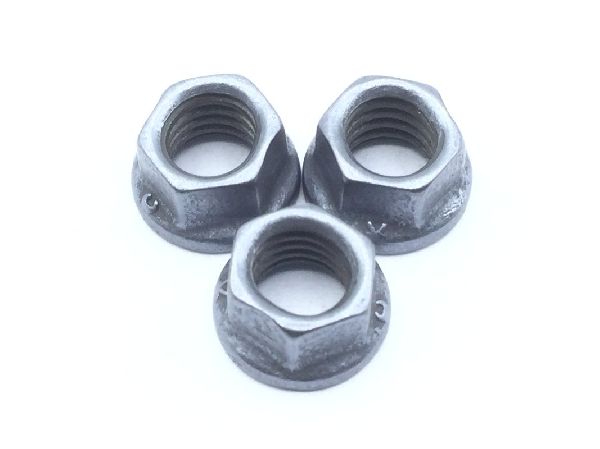

NAS1291C3M Self-Locking Extended Washer Nut
NAS1291C3M Self-Locking Extended Washer Nut (2)

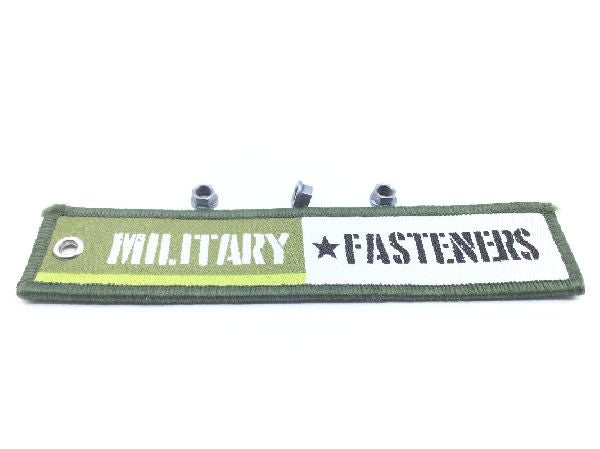

NAS1291C3M Self-Locking Extended Washer Nut (3)

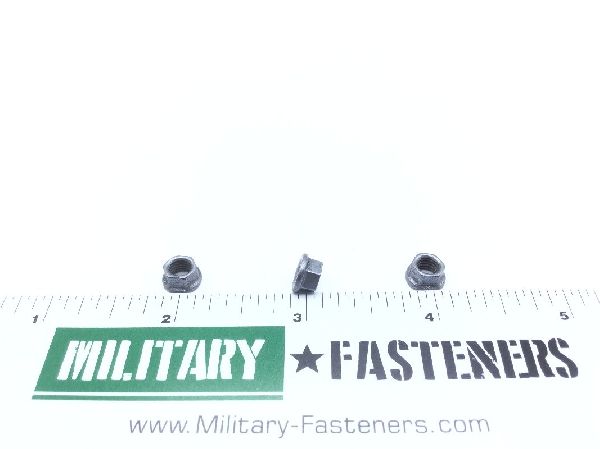

NAS1291C3M Self-Locking Extended Washer Nut (4)
NAS1291C3M Self-Locking Extended Washer Nut
NAS1291C3M Self-Locking Extended Washer Nut (2)
NAS1291C3M Self-Locking Extended Washer Nut (3)
NAS1291C3M Self-Locking Extended Washer Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1291C3M Self-Locking Extended Washer Nut

Product Series
NAS
ECCN
EAR99
Schedule
8112.29.0000
Price per Unit $1.90
Units per Pack 25
Price per Pack $47.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:
Total Packs 1
Total Price $47.50
Add item to quote
Material
Iron
Thread Class
3b
Thread Series
Unf (fine thread)
Thread Size
0.190 inches
Criticality Code Justification
Feat
Locking Feature
Prevailing torque all metal design
Material Specification
Ams 5735 assn standard single material response
Nut Style
Hexagon
Overall Height
Between 0.154 inches and 0.188 inches
Special Features
Fluorescent penetrant inspect
Tempurature Rating
450 degrees fahrenheit
Test Data Document
Etc.).
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
32
Washer Outside Diameter
0.330 inches
Washer Thickness
0.015 inches
Width Across Flats
Between 0.243 inches and 0.252 inches
Lubrication
Dry film lubricant
