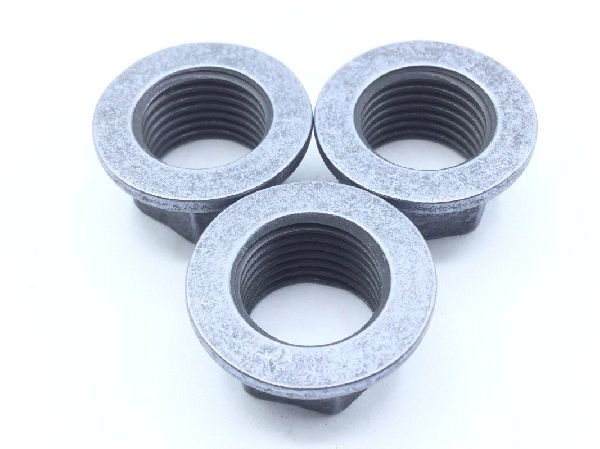

NAS1291C8M Self-Locking Extended Washer Nut

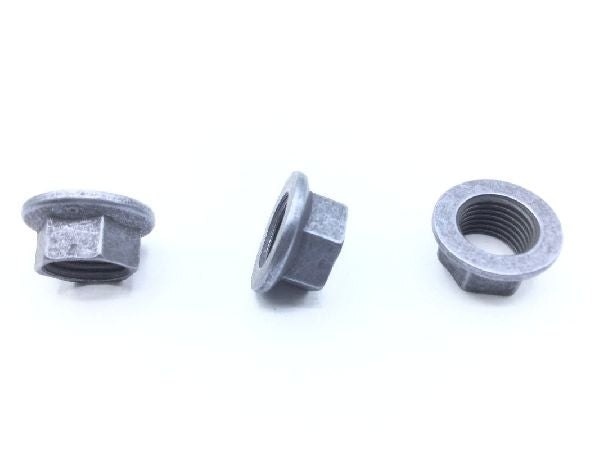

NAS1291C8M Self-Locking Extended Washer Nut (2)

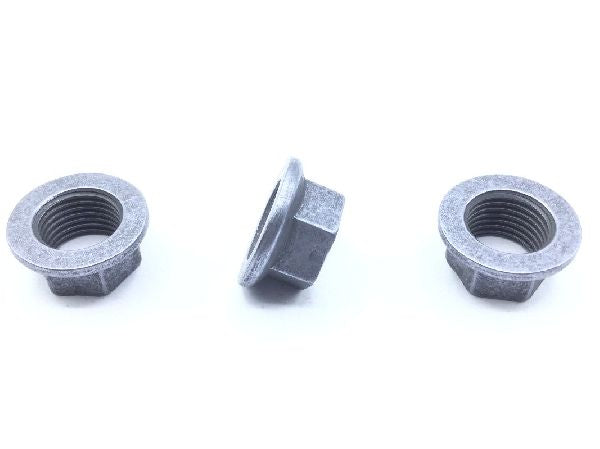

NAS1291C8M Self-Locking Extended Washer Nut (3)

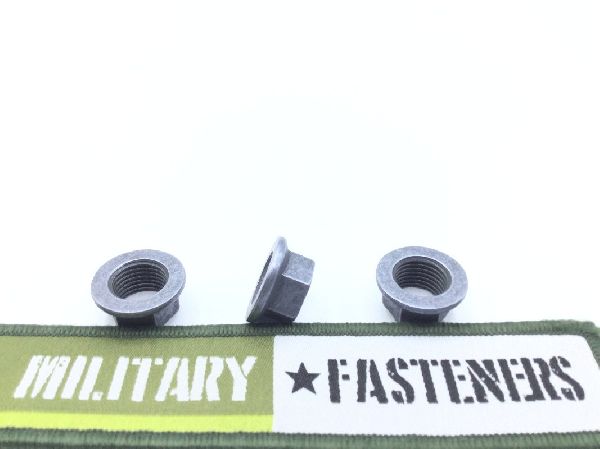

NAS1291C8M Self-Locking Extended Washer Nut (4)

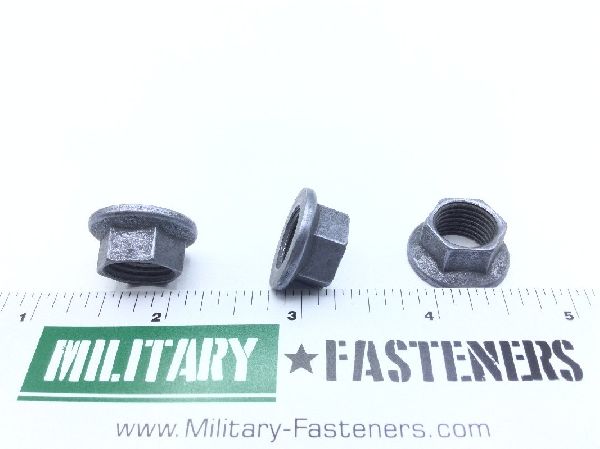

NAS1291C8M Self-Locking Extended Washer Nut (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1291C8M Self-Locking Extended Washer Nut

Product Series: NAS
ECCN: EAR99
Schedule: 8112.29.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.500 inches

Countersink Angle: 120.0 degrees nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5732 assn standard single material response or ams 5737 assn standard single material response or ams 5525 assn standard single material response
Nut Style: Hexagon
Overall Height: Between 0.350 inches and 0.410 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Washer Outside Diameter: 0.814 inches
Washer Thickness: 0.040 inches
Width Across Flats: Between 0.556 inches and 0.566 inches
Lubrication: Dry film lubricant
