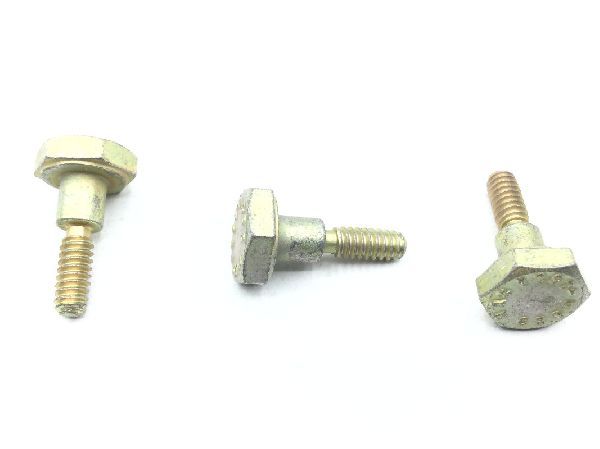

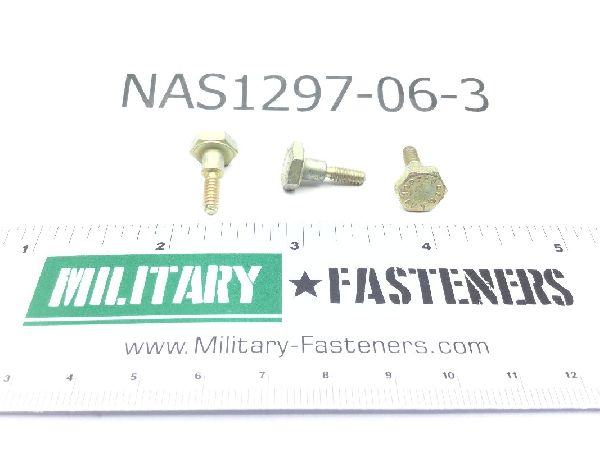

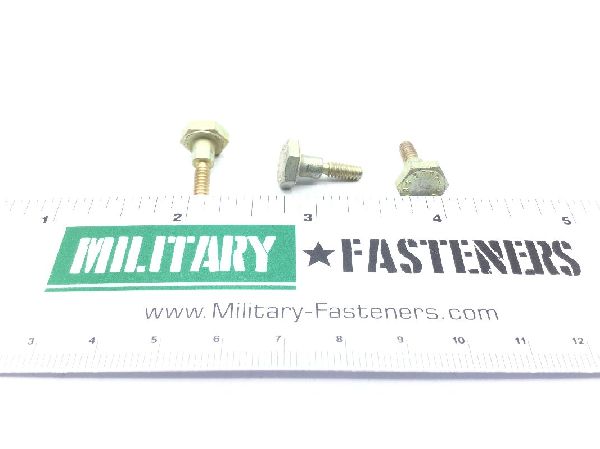

NAS1297-06-3 Shoulder Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $9.63

Units per Pack 5

Price per Pack $48.15

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $48.15

Add item to quote

Head Style

Hexagon

Material

Steel comp 4037 or steel comp 4130 or steel comp 8630 or steel comp 8735 or steel comp 8740 or steel comp 4140

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 0.550 inches and 0.590 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.109 inches and 0.141 inches
Internal Drive Style: W/o internal drive
Min. Tensile Strength (psi): 125000 pounds per square inch
Shoulder Diameter: 0.186 inches first shoulder and 0.189 inches first shoulder
Shoulder Length: 0.198 inches first shoulder and 0.208 inches first shoulder
Shoulder Shape: Round first shoulder
Specification Data: 80205-nas1297 professional/industrial association standard
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.342 inches and 0.392 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.365 inches and 0.377 inches
