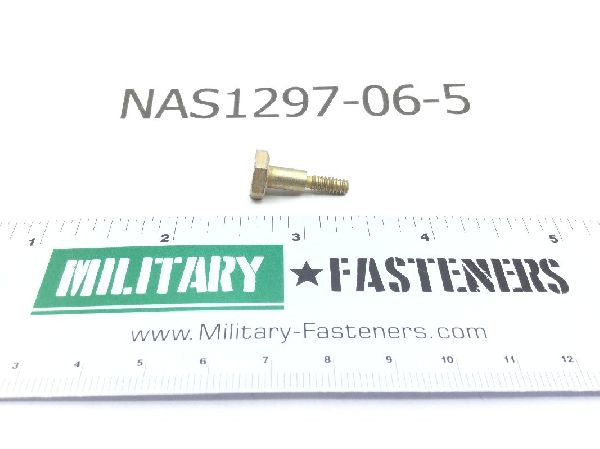

NAS1297-06-5 Shoulder Bolt

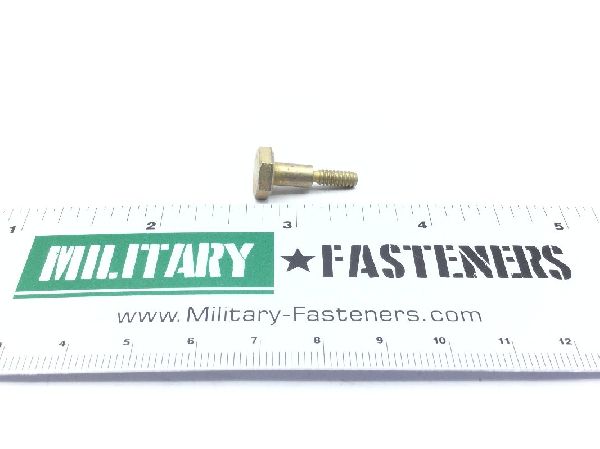

NAS1297-06-5 Shoulder Bolt (2)

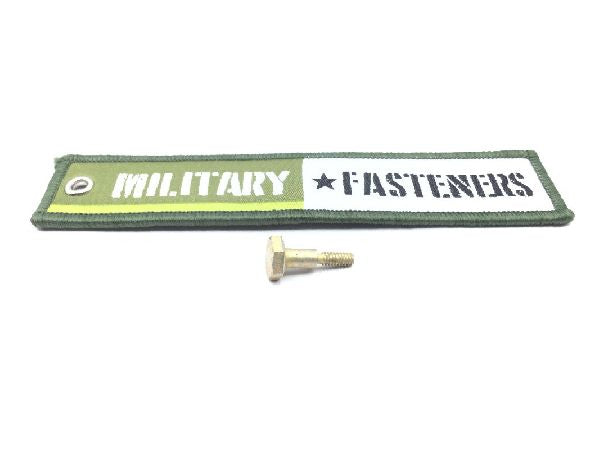

NAS1297-06-5 Shoulder Bolt (3)

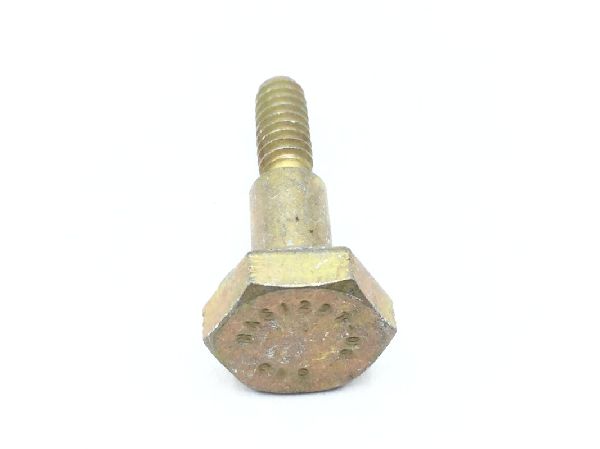

NAS1297-06-5 Shoulder Bolt (4)
NAS1297-06-5 Shoulder Bolt
NAS1297-06-5 Shoulder Bolt (2)
NAS1297-06-5 Shoulder Bolt (3)
NAS1297-06-5 Shoulder Bolt (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1297-06-5 Shoulder Bolt

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.8085
Price per Unit $41.58
Units per Pack 1
Price per Pack $41.58
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:
Total Packs 1
Total Price $41.58
Add item to quote
Head Style
Hexagon
Material
Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037
Surface Treatment
cl 2 federal specification single treatment response ty ii qq-p-416
Thread Class
3a
Fastener Length
Between 0.674 inches and 0.714 inches
Head Height
Between 0.109 inches and 0.141 inches
Internal Drive Style
W/o internal drive
Shoulder Diameter
0.186 inches first shoulder and 0.189 inches first shoulder
Shoulder Length
0.322 inches first shoulder
Shoulder Shape
Round first shoulder
Thread Diameter
0.1380 inches
Thread Direction
Right-hand
Thread Length
0.362 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unjc
Width Between Flats
Between 0.365 inches and 0.377 inches
