NAS1297-3-10 Shoulder Bolt

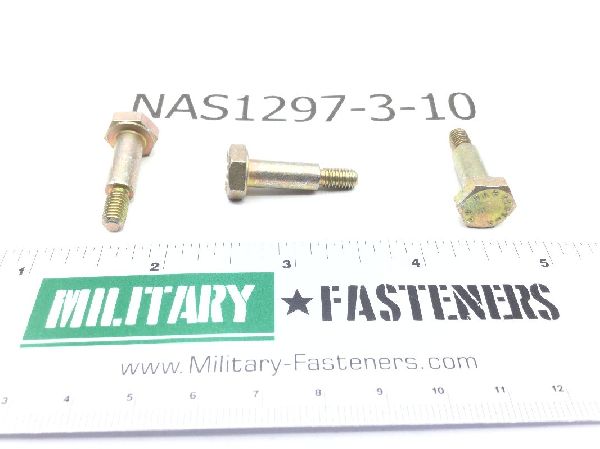

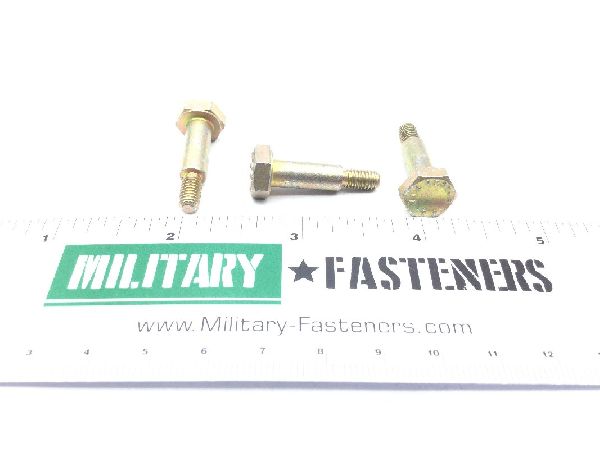

NAS1297-3-10 Shoulder Bolt (2)

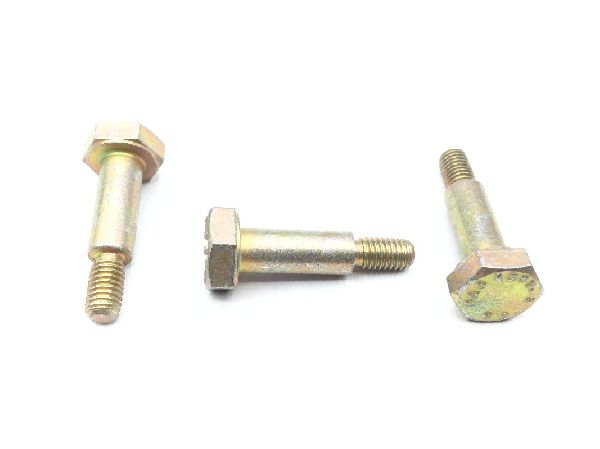

NAS1297-3-10 Shoulder Bolt (3)
NAS1297-3-10 Shoulder Bolt
NAS1297-3-10 Shoulder Bolt (2)
NAS1297-3-10 Shoulder Bolt (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1297-3-10 Shoulder Bolt

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.8085
Price per Unit $9.98
Units per Pack 5
Price per Pack $49.90
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:
Total Packs 1
Total Price $49.90
Add item to quote
Head Style
Hexagon
Material
Steel
Thread Class
3a
Fastener Length
Between 0.987 inches and 1.027 inches
Hardness Rating
26.0 rockwell c and 32.0 rockwell c
Head Height
Between 0.140 inches and 0.172 inches
Min. Tensile Strength (psi)
125000 pounds per square inch
Shoulder Diameter
0.2460 inches first shoulder and 0.2490 inches first shoulder
Shoulder Length
0.635 inches first shoulder and 0.655 inches first shoulder
Shoulder Shape
Round first shoulder
Specification Data
80205-nas1297 professional/industrial association standard
Thread Diameter
0.190 inches
Thread Direction
Right-hand
Thread Length
0.362 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unf (fine thread)
Width Between Flats
Between 0.428 inches and 0.440 inches
