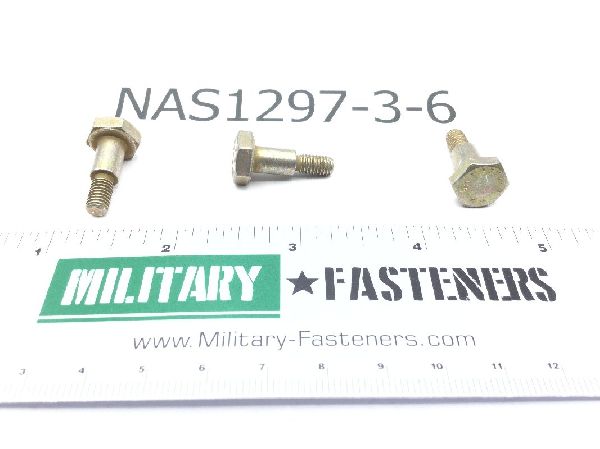

NAS1297-3-6 Shoulder Bolt

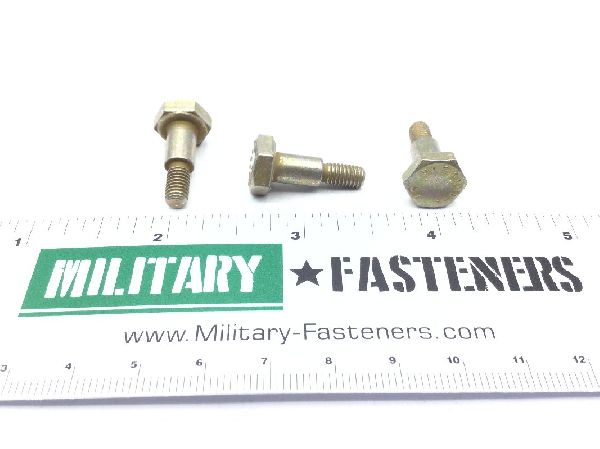

NAS1297-3-6 Shoulder Bolt (2)

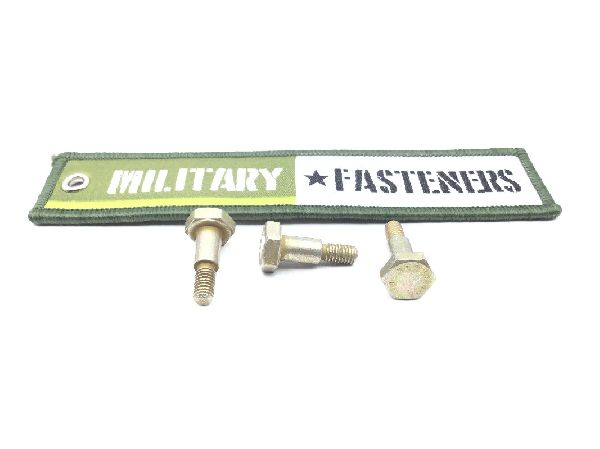

NAS1297-3-6 Shoulder Bolt (3)

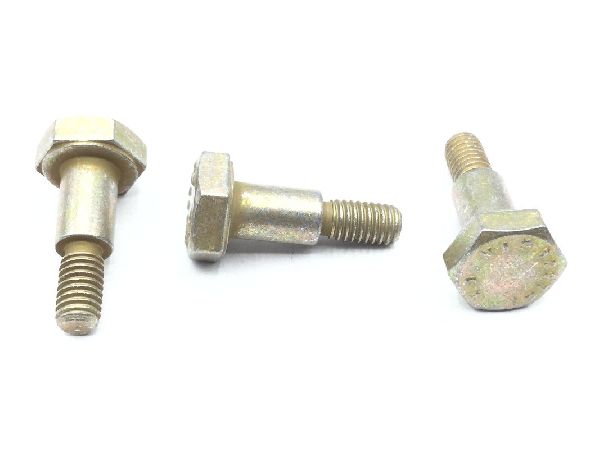

NAS1297-3-6 Shoulder Bolt (4)
NAS1297-3-6 Shoulder Bolt
NAS1297-3-6 Shoulder Bolt (2)
NAS1297-3-6 Shoulder Bolt (3)
NAS1297-3-6 Shoulder Bolt (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1297-3-6 Shoulder Bolt

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.8085
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Hexagon
Material
Steel comp 4037 or steel comp 4130 or steel comp 8630 or steel comp 8735 or steel comp 8740 or steel comp 4140
Surface Treatment
Cl 3 federal specification all treatment responses qq-p-416 type 2
Thread Class
3a
Fastener Length
Between 0.737 inches and 0.777 inches
Head Height
Between 0.140 inches and 0.172 inches
Material Specification
Mil-b-6812 military specification all material responses
Shoulder Diameter
0.246 inches first shoulder and 0.249 inches first shoulder
Shoulder Length
0.385 inches first shoulder and 0.395 inches first shoulder
Shoulder Shape
Round first shoulder
Thread Diameter
0.190 inches
Thread Direction
Right-hand
Thread Length
Between 0.342 inches and 0.392 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unf (fine thread)
Width Between Flats
Between 0.428 inches and 0.440 inches
