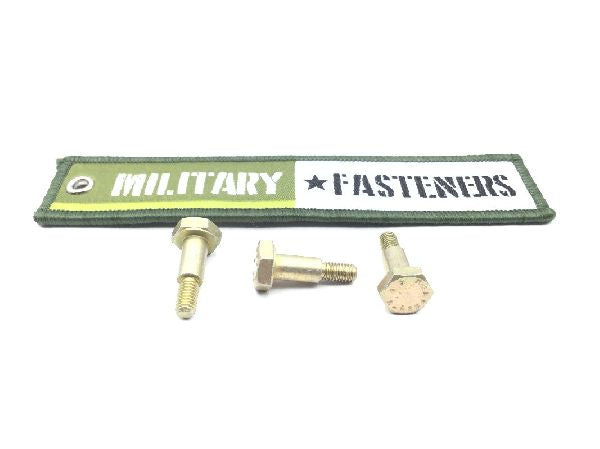

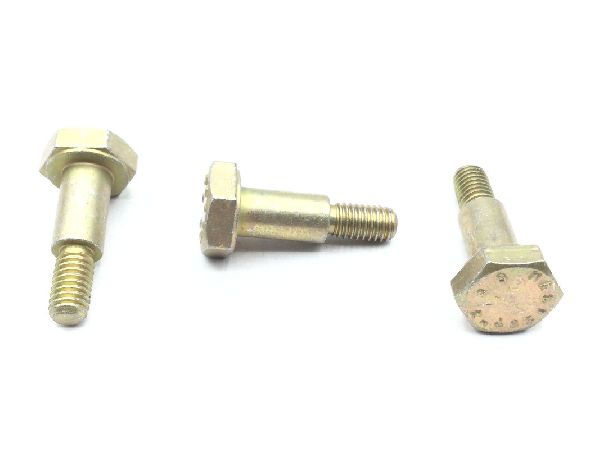

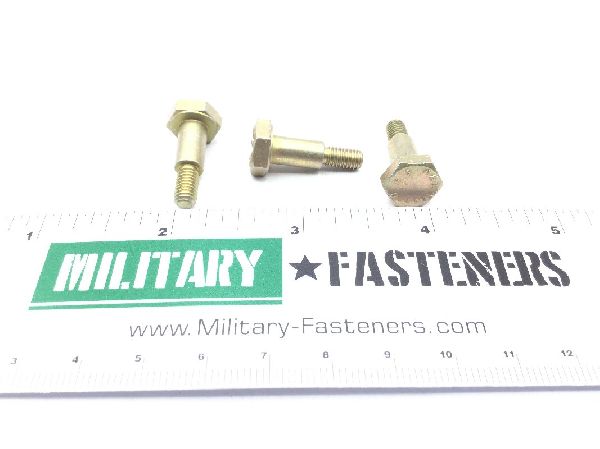

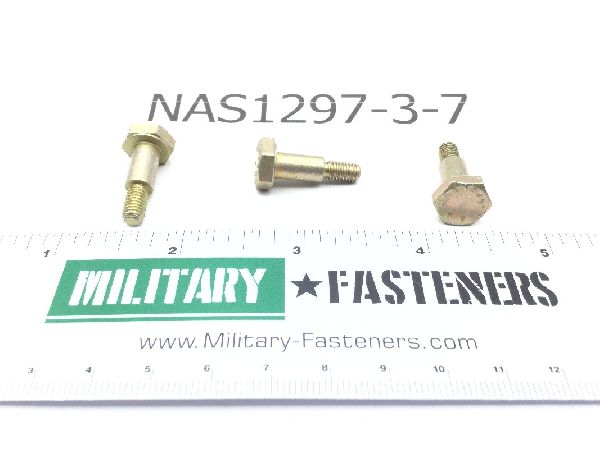

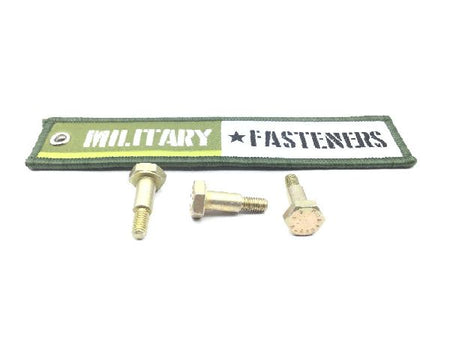

NAS1297-3-7 Shoulder Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $8.24

Units per Pack 5

Price per Pack $41.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $41.20

Add item to quote

Head Style

Hexagon

Material

Steel comp

Thread Class

Fastener Length: Between 0.80 inches and 0.84 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.140 inches and 0.172 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shoulder Diameter: 0.246 inches first shoulder and 0.249 inches first shoulder
Shoulder Length: 0.448 inches first shoulder and 0.458 inches first shoulder
Shoulder Shape: Round first shoulder
Specification Data: 80205-nas1297 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.280 inches and 0.361 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.428 inches and 0.440 inches
