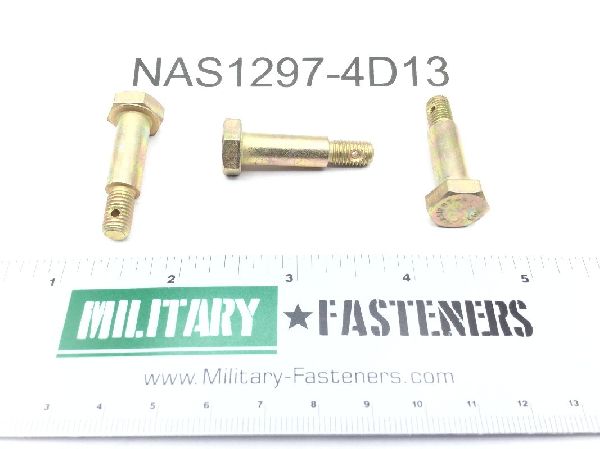

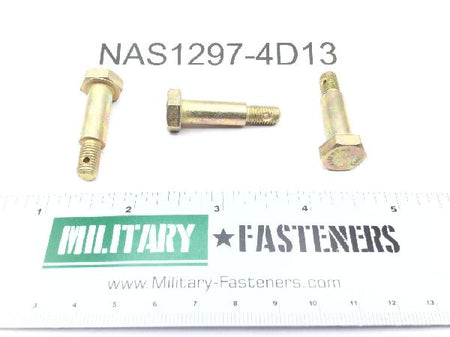

NAS1297-4D13 Shoulder Bolt

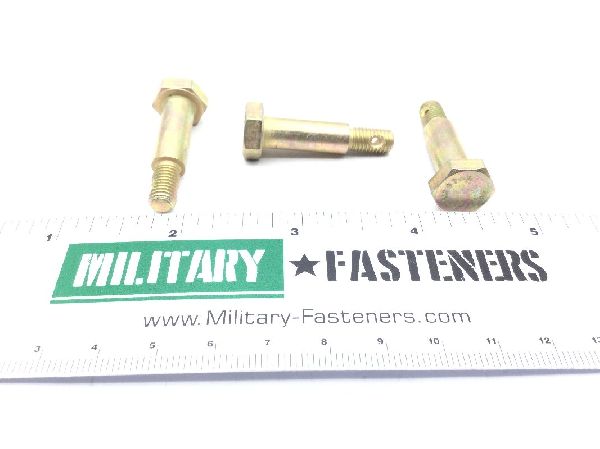

NAS1297-4D13 Shoulder Bolt (2)
NAS1297-4D13 Shoulder Bolt (3)
NAS1297-4D13 Shoulder Bolt
NAS1297-4D13 Shoulder Bolt (2)
NAS1297-4D13 Shoulder Bolt (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1297-4D13 Shoulder Bolt

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.8085
Price per Unit $14.70
Units per Pack 5
Price per Pack $73.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:
Total Packs 1
Total Price $73.50
Add item to quote
Head Style
Hexagon
Material
Steel
Surface Treatment
cl 1 federal specification single treatment response ty ii qq-p-416
Thread Class
3a
Distance From Head Largest Bearing Surface To Shank Hole Center
1.097 inches first hole
Fastener Length
Between 1.265 inches and 1.305 inches
Head Height
Between 0.172 inches and 0.204 inches
Shank Unthreaded Hole Diameter
0.076 inches first hole
Shoulder Diameter
0.309 inches first shoulder and 0.312 inches first shoulder
Shoulder Length
0.822 inches first shoulder
Shoulder Shape
Round first shoulder
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
0.453 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unjf (fine thread with external controlled root radius)
Width Between Flats
Between 0.490 inches and 0.502 inches
