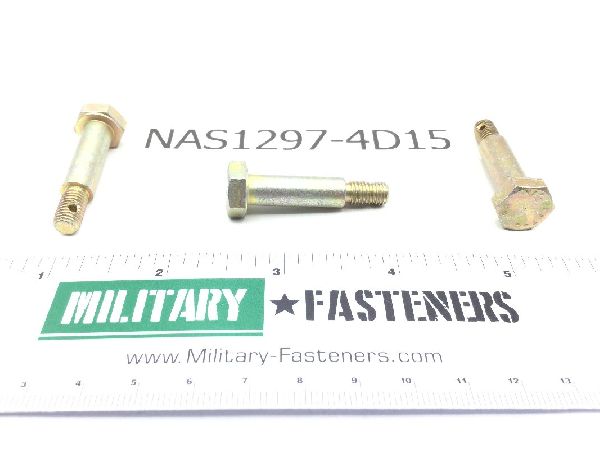

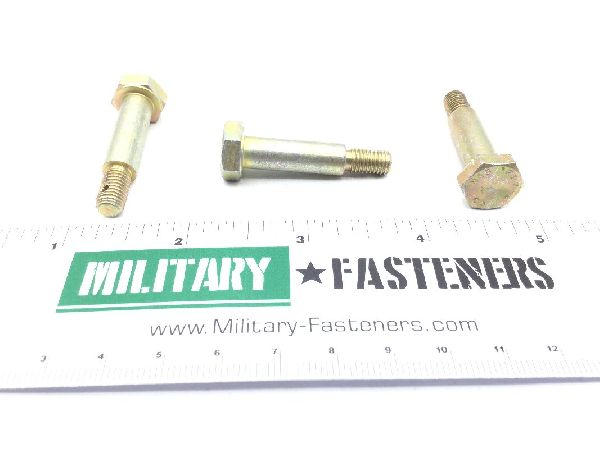

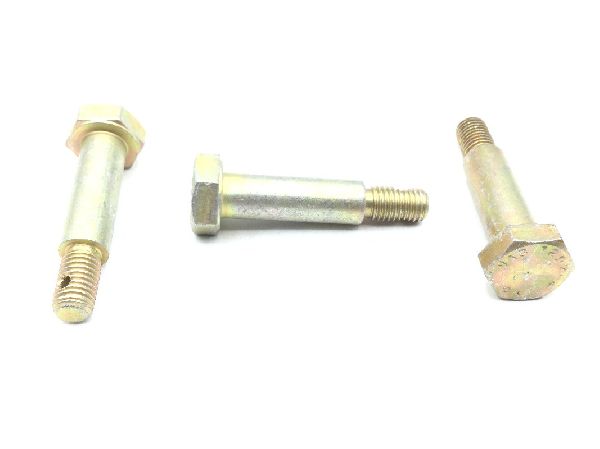

NAS1297-4D15 Shoulder Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $22.62

Units per Pack 5

Price per Pack $113.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $113.10

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Class 2 federal specification all treatment responses type 2 qq-p-416

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 1.203 inches first hole and 1.263 inches first hole
Fastener Length: Between 1.391 inches and 1.431 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.172 inches and 0.204 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole and 0.086 inches first hole
Shoulder Diameter: 0.309 inches first shoulder and 0.312 inches first shoulder
Shoulder Length: 0.948 inches first shoulder and 0.968 inches first shoulder
Shoulder Shape: Round first shoulder
Specification Data: 80205-nas1297 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.352 inches and 0.448 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.490 inches and 0.502 inches
