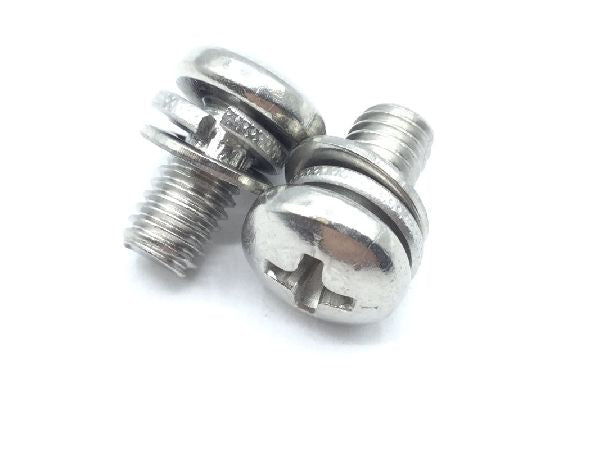

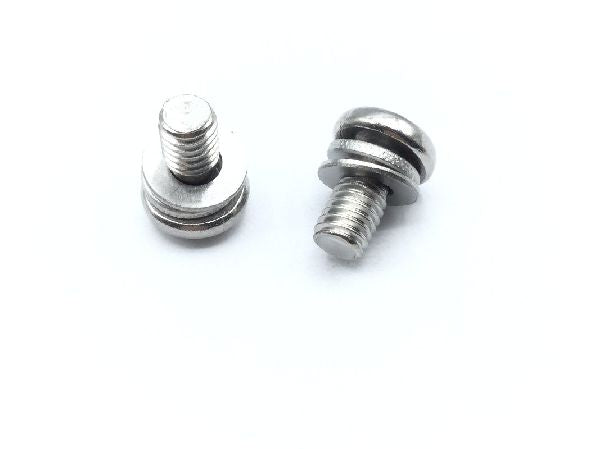

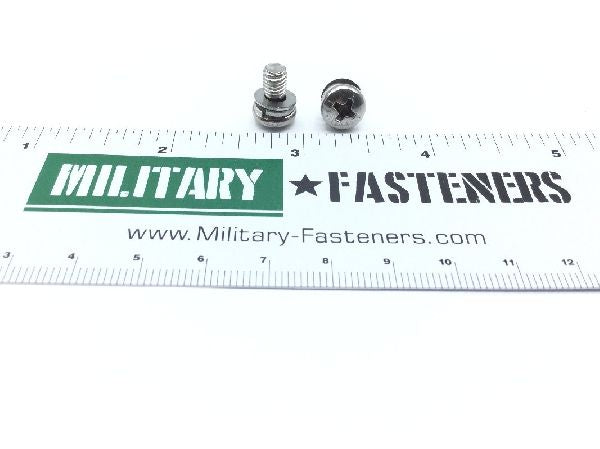

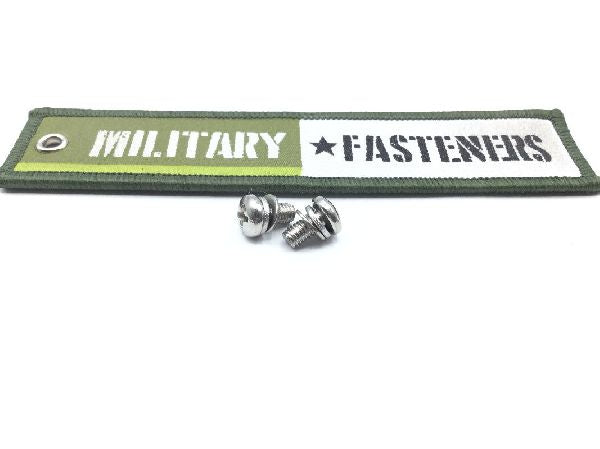

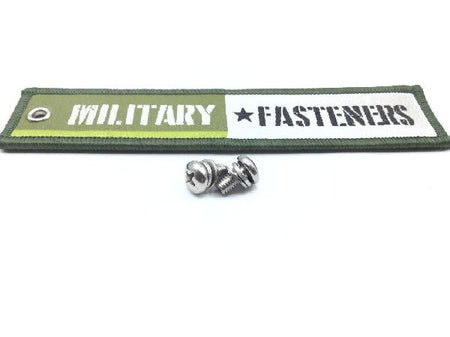

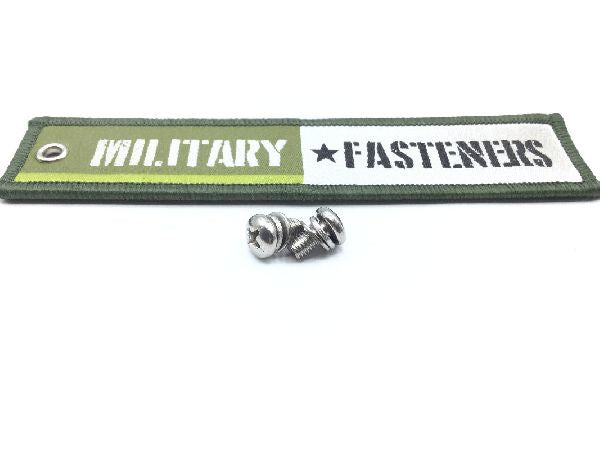

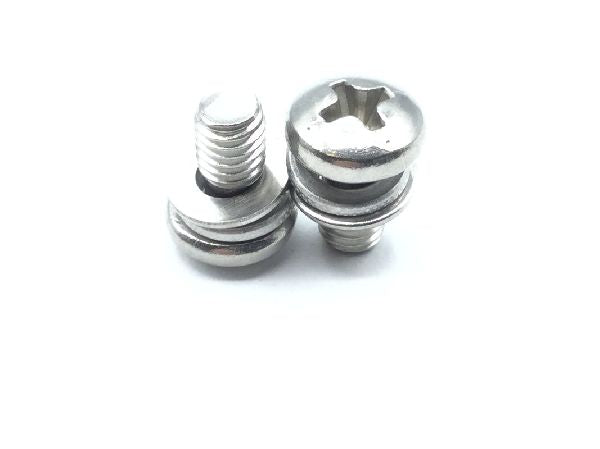

NAS1301C10-6 Assembled Washer Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Head Style

Pan no. 2

Material

Steel

Thread Class

Fastener Length: Between 0.343 inches and 0.375 inches
Head Height: Between 0.338 inches and 0.348 inches
Internal Drive Style: Cross recess type 1
Material Specification: Qq-s-763 class 4 federal specification all material responses fastener or mil-s-7720 military specification 1st material response fastener
Primary Washer Material Thickness: Between 0.029 inches and 0.035 inches
Primary Washer Outside Diameter: 0.334 inches
Primary Washer Style: Split helical ring
Secondary Washer Material Thickness: Between 0.029 inches and 0.035 inches
Secondary Washer Outside Diameter: Between 0.338 inches and 0.348 inches
Secondary Washer Relationship To Primary Washer: Not identical
Secondary Washer Style: Flat
Specification Data: 80205-nas1301 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.203 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Washer Quantity: 2
Head Diameter: Between 0.357 inches and 0.373 inches
