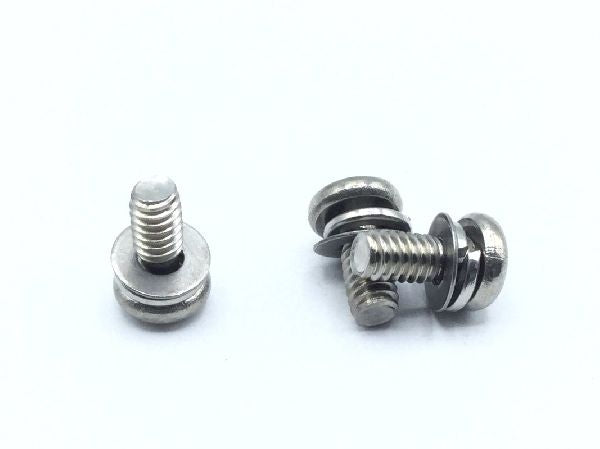

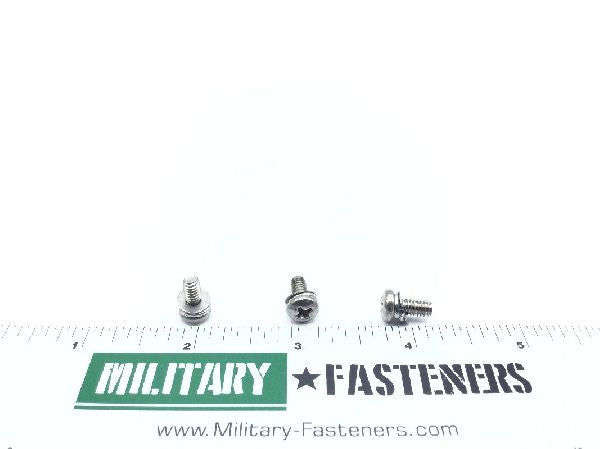

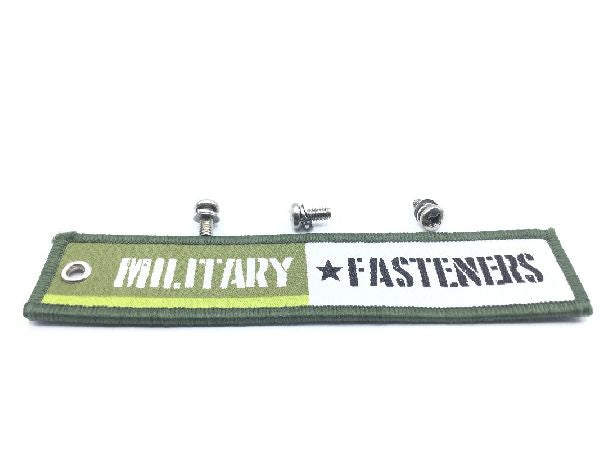

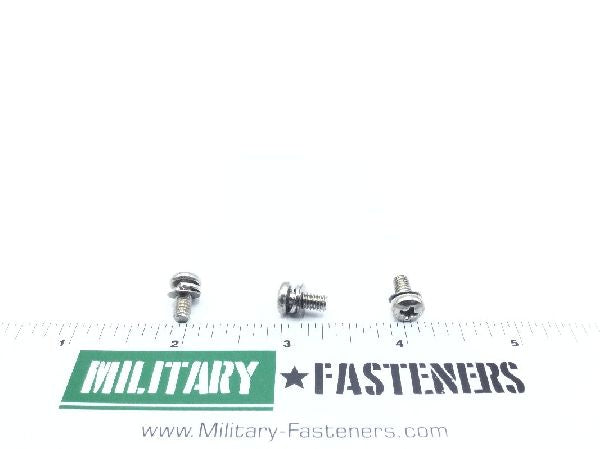

NAS1301C8-6 Assembled Washer Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan

Material

Steel comp 302 secondary washer or steel comp 304 secondary washer

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.343 inches and 0.375 inches
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-5059 military specification all material responses secondary washer
Primary Washer Material Thickness: 0.040 inches
Primary Washer Outside Diameter: 0.293 inches
Primary Washer Style: Split helical ring
Secondary Washer Material Thickness: Between 0.013 inches and 0.019 inches
Secondary Washer Outside Diameter: Between 0.307 inches and 0.317 inches
Secondary Washer Relationship To Primary Washer: Not identical
Secondary Washer Style: Flat
Specification Data: 80205-nas1301 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.264 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Washer Quantity: 2
Head Diameter: Between 0.306 inches and 0.322 inches
