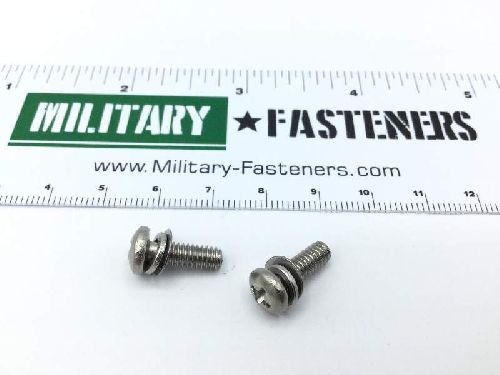

NAS1301C8-8 Assembled Washer Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $2.70

Units per Pack 25

Price per Pack $67.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $67.50

Add item to quote

Head Style

Pan

Material

Steel comp 430 or steel comp 303 or stainless steel or steel comp 301 or steel comp 302 or steel comp 304 or steel comp 316

Thread Class

Fastener Length: Between 0.468 inches and 0.500 inches
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Primary Washer Material Thickness: 0.040 inches
Primary Washer Outside Diameter: 0.296 inches
Primary Washer Style: Split helical ring
Secondary Washer Material Thickness: Between 0.013 inches and 0.019 inches
Secondary Washer Outside Diameter: Between 0.307 inches and 0.317 inches
Secondary Washer Relationship To Primary Washer: Not identical
Secondary Washer Style: Flat
Specification Data: 80205-nas1301 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.359 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Washer Quantity: 2
Head Diameter: Between 0.306 inches and 0.322 inches
