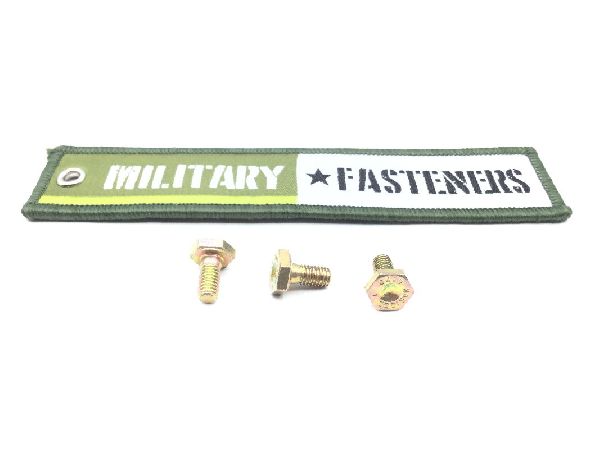

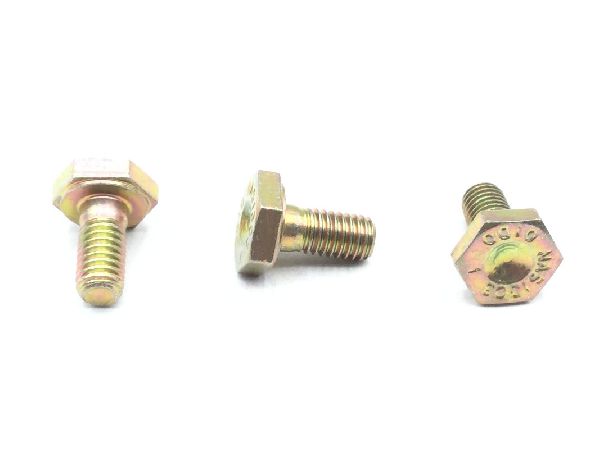

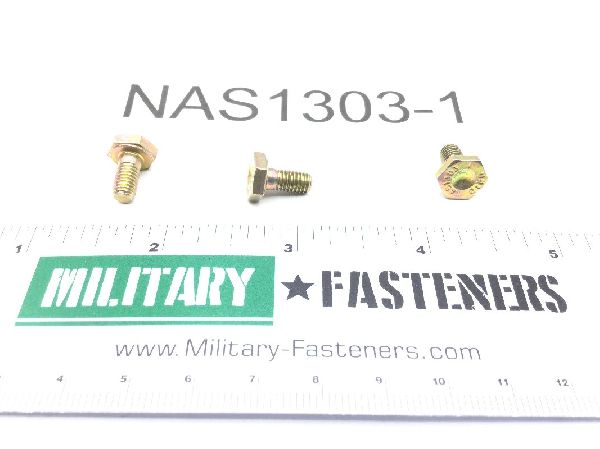

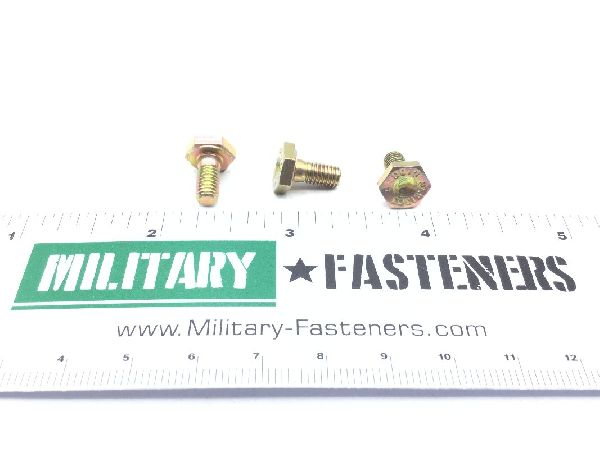

NAS1303-1 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $0.47

Units per Pack 100

Price per Pack $47.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $47.00

Add item to quote

Head Style

Dished hexagon

Material

Steel

Thread Class

Fastener Length: 0.400 inches
Grip Diameter: 0.190 inches
Grip Length: 0.072 inches
Head Height: 0.173 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.338 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.376 inches
