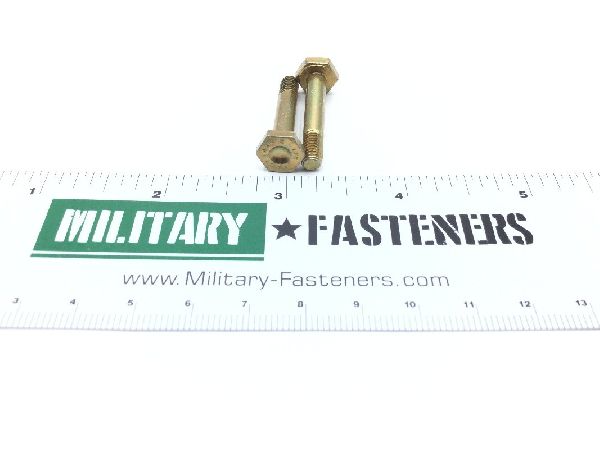

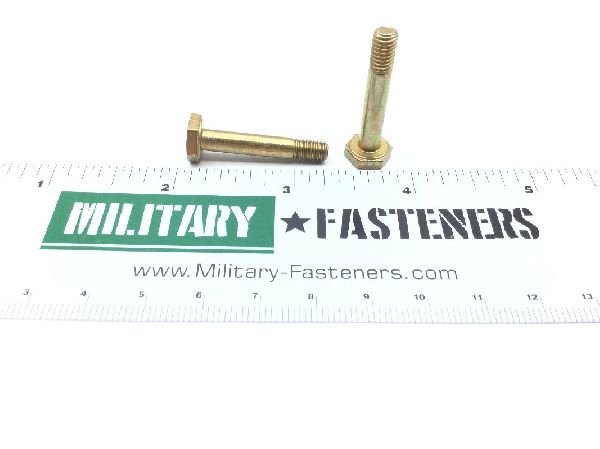

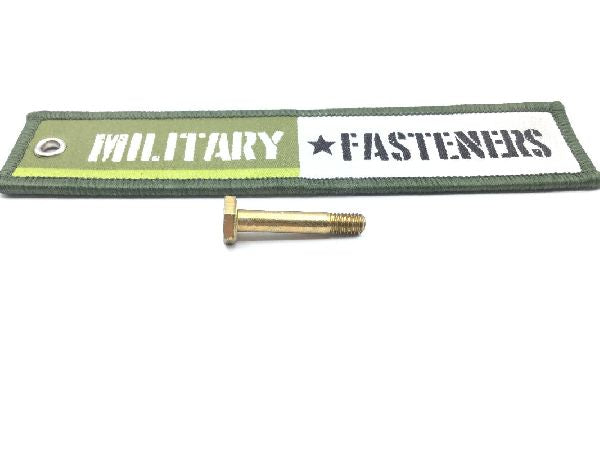

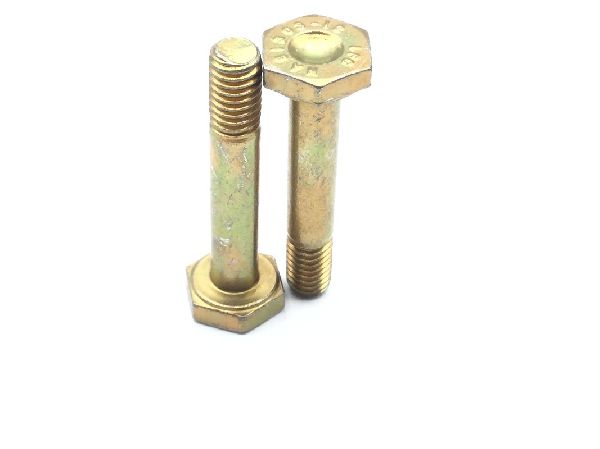

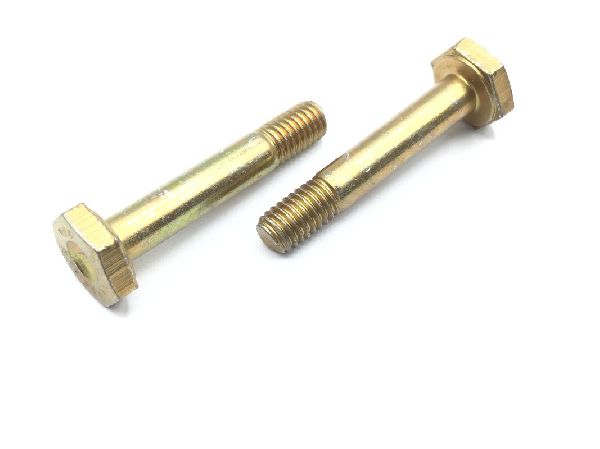

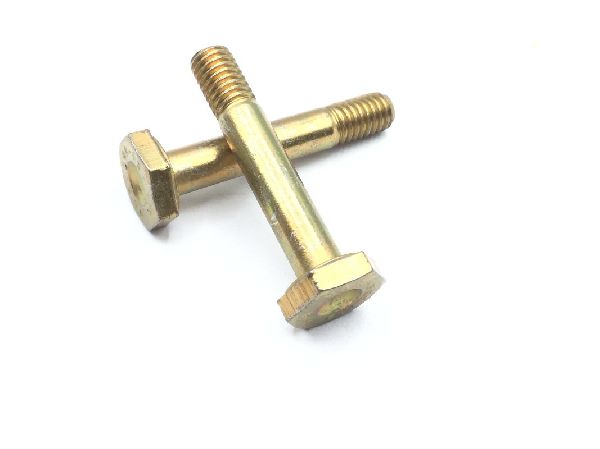

NAS1303-12 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $0.70

Units per Pack 50

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Dished hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 1.073 inches and 1.103 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.740 inches and 0.760 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.11 inches and 0.125 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1303 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.313 inches and 0.363 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
