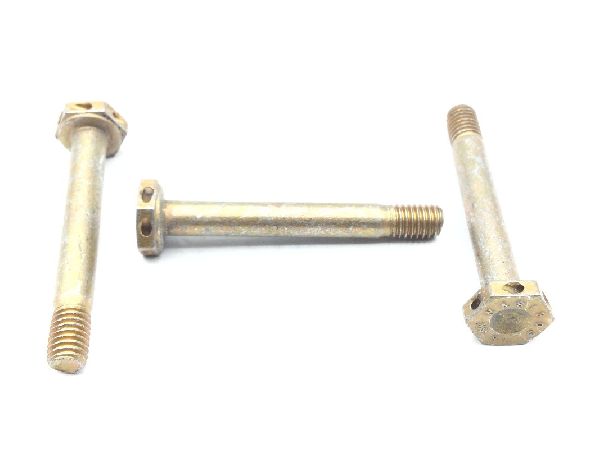

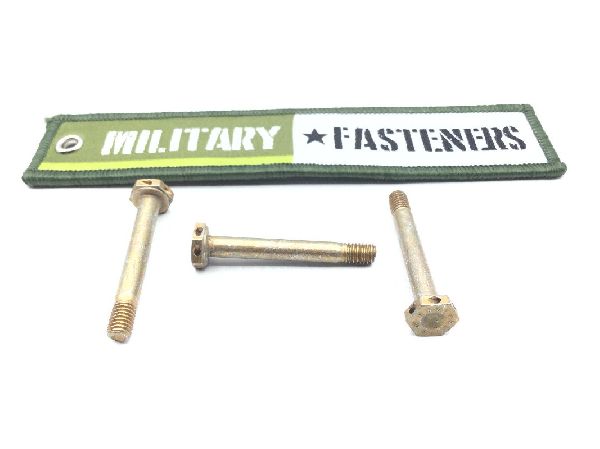

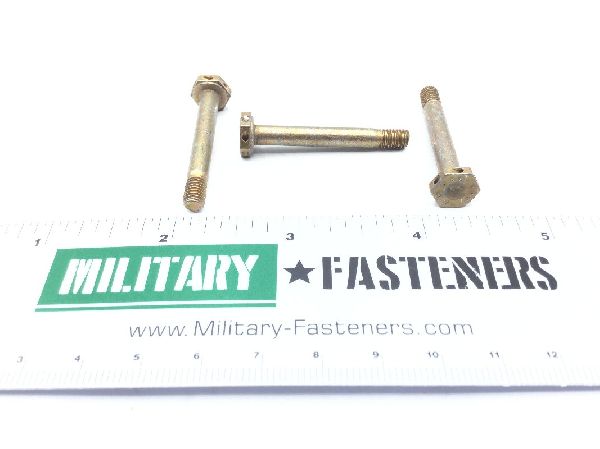

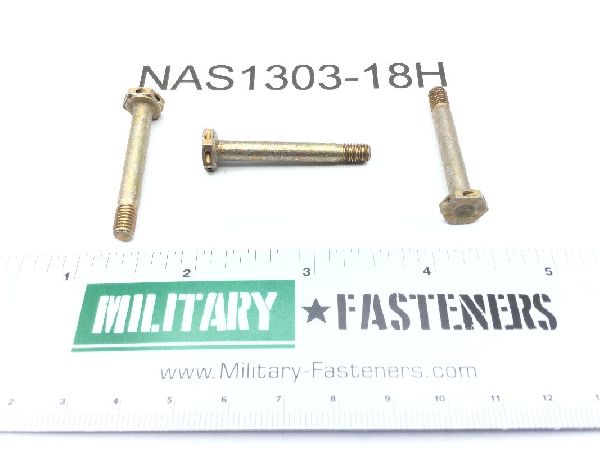

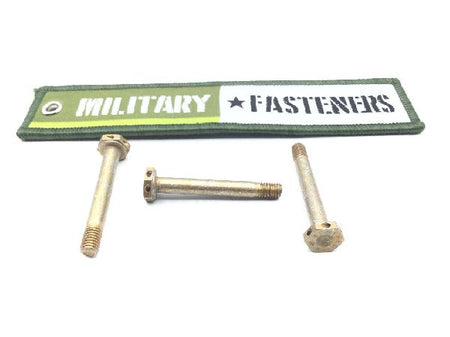

NAS1303-18H Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 1.448 inches and 1.478 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 1.115 inches and 1.135 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.110 inches and 0.125 inches
Hole Configuration Style: Hexagon corners
Hole Quantity: 3
Hole Type: Drilled
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1303 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.251 inches and 0.363 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
Hole Diameter: 0.046 inches
