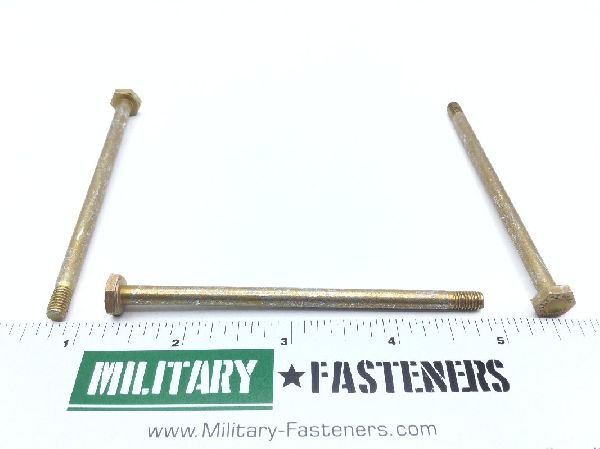

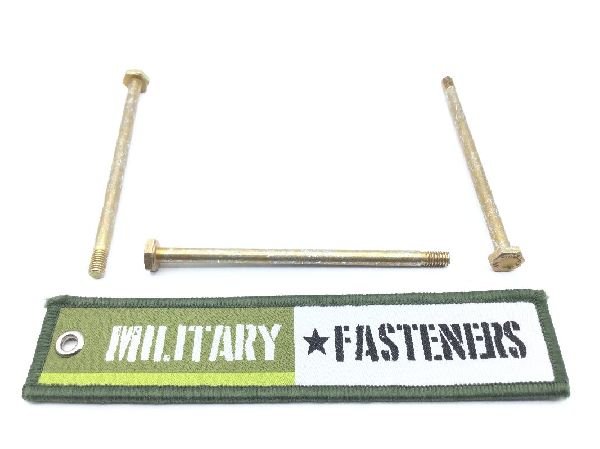

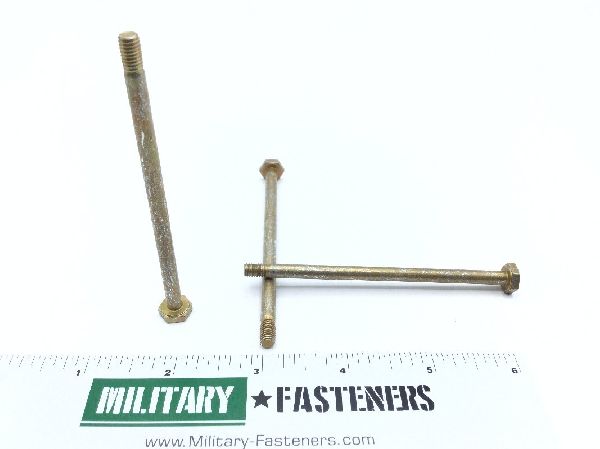

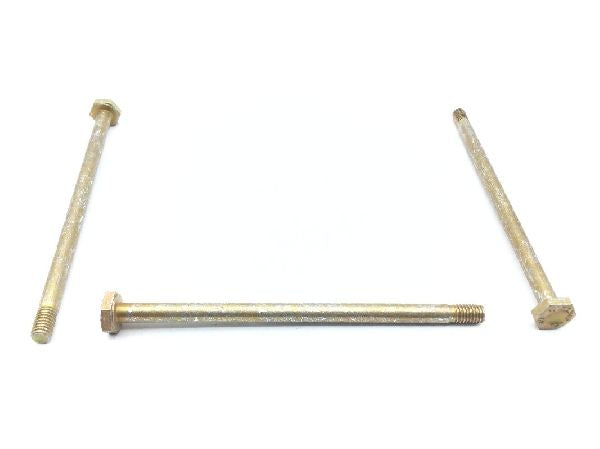

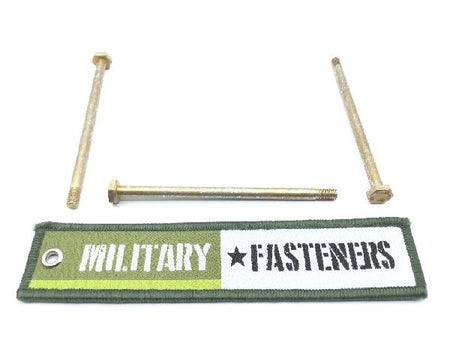

NAS1303-50 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $4.88

Units per Pack 10

Price per Pack $48.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.80

Add item to quote

Head Style

Dished hexagon

Material

Steel comp

Surface Treatment

Type 2 class 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: 3.463 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: 3.125 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.110 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1303 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.338 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.367 inches and 0.376 inches
