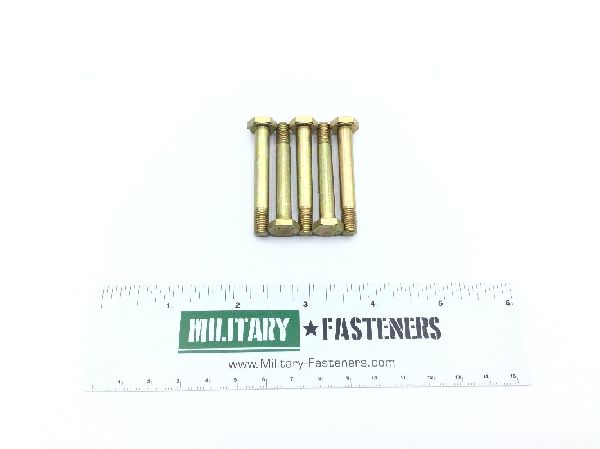

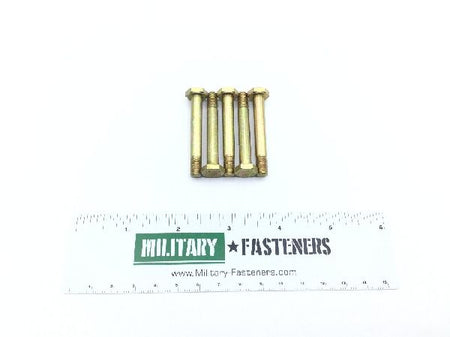

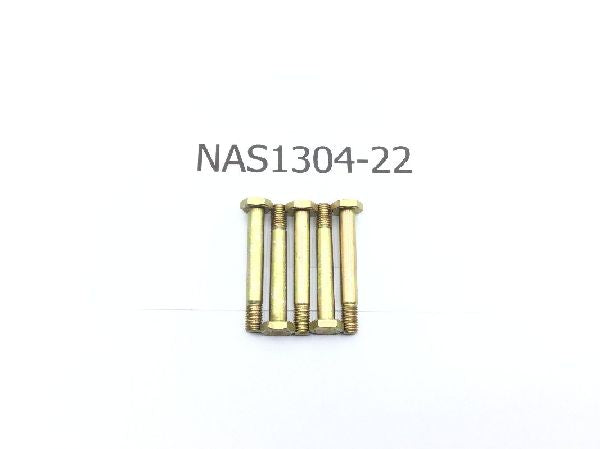

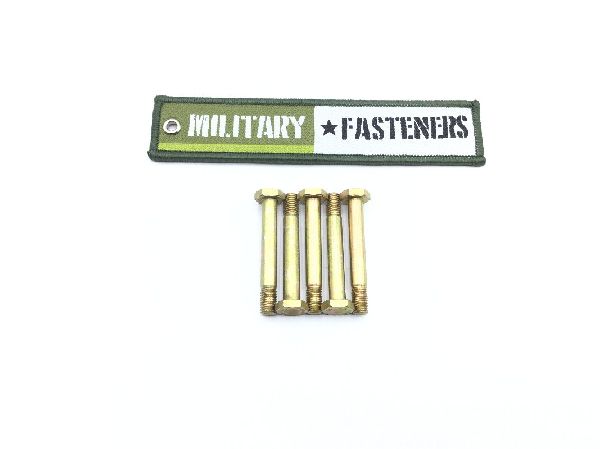

NAS1304-22 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $2.70

Units per Pack 20

Price per Pack $54.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $54.00

Add item to quote

Head Style

Dished hexagon

Material

Steel comp

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: 1.800 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: 1.375 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.125 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1304 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.425 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
