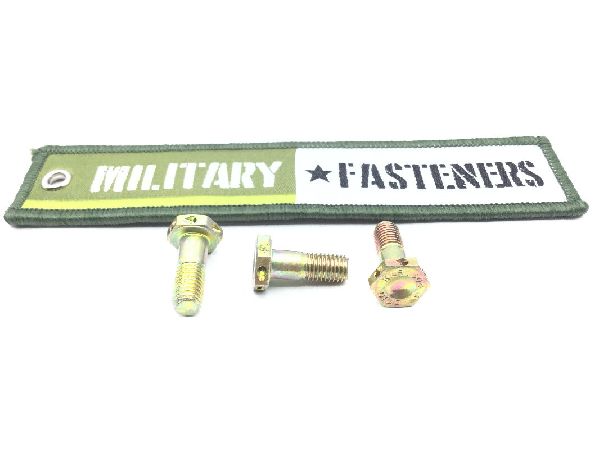

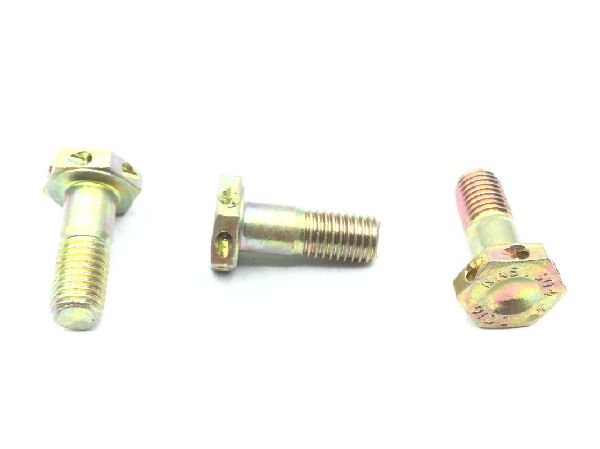

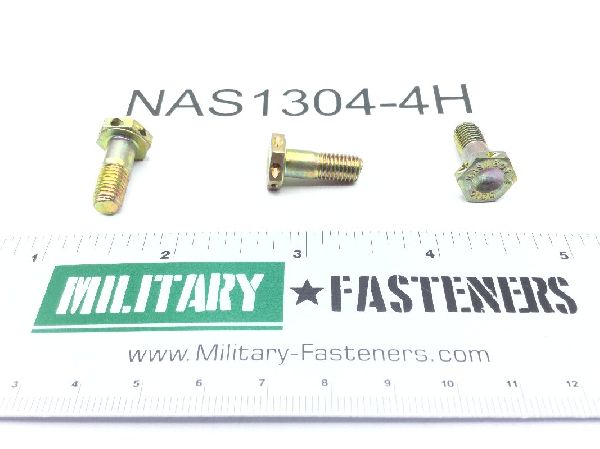

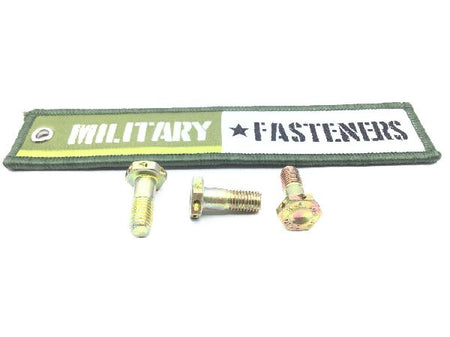

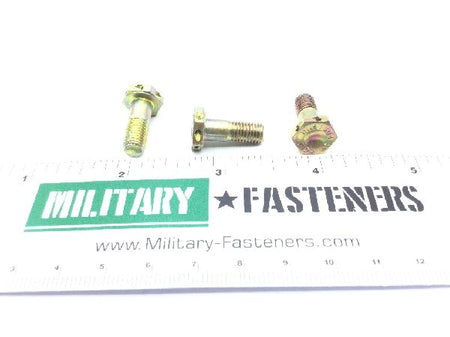

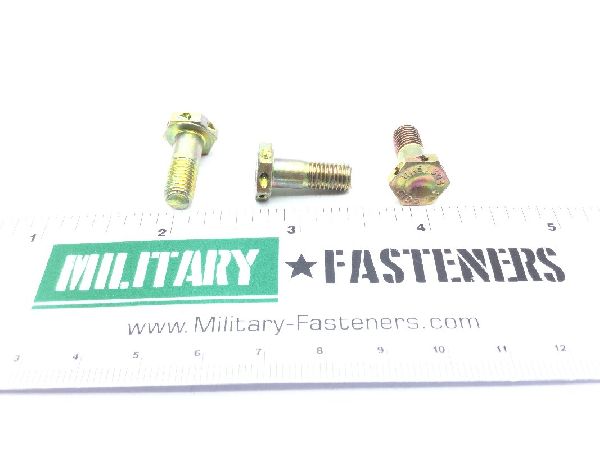

NAS1304-4H Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $6.86

Units per Pack 10

Price per Pack $68.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $68.60

Add item to quote

Head Style

Dished hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: 0.675 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: 0.250 inches
Hardness Rating: 34.0 rockwell c and 40.0 rockwell c
Head Height: 0.125 inches
Hole Configuration Style: Hexagon corners
Hole Quantity: 3
Hole Type: Drilled
Min. Tensile Strength (psi): 160000 pounds per square inch
Single Shear Strength: 96000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.425 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
Hole Diameter: 0.046 inches
