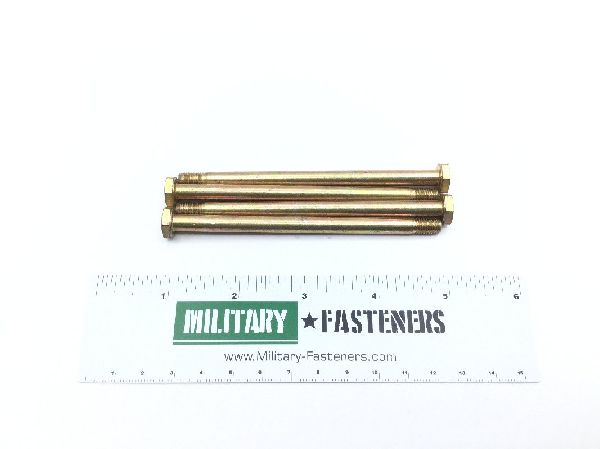

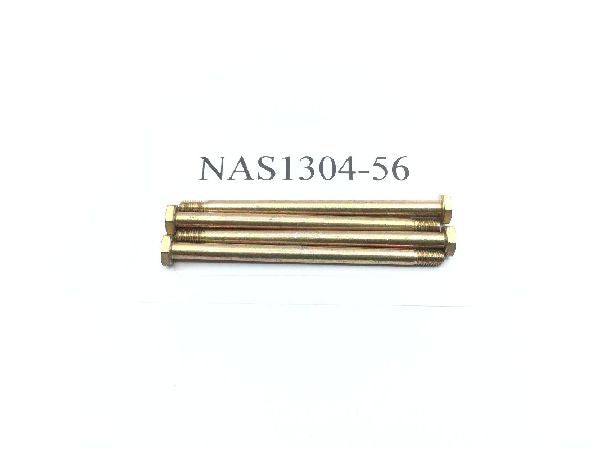

NAS1304-56 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

Fastener Length: Between 3.910 inches and 3.940 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 3.490 inches and 3.510 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.125 inches and 0.140 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1304 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.400 inches and 0.450 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
