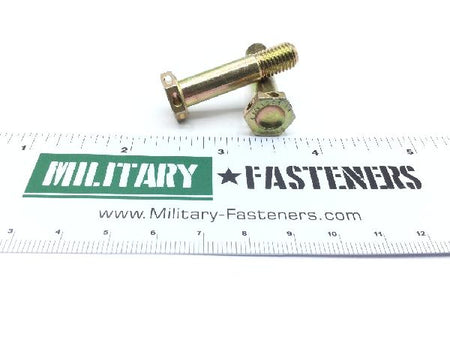

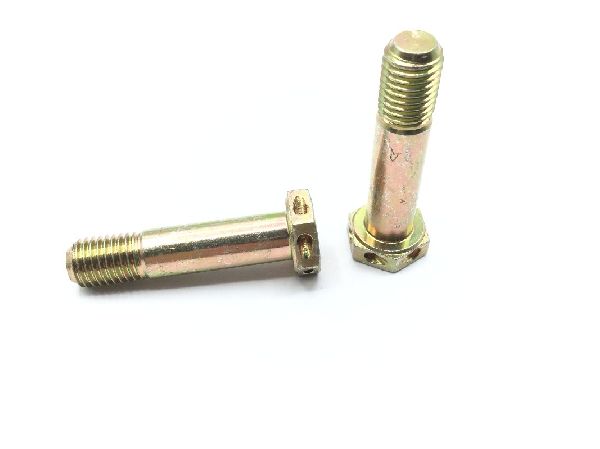

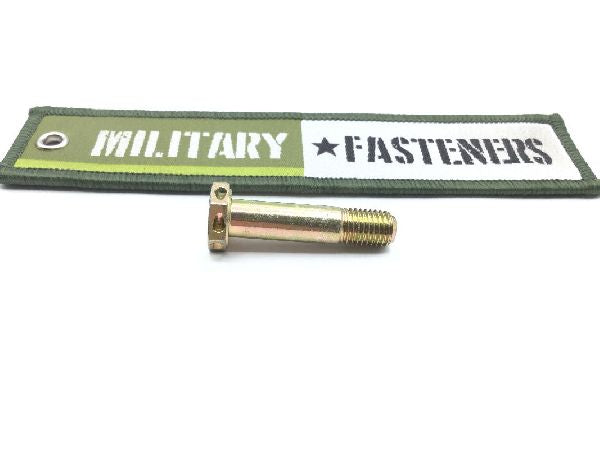

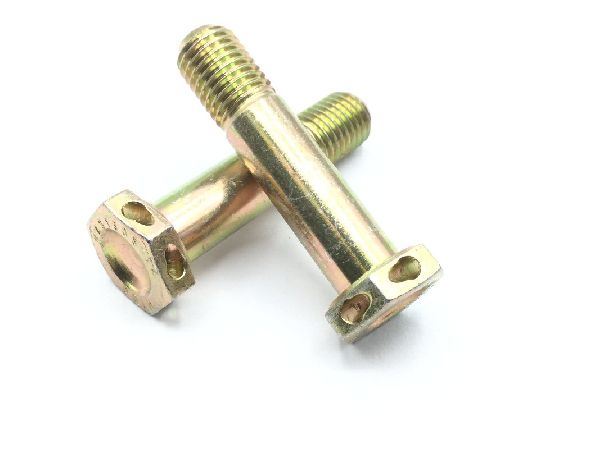

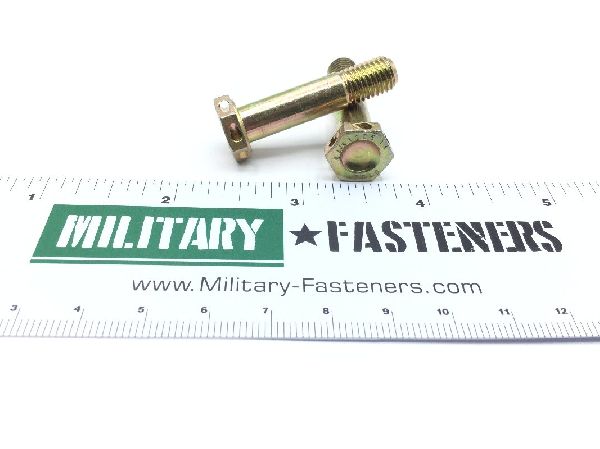

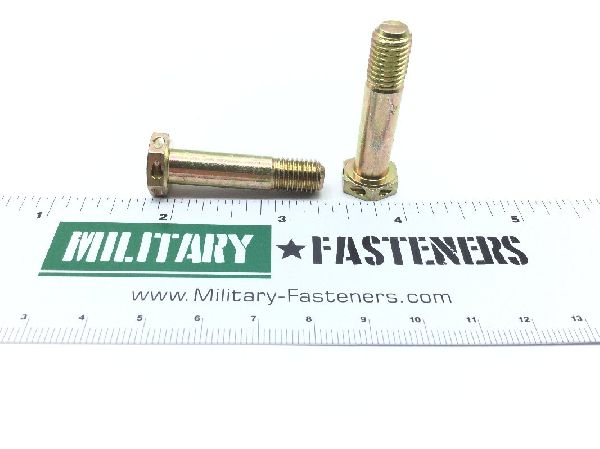

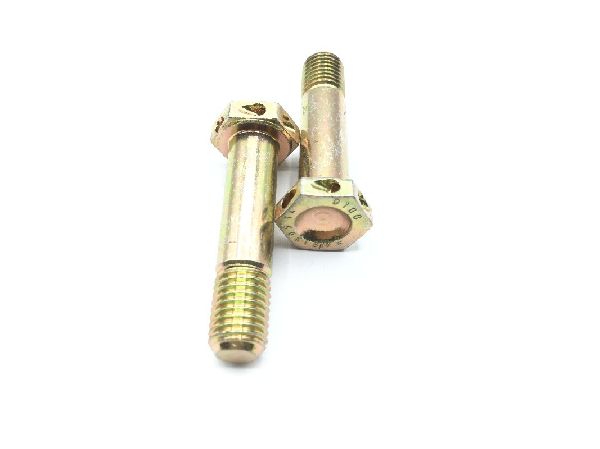

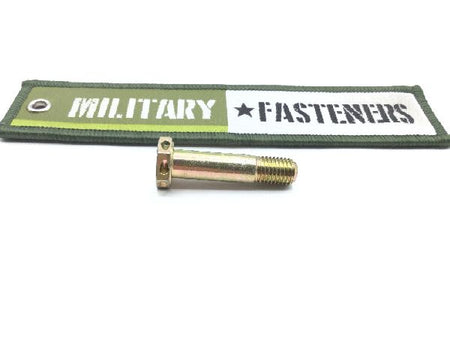

NAS1305-14H Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $24.87

Units per Pack 5

Price per Pack $124.35

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $124.35

Add item to quote

Head Style

Dished hexagon

Material

Steel comp

Surface Treatment

Type 2 class 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: 1.344 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: 0.875 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.156 inches
Hole Configuration Style: Hexagon corners
Hole Quantity: 3
Hole Type: Drilled
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.469 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.492 inches and 0.502 inches
Hole Diameter: 0.070 inches
