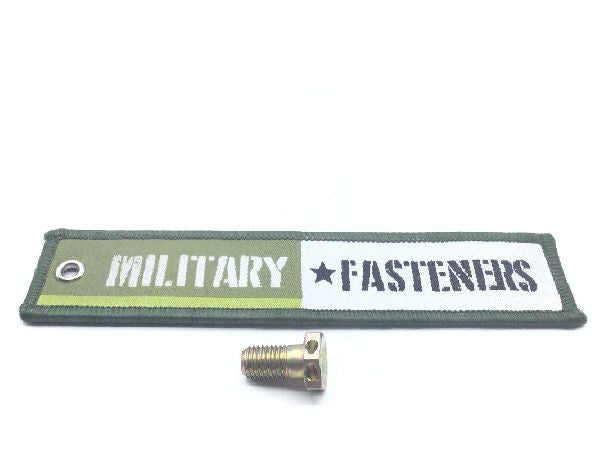

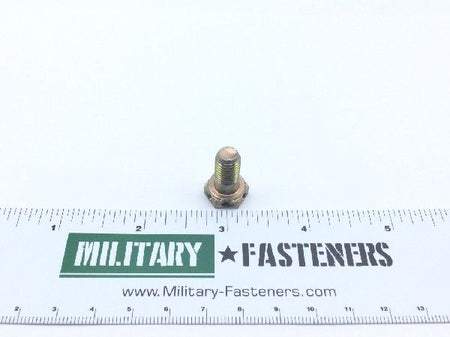

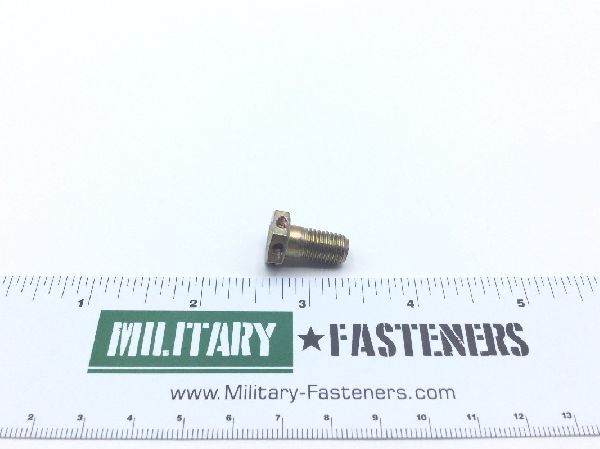

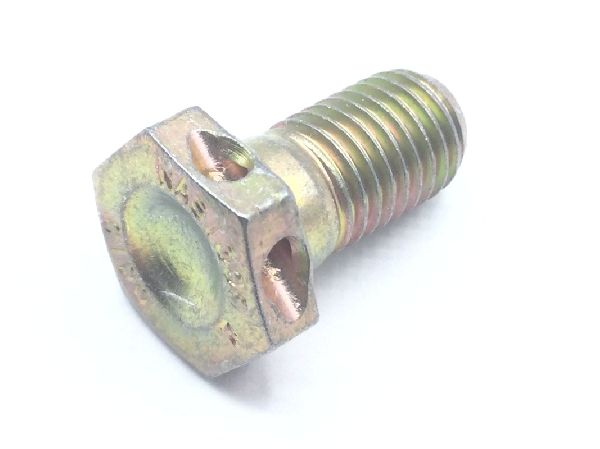

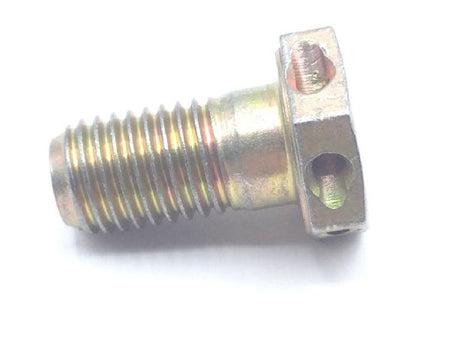

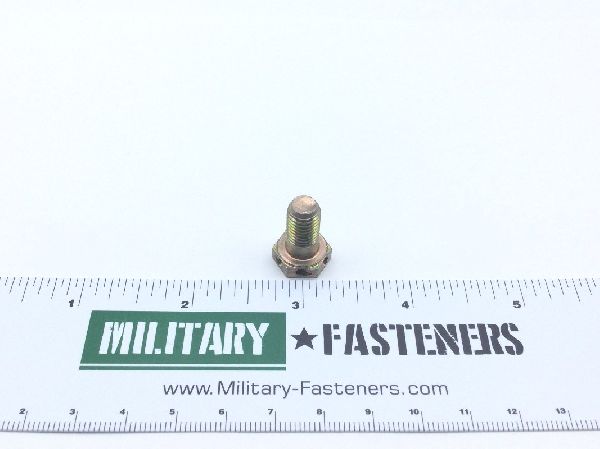

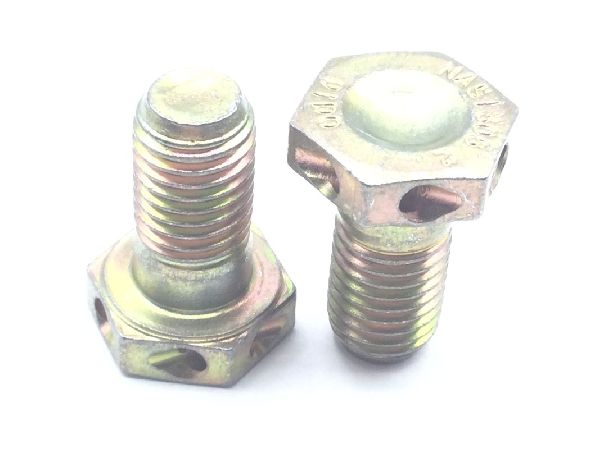

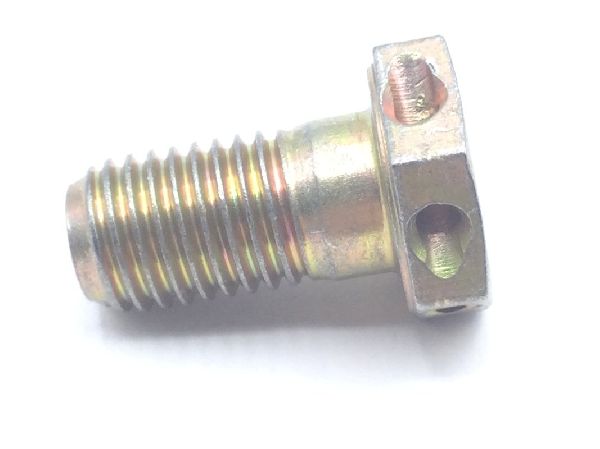

NAS1305-2H Machine Bolt

NSN: 5306-00-027-8103
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $3.50

Units per Pack 10

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Dished hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: Between 0.579 inches and 0.609 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 0.115 inches and 0.135 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.156 inches and 0.171 inches
Hole Configuration Style: Hexagon corners
Hole Quantity: 3
Hole Type: Drilled
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1305 professional/industrial association standard
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.361 inches and 0.494 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.492 inches and 0.502 inches
Hole Diameter: 0.070 inches
