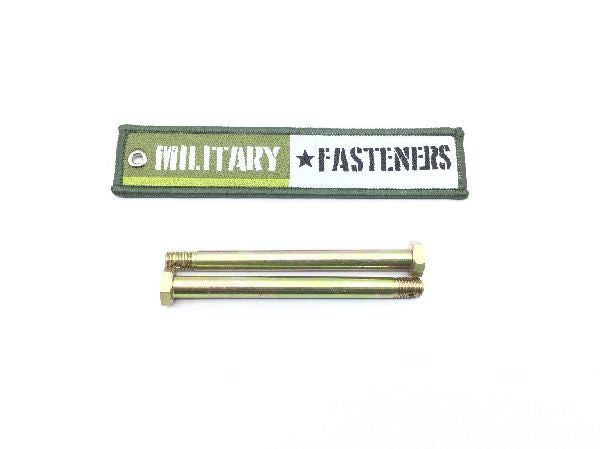

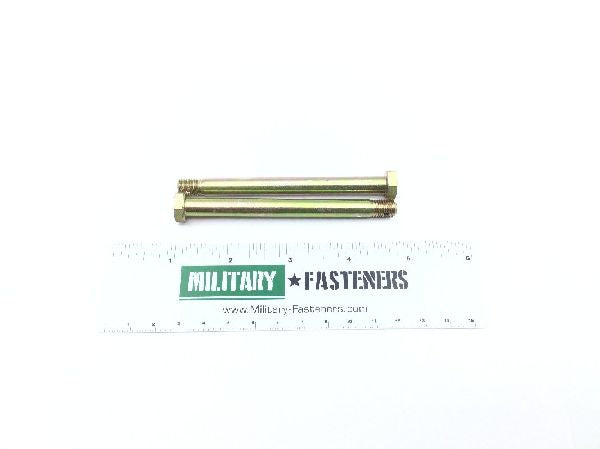

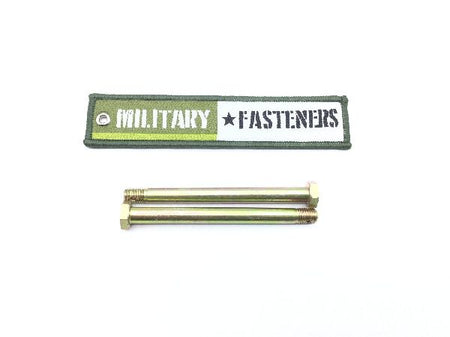

NAS1305-50D Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $10.05

Units per Pack 5

Price per Pack $50.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $50.25

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Class 2 federal specification single treatment response qq-p-416 type 2

Thread Class

Fastener Length: Between 3.479 inches and 3.609 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: Between 3.115 inches and 3.135 inches
Hardness Rating: 32.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.156 inches and 0.171 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1305-50d professional/industrial association standard
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.444 inches and 0.494 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.502 inches
