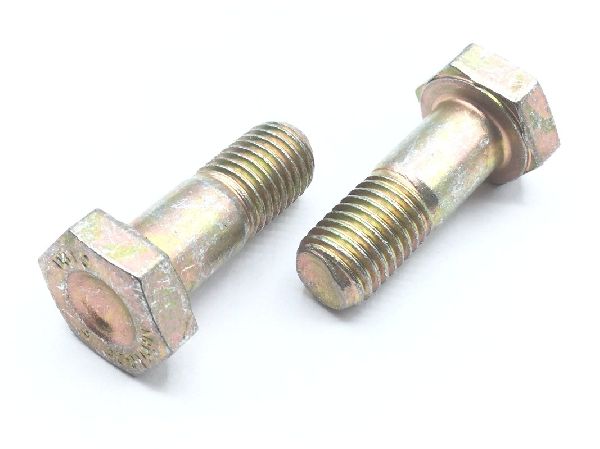

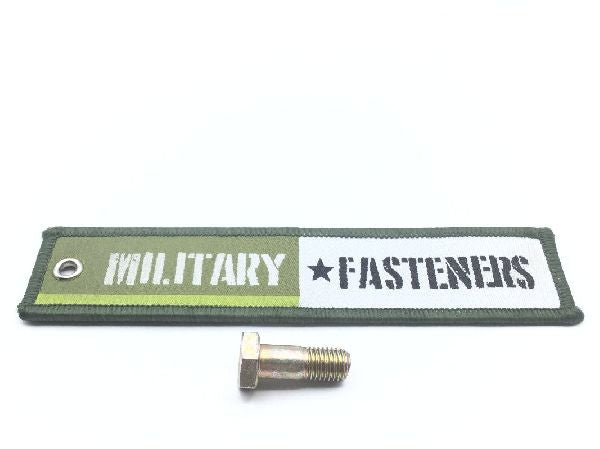

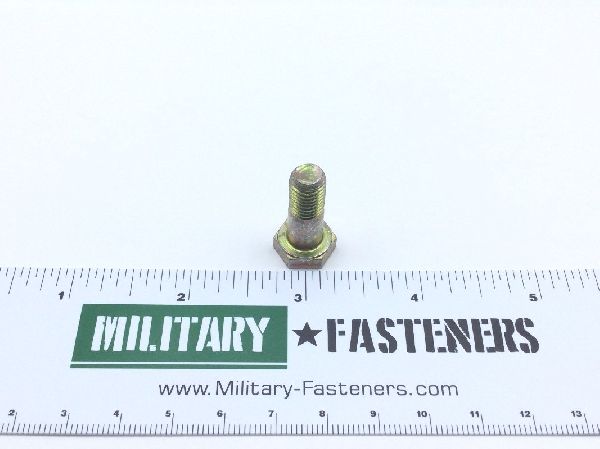

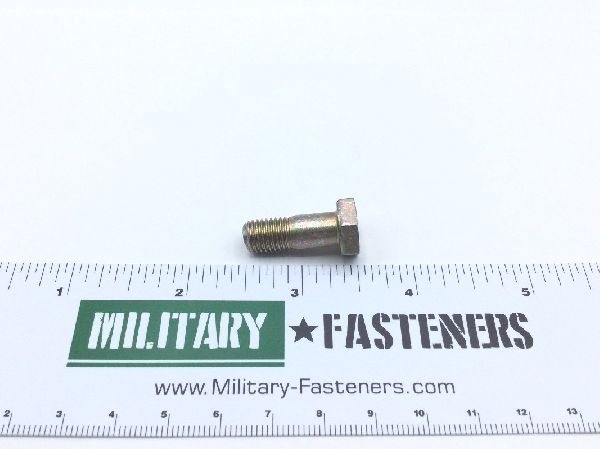

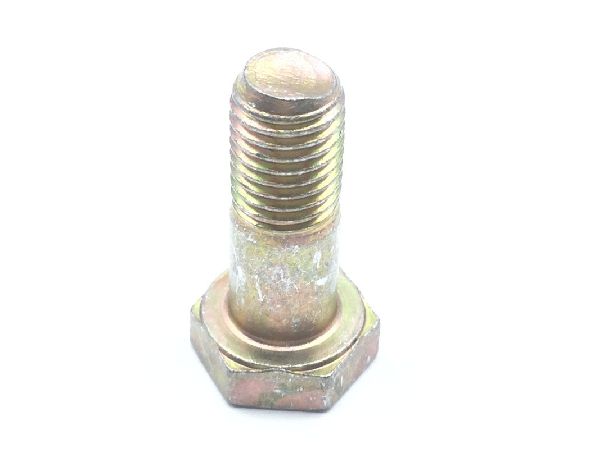

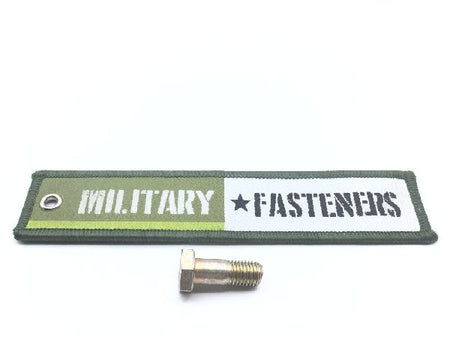

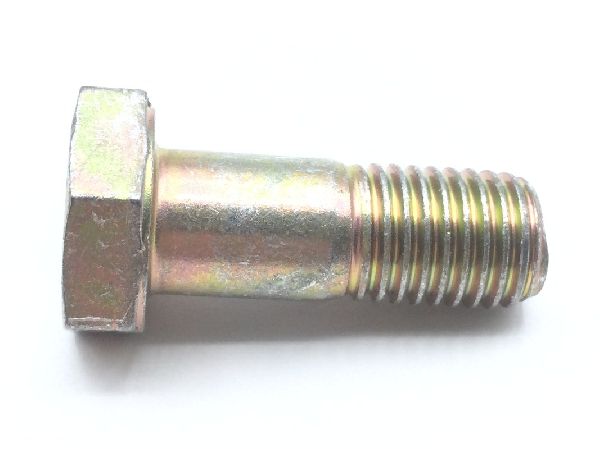

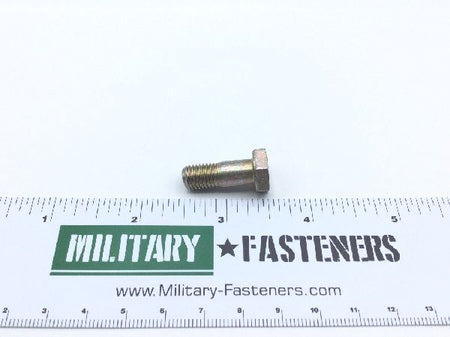

NAS1305-6 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: 0.844 inches
Grip Diameter: Between 0.3110 inches and 0.3120 inches
Grip Length: 0.375 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.156 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1305 professional/industrial association standard
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.469 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.492 inches and 0.502 inches
